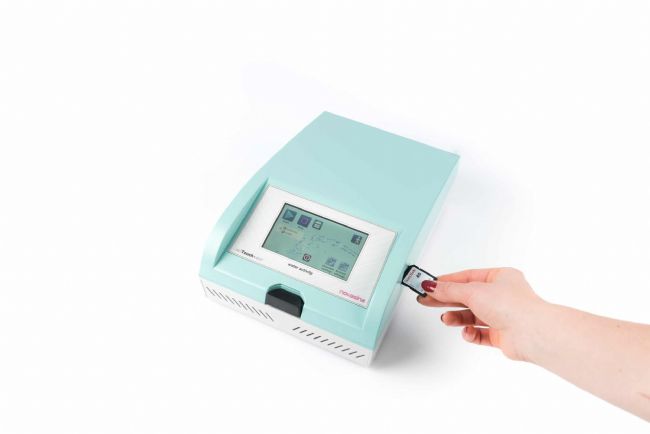

LabTouch-aw

Flexible and fast water activity meter with large touch screen. Easy to use, very well suited for AT-Line measurements in production or for the exact determination of AW-values in the QC-Lab.

Ideal for laboratory and production

aW measuring instrument for:

many samples, regardless of whether liquid, gel-like or solid
partial temperature regulation as well as integrated sample surface temperature measurement enable accurate and reproducible measurements
different measuring modes offer the user the possibility to carry out either a fast measurement on the production line or an exact AW determination for quality assurance of the products
ergonomic design and touch screen, it makes water activity measurement easier than ever before

Tech Specs

Meter Specifications	LabTouch-aw
Versions	CM-2 Sensor/ CM-3 Sensor
Measurement Specifications	parameter
Measurement Specifications	Water activity	Temperature
Measuring principle	Electrolytic	Surface IR and NTC
Measuring range	0.030…1.000aw	5…45°C (41…113°F)
Adjustment range	0.110…0.970aw	N/A
Resolution	0.001aw	0.1°C
Accuracy	+/-0.005aw within calibration range	+/-0.10°C
Precision	+/-0.003aw within the adjustment range	+/-0.1°C
Repeatability	+/-0.002aw within calibration range	N/A
Temperature control	Programmable measuring temperature in the range of 15…30°C (59…86°F)
Adjustment point (%rH)	11%, 33%, 53%, 58%, 75%, 84%, 90%, 97%
Mains connection	5 VDC, +/-6%, max. Power consumption 10W
Power supply	90…264 VAC 50/60 Hz
Display	4.3“ LC-colour display
Communication	> USB for PC / printer > SD/SDHC-card
Housing	> Two-part PC/ABS housing, weight: 2.8kg > Dimensions (L x W x H) = 200x285x105mm
Measuring chamber volume	15mL
Dimensions sample container	Diameter 30mm x height 14mm
Protection class	IP22
21CFR 11	partially compliant

Scope of Supply

Measuring instrument LabTouch-aw advanced
Euro or US marks adapte
SD Memory card 8 GB
4 SAL-T: 33, 58, 75, 84% rh
40 ePW sample dishes
5 x replacement prefilters white
Tension ring
Factory calibration certificate
Quick-Mode for fast measurement

Measuring cells:

You can choose between our CM-2 and CM-3 Measuring cell. Both cells are an interchangeable intelligent and factory-calibrated measuring system based on Novasina „Novalyte“ technology. The active heating prevents condensation on the moisture measuring element. Additionaly the CM-3 cell is not affected by alcohol (ethanol).

Novasina is a Swiss based company, with over 60 years of experience, which produces unique measuring devices. The water activity meters of Novasina are the most reliable on the market and are used in a wide range of industries worldwide. For more information visit www.novasina.ch.
