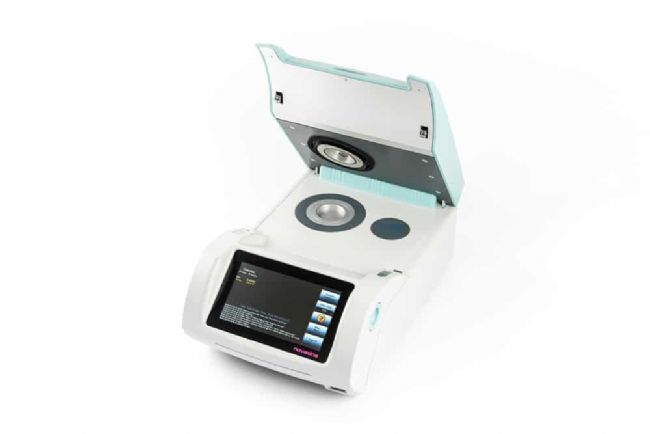

LabMaster-aw neo

Top water activity measuring device with technological lead, perfect for the daily routine determination of water activity in QA laboratories of food and pharmaceutical companies. This measuring instrument also provides support in the investigation of the causes of product spoilage, texture changes or rancidity.

THE talented all-rounder

Outstanding measuring instrument for effortless and worry-free water activity measurement and documentation, including:

21CFR11 compliant audit trail and user management
automatic verification or adjustment
contactless salt standard identification by RFID
fast mode that guarantees results within 10 minutes

Additional features:

full thermostatisation in the range of 0-60°C
measuring range from 0.0300-1.000aw
a simple protective filter handling by magnet fixing

Of course also conformable with AOAC, ISO, USP and other standards.

Tech Specs

Meter Specifications	LabMaster-aw neo
Versions	ENS/ELS
Measurement Specifications	parameter
Measurement Specifications	Water activity	Temperature
Measuring principle	Electrolytic	Surface infrared sensor
Measuring range	0.0300…1.0000aw*	0…60°C (32…140°F)
Adjustment range	0.0400…1.0000aw*	N/A
Resolution	0.0001aw	0.01°C
Accuracy	+/-0.0030aw within the adjustment range	+/-0.1°C
Precision	+/-0.0020aw within the adjustment range	+/-0.1°C
Repeatability	+/-0.0010aw within calibration reange	N/A
Temperature control	Programmable measuring temerature in the range of 0…60.00°C (32…140°F)
Adjustment point (%rH)	4%, 6%, 11%, 33%, 53%, 58%, 75%, 84%, 90%, 97%, 100% Salt standards are equipped with RFID chips to ensure error-free identification by the LabMaster-aw neo.
Mains connection	> 100… 260 VAC > Power consumption: > Maximum: 42W > Normal operation: < 15W > Stand-By: < 0.1W
Power supply	90…264 VAC 50/60 Hz
Display	7“ capacitive Touchscreen
Communication	> RS-232 and USB 2.0 for PC > RS-232 for printer Epson TM-U220D > SD card > XML to LIMS
Housing	> Hybrid of painted steel housing and PUR > Weight: approx. 10kg > Dimensions (LxWxH)= 423x260x186mm Height with open ceiling: 462mm
Measuring chamber volume	12mL
Dimensions sample container	Diameter 40mm x Höhe 13mm
Protection class	IP20
21CFR 11	> 21CFR11 compliant Audit Trail > 21CFR11 compliant user management

Scope of Supply

Measuring instrument LabMaster-aw neo
7 x SAL-T: 11,33,58,75,84,97 and 100 % rH
1 x service tool
40 x ePW sample dishes
Factory calibration certificate
SD Memory Card 8GB
power cable

Versions available with either aw-Sens ENS or ELS measuring cells:
The diffrence is that the ELS sensor won’t be affected by alcohol (ethanol).

Novasina is a Swiss based company, with over 60 years of experience, which produces unique measuring devices. The water activity meters of Novasina are the most reliable on the market and are used in a wide range of industries worldwide. For more information visit www.novasina.ch.
