- Plant canopy analyzer introduction:
The HLY-GC1 plant canopy measurement instrument can be widely used in agricultural production and scientific research. It is used for investigating canopy light energy resources, measuring light interception in plant canopies, and studying the relationship between crop growth and development, yield and quality, and light energy utilization. This instrument is used for measuring and recording photosynthetically active radiation (PAR) in the 400nm to 700nm wavelength range, with measurement values in micromoles per square meter per second (μmols㎡/s).

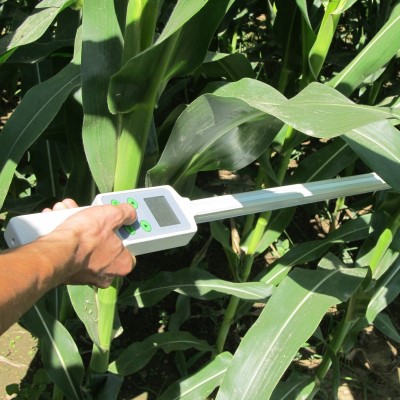

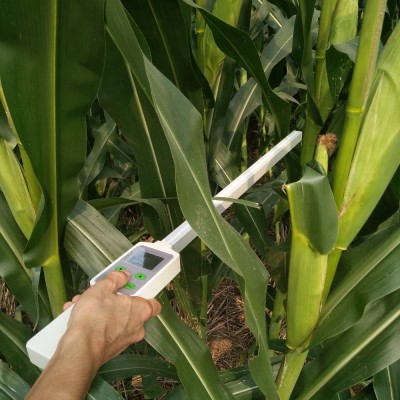

plant canopy analyzer is an integrated design, including a LCD display screen, operation buttons, storage SD card, and measuring probe. The instrument menu is easy to operate, small in size, and convenient to carry. The storage medium is a commonly used SD card in the market, with large storage capacity and convenient data management! There is a reasonable power management plan in terms of power consumption. During the testing process, the instrument automatically enters standby mode according to the actual situation. When needed, press the wake-up button to wake up the screen and observe the actual data. There are two measurement methods: automatic and manual. The minimum interval for automatic measurement is 1 minute, and the maximum number of automatic measurements is 99. Manual measurement can be collected manually according to actual needs.
Plant canopy analyzer Technical data:
Measurement range: 0-2700 μ mol ㎡/s
Resolution: 1 μ mol ㎡/s
Response time: 10 μ s
Automatic collection interval: 1-99 minutes
Automatic collection times: 1-99 times
Data storage capacity: 2GB (SD card)
Total length of the instrument: 75 cm
Probe length: 50 cm
Number of sensors: 25 (standard)
Power supply: 2 No. 5 batteries
Working environment: 0℃-60℃;
100% relative humidity
-
Wuhan Hanliny Technology Co., Ltd. is located in the Zhongnan International Building, Wuhan City, Hubei Province. The company is mainly engaged in research and development, production and sales of soil testing instruments, plant testing instruments and environmental testing instruments. It is a comprehensive technology enterprise integrating science, industry and trade. The main products include soil/fertilizer Nutritional Parameters, soil temperature and humidity meter, soil moisture meter, soil conductivity meter, soil salinity meter, soil moisture temperature and salinity meter, soil pH/Eh tester, soil three parameter tester, soil moisture station, soil drill, soil drill comprehensive suit, root drill suit, original soil sampler, etc.; photosynthetic instrument, Leaf transpiration rate meter, Plant respirometer, canopy analyzer, root scanning analysis system, chlorophyll meter, leaf area meter, stem strength meter, leaf thickness meter, etc.; weather station, handle weather station, greenhouse environmental station, greenhouse environmental recorder, temperature and humidity recorder, CO2 recorder, rainfall record Instrument, solar radiation recorder and other instruments.
The company's products are mainly used in agriculture, forestry, teaching, scientific research, meteorology, environment and other fields. It cooperates with many agricultural universities, scientific research institutions, agricultural extension stations, soil and fertilizer stations, agricultural and forestry bureaus, etc., and has been unanimously praised by customers. The company adheres to high-quality after-sales service, technical training for each sold instrument, regular return visit, Q & A, deeply trusted and supported by users.
Hanliny adheres to the concept of innovation and pragmatism, pursuit of excellence, sincerity and customer first, will adhere to the research and development of more advanced instruments and equipment, and serve customers with high-quality products, quality and preferential prices.
