Plant canopy imager introduction:
The plant canopy image analyzer adopts the principle of correlation between canopy porosity and canopy structure, and is used for the study of plant canopies at various heights. Fisheye lenses and CCD image sensors are used to obtain plant canopy images, and specialized analysis software is used to obtain relevant indicators and parameters of the plant canopy. By using fisheye lens imaging to measure plant canopy data, only one operation is required, simplifying the complex work of traditional measurement methods that require multiple measurements at fixed points per day. Moreover, using image method to measure canopy can actively avoid canopy gaps that do not comply with the calculated canopy structure parameters, as well as obstacles that do not comply with measurement calculations. This is the principle unanimously adopted by various canopy instruments around the world. Under the above principle, the plant canopy image analyzer adopts the method of analyzing and measuring the canopy porosity of the hemisphere image under the canopy, which is the most accurate, labor-saving, time-saving, and convenient method among various methods.

Plant canopy imager Features

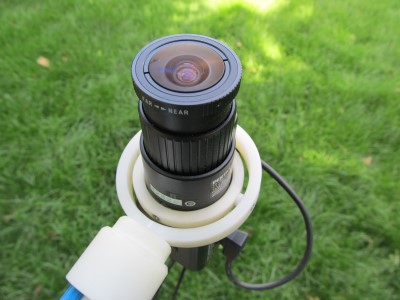

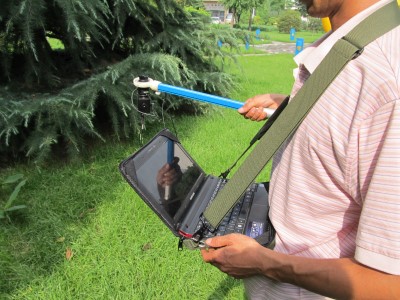

1. Fish eye lens can automatically maintain a horizontal state: a small fish eye camera lens specially designed for measuring plant canopy structure is installed on a handheld universal balance joint, which can automatically maintain the lens in a horizontal state without the need for a tripod;

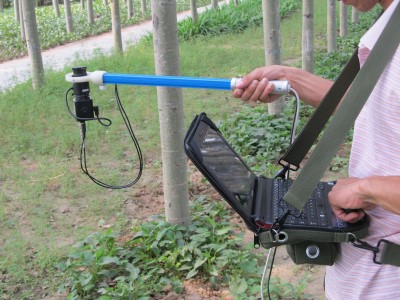

2. Fisheye lenses can be extended into the canopy: the lens is installed at one end of the rocker arm, and due to its small size and measuring rod, it can be easily extended horizontally or vertically to different heights of the canopy for rapid layered measurement, measuring the vertical distribution of light transmittance and leaf area index within the population;
3. Image analysis software: Image analysis software can define any image analysis area (zenith angle can be divided into 10 zones, azimuth angle can be divided into 10 zones);
4. Can block unreasonable canopy parts: When conducting regional analysis of canopies in different directions, it is possible to arbitrarily block ground features and unreasonable canopy parts (such as missing plants, edge row problems, etc.). The selection of starting and ending angles for different zenith angles can avoid canopy pore conditions that do not comply with the calculation of canopy structure parameters. By manually adjusting the threshold, parameters such as leaf area index can be measured more accurately;
5. Optional GPS positioning function.

Parameters
1、leaf area index
2、Average inclination angle of blades
3、Sky scattered light transmittance
4、Plant canopy direct radiation transmittance at different solar altitude angles
5、Extinction coefficient of canopy at different solar altitude angles
6、Directional distribution of leaf area density

Plant canopy imager​ Technical data
Camera angle: 150 °
Resolution: 640 × 480pix
Measurement range: The zenith angle can be divided into ten regions from 0°to 75°(150 °fisheye lens), and the azimuth angle of 360°can also be divided into ten regions
PAR sensing range: sensing spectrum from 400nm to 700nm
Measurement range: 0-2000 μ mol/㎡• S
Analysis software: Plant canopy analysis system
Power supply: 8.4V rechargeable lithium battery pack
Probe size: diameter 6cm, height 10cm
Total weight: 500 grams (excluding laptop)
Transmission interface: USB
Working temperature: 0-55 ℃
