Plant respiration analyzer
Plant respiration analyzer
Place of Origin:
  • Product Detail
  • Company Profile
    Product introduction:

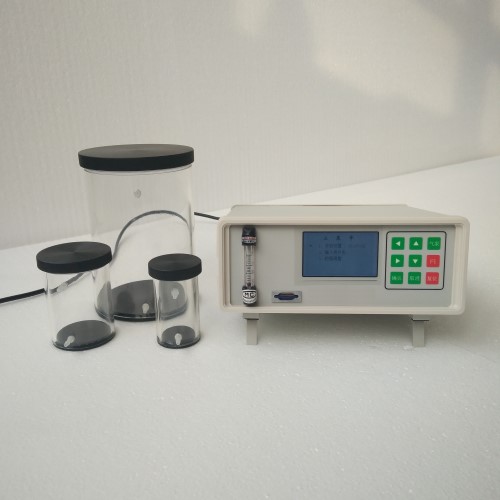

    The plant respiration analyzer can be used to measure the respiration intensity of fruits and vegetables under normal temperature, cold storage, controlled atmosphere storage, supermarket freezer and other storage conditions. The instrument can choose different volume of breathing chamber according to the size of fruits and vegetables, and can simultaneously measure the CO2 concentration, O2 concentration, temperature and humidity in the breathing chamber; it can use two breathing expression methods: CO2 concentration and O2 concentration. It is suitable for food, horticulture, fruits, vegetables, foreign trade and other schools, research institutes, companies and enterprises to determine the respiratory intensity of fruits and vegetables.
    1. Chinese LCD 160 × 256 dot matrix, simple operation and clear interface.
    2. Large Capacity SD card is used to store data, which has large storage capacity and easy export.
    3. It is equipped with special software to calculate respiratory intensity, so that users can quickly calculate the results.
    4. Needle type flow control valve is adopted to make gas flow regulation more stable.
    Technical data:
    CO2 detection
    Detection principle: Infrared
    1. Minimum measurement range: 0-5000ppm
    2. Linearity: ≤± 1% F.S
    3. Repeatability: ≤± 1%
    4. Response time: ≤ 15s
    5. Zero drift: ≤± 2% f.s/24h
    6. End point drift: ≤± 2% f.s/24h
    O2 detection
    Detection principle: electrochemical type
    1. measurement range: 0-100%
    2. linearity: ≤ ± 2% F.S
    3. Repeatability: ≤± 1%
    4. response time: 30s
    5. Zero drift: ≤± 2% f.s/24h
    6. End point drift: ≤± 2% f.s/24h
    Temperature detection Humidity detection
    Measurement range: - 20-95 ℃
    Resolution: 0.1 ℃
    Accuracy: ± 0.2 ℃ Measurement range: 0-100%
    Resolution: 0.1%
    Accuracy: ± 0.2% F.S
    Power supply: AC110V---220V ± 10%
    Breathing room size:
    1. The inner diameter is 40mm, the clear space is 80mm, and the volume is 0.1L
    2. The inner diameter is 60mm, the clear space is 89mm, and the volume is 0.25L
    3. The inner diameter is 120mm, the net space is 180mm, and the volume is 2L
    Wuhan Hanliny Technology Co., Ltd. is located in the optical valley high tech Zone, Wuhan City, Hubei Province. The company is mainly engaged in research and development, production and sales of soil testing instruments, plant testing instruments and environmental testing instruments. It is a comprehensive technology enterprise integrating science, industry and trade. The main products include soil/fertilizer Nutritional Parameters, soil temperature and humidity meter, soil moisture meter, soil conductivity meter, soil salinity meter, soil moisture temperature and salinity meter, soil pH/Eh tester, soil three parameter tester, soil moisture station, soil drill, soil drill comprehensive suit, root drill suit, original soil sampler, etc.; photosynthetic instrument, Leaf transpiration rate meter, Plant respirometer, canopy analyzer, root scanning analysis system, chlorophyll meter, leaf area meter, stem strength meter, leaf thickness meter, etc.; weather station, handle weather station, greenhouse environmental station, greenhouse environmental recorder, temperature and humidity recorder, CO2 recorder, rainfall record Instrument, solar radiation recorder and other instruments.
    The company's products are mainly used in agriculture, forestry, teaching, scientific research, meteorology, environment and other fields. It cooperates with many agricultural universities, scientific research institutions, agricultural extension stations, soil and fertilizer stations, agricultural and forestry bureaus, etc., and has been unanimously praised by customers. The company adheres to high-quality after-sales service, technical training for each sold instrument, regular return visit, Q & A, deeply trusted and supported by users.
    Hanliny adheres to the concept of innovation and pragmatism, pursuit of excellence, sincerity and customer first, will adhere to the research and development of more advanced instruments and equipment, and serve customers with high-quality products, quality and preferential prices.
