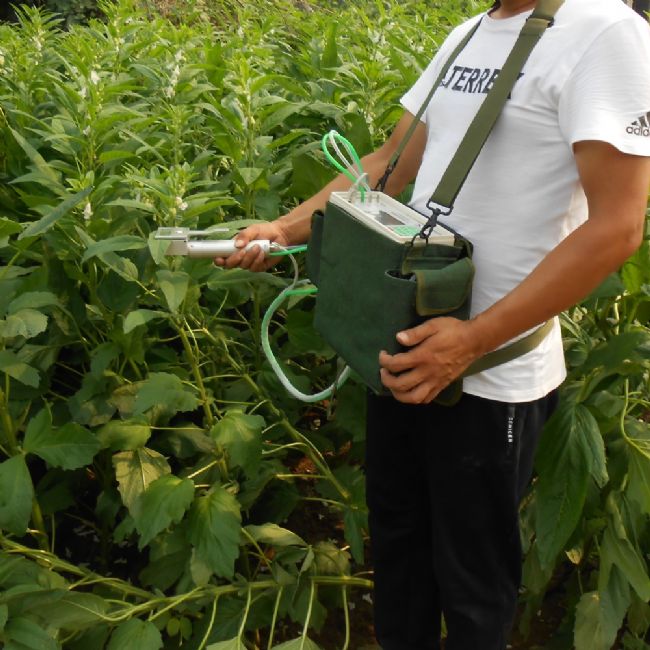

Portable photosynthetic instrument
Portable photosynthetic instrument
Place of Origin:
  • Product Detail
  • Company Profile

    Product introduction:
    Hly-EXGH2 can measure CO2 concentration, air temperature, leaf temperature, air humidity, leaf chamber humidity, photosynthetically active radiation intensity and other factors by open circuit measurement and closed circuit measurement, and calculate the photosynthetic rate, transpiration rate, intercellular CO2 concentration, stomatal conductance, water use efficiency and other indicators of plants. HLY-GH2 plant photosynthesis instrument has a wide application prospect in many professional experimental courses, such as biology, agronomy, horticulture, forestry, insects, microorganisms, animals and so on.


    1. Multi function: simultaneous determination of photosynthetic rate, transpiration rate, intercellular carbon dioxide concentration, stomatal conductance and water use efficiency, as well as carbon dioxide concentration, air humidity, leaf room humidity, photosynthetically active radiation, air temperature, leaf temperature and other indicators;

    2. Intelligent: multi information Chinese menu display and cursor guided operation, real-time display and storage of measurement process and final results on screen;

    3. Easy to carry: small size, light weight, portable, single person operation.



    1. Non diffusion infrared CO2 analysis

    2. Photosynthetically active radiation (PAR)

    3. Blade temperature

    4. Leaf chamber humidity

    5. Air temperature

    6. Air humidity

    7. Photosynthetic rate

    8. Transpiration rate

    9. Intercellular CO2 concentration

    10. Stomatal conductance

    11. Water use efficiency

    Technical data:
    1. CO2 analysis: non diffusion infrared CO2 analysis

    Measurement range: 0-2000 μ mol / mol / 0-1500 μ mol / mol, optional

    Resolution: 0.1 μ mol / mol

    Accuracy: ± 3 μ mol / mol

    2. Air temperature: high precision digital temperature sensor imported from Switzerland

    Measurement range: - 20-60 ℃

    Resolution: 0.1 ℃

    Accuracy: ± 0.2 ℃

    3. Blade temperature: German Holly's high precision platinum resistor

    Measurement range: 0-60 ℃

    Resolution: 0.1 ℃

    Accuracy: ± 0.2 ℃

    4. Air humidity: high precision digital humidity sensor imported from Switzerland

    Measurement range: 0-100%

    Resolution: 0.1%

    Accuracy: ≤± 3%

    5. Chamber humidity: high precision digital humidity sensor imported from Switzerland

    Measurement range: 0-100%

    Resolution: 0.1%

    Accuracy: ≤± 3%

    6. Photosynthetically active radiation (PAR): silicon photocell with correction filter

    Measurement range: 0-3000 μ molm ^ / S

    Accuracy: ± 5%

    Response wavelength range: 400 ~ 700nm

    7. Flowmeter: micro electronic flowmeter

    Measurement range: 0-1.0 L / min

    Resolution: 0.01l/min

    Accuracy: 3%

    8. Blade chamber size: standard blade chamber size 55 × 20mm, other sizes can be customized according to customer demand. After sandblasting and oxidation treatment, the surface of blade chamber is smooth and beautiful.

    9. Host parameters:

    Working environment: temperature: 0 ℃ - 50 ℃

    Relative humidity: 0-100% (no water vapor condensation)

    Power supply: dc7.4v lithium battery, can work continuously for 12 hours

    Data storage: 2GB SD card

    Display: 320 × 240 dot matrix, Chinese interface

    Volume: 260 × 260 × 130mm

    Weight: 3.5kg;


    Optional accessories:

    Type I (20 × 20 mm, window area 4 cm 2), type II (55 × 10 mm, window area 5.5 cm 2),and type II (55 × 10 mm, window area 5.5 cm 2);

    Type III (φ 11.3mm, window area 1cm2)

    Light source: plug in LED red and blue light source, light intensity range: 0-3000 μ molm ^ / s,

    Any light intensity value can be set manually and automatically

    GPS positioning: it can display and save the longitude and latitude of the survey site in real time

    Group assimilation chamber: Volume: 2 liters. Other sizes can be customized

    Soil respirator: Volume 1.4 L. Other sizes can be customized
