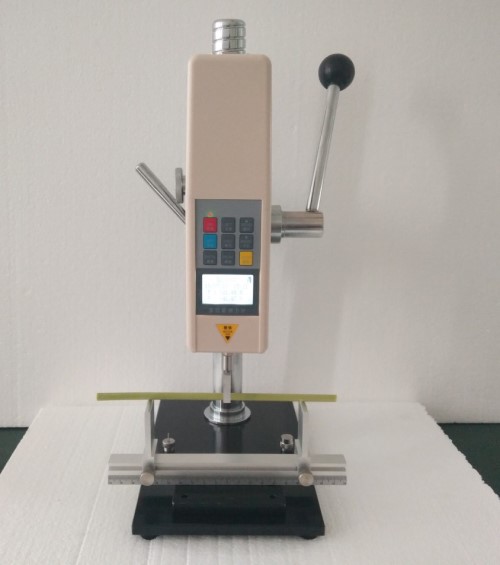

- Plant Stem Strength Tester Product introduction:
The plant stem strength tester mainly uses pressure sensors to detect the bending, compressive strength, puncture strength, etc. of the stem. The strength of the stems of corn, sorghum, tobacco, and other crops is usually a major factor determining their ability to resist lodging. Over the long term, lodging of corn, sorghum, and tobacco has caused great difficulties in mechanized harvesting of such crops. With the current level of mechanized harvesting, it will result in a large amount of crop waste. In addition, corn lodging can lead to insufficient light, greatly limiting its yield. The HLY-JG2 plant stem strength tester can quickly measure the strength of plant stems and store the data, which can be directly imported into a computer. This instrument is suitable for agricultural genetic breeding.
Plant Stem Strength Tester Product Features
1. Can connect to a computer, save and print, perform various analyses, input speed and area, and display parameters such as displacement and pressure;
2. Extra large memory storage function: capable of storing 5000 test values; Save the testing time, date, and sample number;
3. Large screen LCD display: with backlight function (suitable for nighttime use), and with screen digital forward and reverse functions;
4. Automatic shutdown time setting: The automatic shutdown time can be set to automatically shut down within 10 minutes to 90 minutes;
5. Battery capacity display: divided into 3 grids, 2 grids, and 1 grid. When the battery level is too low, the instrument will automatically shut down.
6. Three different probes: capable of measuring stem bending performance, stem compressive strength, and stem tissue structure (puncture) strength;
Plant Stem Strength Tester Technical data:
2、Maximum load: 500N (N, Kg, and lb units can be automatically converted);
3、Resolution: 0.01N;
4、Accuracy: ± 0.5%;
5、Power Supply: Charging Power Supply: 220V/AC; Continuous working time of battery: 4-6 hours;
6、Stability: Temperature drift: 0.2uV/℃ (0-60 ℃); Zero drift: ≤ 0.1%/8h/FS;
7、Calibration range: full-scale calibration;
8、Environmental temperature: 0~+60 ℃;
9、Environmental humidity: ≤ 80%;
10、Allowable overload: 150%;
-
Wuhan Hanliny Technology Co., Ltd. is located in the Zhongnan International Building, Wuhan City, Hubei Province. The company is mainly engaged in research and development, production and sales of soil testing instruments, plant testing instruments and environmental testing instruments. It is a comprehensive technology enterprise integrating science, industry and trade. The main products include soil/fertilizer Nutritional Parameters, soil temperature and humidity meter, soil moisture meter, soil conductivity meter, soil salinity meter, soil moisture temperature and salinity meter, soil pH/Eh tester, soil three parameter tester, soil moisture station, soil drill, soil drill comprehensive suit, root drill suit, original soil sampler, etc.; photosynthetic instrument, Leaf transpiration rate meter, Plant respirometer, canopy analyzer, root scanning analysis system, chlorophyll meter, leaf area meter, stem strength meter, leaf thickness meter, etc.; weather station, handle weather station, greenhouse environmental station, greenhouse environmental recorder, temperature and humidity recorder, CO2 recorder, rainfall record Instrument, solar radiation recorder and other instruments.
The company's products are mainly used in agriculture, forestry, teaching, scientific research, meteorology, environment and other fields. It cooperates with many agricultural universities, scientific research institutions, agricultural extension stations, soil and fertilizer stations, agricultural and forestry bureaus, etc., and has been unanimously praised by customers. The company adheres to high-quality after-sales service, technical training for each sold instrument, regular return visit, Q & A, deeply trusted and supported by users.
Hanliny adheres to the concept of innovation and pragmatism, pursuit of excellence, sincerity and customer first, will adhere to the research and development of more advanced instruments and equipment, and serve customers with high-quality products, quality and preferential prices.
