- Plant nutrition analyzer Product introduction:
The growth of plants cannot be separated from various nutrients, so we apply various fertilizers to plants, among which nitrogen fertilizer is the most common fertilizer. Too little fertilizer applied, insufficient nutrition required by plants; Applying too much fertilizer can cause waste of fertilizer and even lead to groundwater pollution. By measuring the relative content of chlorophyll, it is possible to truly understand the demand of plants for nitrogen fertilizer, thereby providing an efficient utilization of nitrogen fertilizer and protecting water sources from excessive nitrogen pollution. The water status of plants directly reflects their growth. Research has shown that leaf air temperature difference (the difference between leaf surface temperature and air temperature) can effectively reflect the water balance of plants. In addition, there have been many studies on the influence of environmental temperature on important growth processes such as plant flowering. To further reveal the coupling mechanism between plants themselves and environmental temperature, it is necessary to measure the "body temperature" of plants.

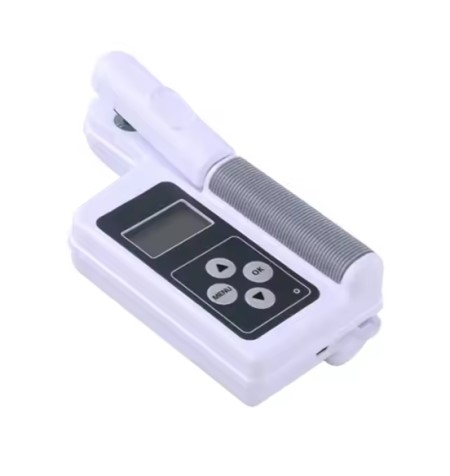

HLY-SPAD MUTI4 is a measuring instrument that integrates four parameters of plant chlorophyll, nitrogen, leaf temperature, and leaf humidity. Chlorophyll and nitrogen measurements use two LED light sources to emit two types of light, one is red light (peak wavelength 650nm) and the other is infrared (940nm). The two types of light penetrate the leaves and reach the receiver. The light signal is converted into an analog signal, which is amplified by an amplifier and converted into a digital signal by an analog/digital converter. The digital signal is processed by a microprocessor to calculate the value and displayed on the display screen. The blade temperature sensor adopts a high-precision thermocouple temperature sensor, which can quickly measure the temperature of live blades. HLY-SPAD MUTI4 is an economical and practical measuring instrument, characterized by a reasonable structure, simple operation, and large data storage capacity.
Plant nutrition analyzer Product features::
1. Rapid and non-destructive live plant detection without affecting plant growth.
2. Multi parameter rapid one-time measurement: simultaneously measure the chlorophyll, nitrogen, leaf temperature, and leaf surface humidity of plants in one operation, and display them in real-time.
3. Various parameters are displayed and stored on the same screen simultaneously.
4. Measurement data can be connected to a computer to export it, facilitating plant nutrient management and analysis.
5. Data saved in the host will not be lost after an unexpected power outage.
6. Historical data viewing, which can be viewed in sequence or redirected. For historical data, it can be deleted one by one or all with just one click.
7. Powered by lithium batteries with backlight function.
8. One click switching between Chinese and English.
Plant nutrition analyzer Technical data:
Chlorophyll range: 0.0-100.0SPAD
Measurement accuracy: Within ± 1 SPAD unit (at room temperature, SPAD values range from 0 to 50)
Repeatability: Chlorophyll: Within ± 0.3 SPAD units (SPAD values range from 0 to 50)
Nitrogen range: 0.0-99.9mg/g
Measurement accuracy: ± 5%
Repeatability: ± 0.5 units
Leaf surface humidity: 0.0-99.9RH%
Measurement accuracy: ± 5%
Repeatability: ± 0.5 units
Leaf surface temperature: -10-99.9 ℃
Measurement accuracy: ± 0.5 ℃
Repeatability: ± 0.2 ℃
Measurement area: 2mm * 2mm
Measurement time interval: less than 3 seconds
Data storage capacity: 32KB
Power supply: 4.2V rechargeable lithium battery
Battery capacity: 2000mah
Weight: 200g
Working and storage environment: -10 ℃~50 ℃ ≤ 85% relative humidity
-
Wuhan Hanliny Technology Co., Ltd. is located in the Zhongnan International Building, Wuhan City, Hubei Province. The company is mainly engaged in research and development, production and sales of soil testing instruments, plant testing instruments and environmental testing instruments. It is a comprehensive technology enterprise integrating science, industry and trade. The main products include soil/fertilizer Nutritional Parameters, soil temperature and humidity meter, soil moisture meter, soil conductivity meter, soil salinity meter, soil moisture temperature and salinity meter, soil pH/Eh tester, soil three parameter tester, soil moisture station, soil drill, soil drill comprehensive suit, root drill suit, original soil sampler, etc.; photosynthetic instrument, Leaf transpiration rate meter, Plant respirometer, canopy analyzer, root scanning analysis system, chlorophyll meter, leaf area meter, stem strength meter, leaf thickness meter, etc.; weather station, handle weather station, greenhouse environmental station, greenhouse environmental recorder, temperature and humidity recorder, CO2 recorder, rainfall record Instrument, solar radiation recorder and other instruments.
The company's products are mainly used in agriculture, forestry, teaching, scientific research, meteorology, environment and other fields. It cooperates with many agricultural universities, scientific research institutions, agricultural extension stations, soil and fertilizer stations, agricultural and forestry bureaus, etc., and has been unanimously praised by customers. The company adheres to high-quality after-sales service, technical training for each sold instrument, regular return visit, Q & A, deeply trusted and supported by users.
Hanliny adheres to the concept of innovation and pragmatism, pursuit of excellence, sincerity and customer first, will adhere to the research and development of more advanced instruments and equipment, and serve customers with high-quality products, quality and preferential prices.
