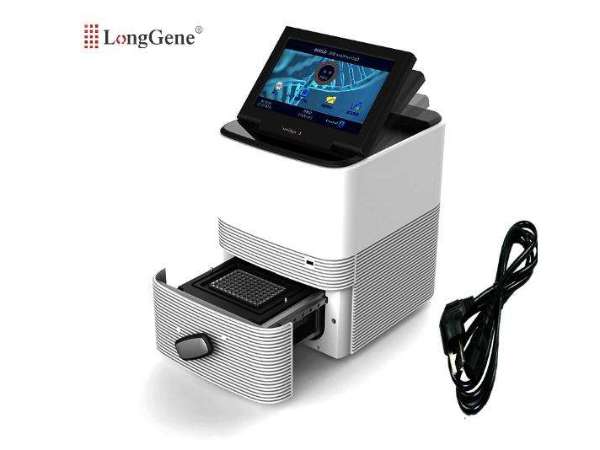

- Q2000B Real-Time qPCR System
- Product Detail
- Company Profile
| Product Adventages |
| 1、Leading Pettier Elements from MARLOW,ensure long life of 1,000,000 thermal cycles and fast ramping rate up to 6℃/S。 |
| 2、T-opticalTM technology,reduce background noise,improve fluorescence signal sensitlvity and singnal to noise ratio. |
| 3、The angle of display could be adjusted to the best view. |
| 4、Simultaneous detection of wells,not in sequence. |
| 5、Users could view qPCR process and run PCR protocol through self-contained 10"TFT LCD and touch screen. |
| 6、Innovative SSLPTM CCD imaging technology for qPCR,avoiding more moving parts problems like overheat,wear and off center.Not optical fiber based, avoiding break and block by dust. |
| 7、Long life LED lamps to excite fluorescence ,no need for replacement in the future. |
| 8、Sample wells with temperature gradient function, convenient to optimize PCR conditions |
| 9、Equipped with LongGene's "Optimun qPCR Design& Analysis Software" for remote operation of instruments and analysis of results. |
| 10、The drawer design of sample block,makes it easier to plck and place PCR tubes and plates |
| 11、LongGene's "Optimun qPCR Design& Analysis Software" could be upgraded for free. |
| Product Parameters | |
| Instrument Performance | |
| Sample Block Capacity | 96wells*0.1ml |
| Reaction Volume | 10-50ul |
| Tubes Option | White PCR tubes or strips or 96well PCR piate,with optical flat cap |
| Heating&Cooling Technology | Peltier technonlong allow1,000,000 thermal cycles |
| Control Methods | Operated via PC or self-contaiend touch screen on instrument |
| Language | English |
| Communications | USB2.0 or LAN |
| Display | 10"Colcr TFT LCD and Touch Screen,view angle adjustable |
| Max.Number of programs | Max.15,000 programs onboard,unlimited storage of pretocols with USB flash drive |
| Certified | CE-IVD/Non CE-IVD |
| Temperature | |
| Block Temp.Range | 0~105℃ |
| Max.Heating Rate | 6℃/sec |
| Max.Cooling Rate | 5℃/sec |
| Temp.Uniformity | ≤±0.2℃ （at 90℃） |
| Temp.Accuracy | ≤±0.1℃ (at 90℃) |
| Display Resolution | 0.1℃ |
| Heat Lid Temp.Rage | 30℃~120℃ |
| Gradient Range | 30℃-100℃ |
| Temp.differential Range | 1℃-42℃ |
| Fluorescence Detection | |
| Excitation | Long life LED lanps |
| Detection | CCDs |
| Dynamic Range | 1-1010 |
| Sensitivity | ≥1 copy |
| Calibrated Dyes at installation | F1：FAM/SYBR Green |
| F2：VIC/HEX/JOE/CY3/TET*(★ Reserved) | |
| F3：ROX/ TEXAS-RED/TAMRA*(★Reserved) | |
| F4：CY5/Quasar670 | |
| Fluorescence Excitation Range | 300-800nm |
| Fluorescence Detection Range | 500-800nm |
| Date Export Formats | TXT，PDF，WORD，Excel |
| Other Features | |
| AC Power Supply | 100-240V,50-60Hz |
| Consupmtion | 600W |
| Net Weight | 13kg |
| Dimension(L*W*H) | 334*280*365mm |
| Computer Operating Systems | Windows10、Windows7、WindowsXP |
-
Suzhou Alpha Biological Laboratory Equipment Co. , Ltd. was established in 2008, located in Suzhou Park Biological Nanometer Park (Biobay) a 5 building, room 301. The Management Team of the company is dedicated to the scientific instrument industry for 12 years.
With professional technical team and perfect after-sales service system, it has provided more than 300 laboratories with high-quality products and services, it covers 13 groups such as universities, medical institutions, testing centers, scientific research institutions and pharmaceutical enterprises.
Acting Laboratory equipment mainly includes vibration incubator, PCR instrument, Pipette, Bioreactor, fermentation tank, Pipette, ultra-low temperature refrigerator, medical refrigerator, liquid nitrogen tank, high-pressure sterilizer, ultra-pure water machine, balance, centrifuge, etc. . Manufacturers licensing including Chu Instruments, Langki, Zhongke Meiling, Mettler, Le Feng, Bo Lu, NEST, Tiangen, Aosheng and many other well-known brands. As well as providing excellent products, we also provide you with consumable reagents commonly used in biological laboratories, as well as services such as whole relocation of laboratories, third-party testing, metrology and calibration, second-hand instrument dispensing, etc. . The complete one-stop laboratory experience makes your choice more convenient, fast and flexible.
Alpha value-added services: free sample experience, free sample trial, free installation guidance, free technical guidance.
Alpha biology, help life science research! Let your experiment run smoothly without any worries!
