1. Brief Introduction:

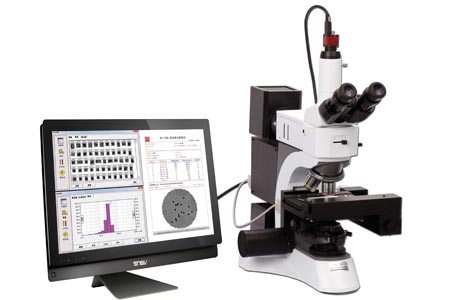

The BeVision M1 is an automated image scanning system for filter paper cleanliness analysis. Equipped with metallurgical microscope, programmable motorized platform, autofocus function and high resolution CCD camera, BeVision M1 can capture and recognize each individual particle and automatically stitch the images to a panorama.
2. Features:
• Measuring range: Particle size and shape: 1 - 10,000 µm
• Panorama: Systematically steps and scans defined areas, capturing images at every step interval. The software seamlessly stitches captured images into a high resolution panorama
• Particle size and shape analysis: Particle size distribution, D100, aspect ratio, circularity and radiusthickness ratio.
3. Specifications:
| Size Range |
1-10000 um |
| Repeatability error |
≤1% (CRM D50) |
| Accuracy error |
≤1% (CRM D50) |
| Magnifying times |
30-1000 times |
| Imported high speed CCD |
120 frm/s |
| Particle recognition speed |
≥10000 particles /min |
| Scanning range |
the diameter can be reached 55mm |
| Testing time |
≤10 minutes |
| Missing detecting rate |
≤3% ( the particles with size above 10um can be all detected without missing.) |
| Metal particle recognition accuracy rate |
>90% |
| Fiber particle recognition accuracy rate |
>92% |
4. Packing
1. Use thickened cartons;
2. There are thick foam board and buffer air bags inside the carton to protect the instrument.
3. Use wooden cases made by the plywood outside the carton to further protect the instruments;
4. After the product is packed, we will carry out the package drop test to further ensure the safety of the instrument for long distance transportation.
