Brief Description

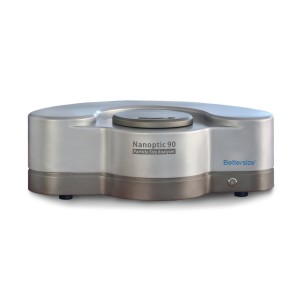

Nanoptic 90 is a nano-particle analyzer based on dynamic light scattering technology for analyzing nano sized materials. Nanoptic 90 can measure sizes down to 1nm. The high-power laser light source and high sensitivity PMT provide rapid and accurate testing results.

Features
- Adopting the internationally accepted principle of dynamic light scattering, the hardware correlator has 1000 channels to receive dynamic light scattering signals through the imported photomultiplier tube, with high sensitivity, repeatability and accuracy.
- High power semiconductor laser is used with stable light and long service life.
- Temperature control range is 15-90 ℃, and the temperature error is ≤0.5℃. Temperature control system is suitable for the 4 ml and 1 ml sample cell, ensuring accurate and reliable test results.
- Molecular weight measurement of polymer materials: the molecular weight can be obtained by measuring the light intensity of four solutions with different concentration by light scattering method. The operation is simple and the results are accurate and reliable.

Parameters

-Measurement Range: 1-9500 nm
-Repeatability Error: ≤1%
-Accuracy Error: ≤1%
-Volume of Sample Cell: 4 ml & 1 ml
-Molecular Weight Range: 1-20kDA
-Temperature Control Range of Sample Cell: 15℃-90℃
-Laser Light Source:Solid State Optical Fiber Laser
-Scattering Angle: 90°
-Detector: PMT (photomultiplier)
-Computer Interface: USB 2.0 or 3.0
-Correlator: 1000 physical channels
-Environmental Requirement: Temperature19-90℃;Humidity0-95%, no condensing
-Operating System: Win XP / Win 7/ Win 8/ Win 10
-Voltage: AC 220V , 50/60 Hz
-Dimension, Weight: 490 mm x 310 mm x 230 mm , 14 kg

Packing

1. Use thickened cartons;
2. Thick foam board and buffer air bags are to protect the instrument.
3. Use wooden cases made by the plywood outside the carton to further protect the instruments;
4. After the product is packed, we will carry out the package drop test to further ensure the safety of the instrument in long distance transportation.

Our Services

Within One Year Warranty:
1.Free spare parts.
2.Send engineer to maintain (User pay the round-trip tickets).
3.Send back to maintain (Both sides share the freight fee).
Out of Warranty:
1. If there is any damage resulting from misuse or out of warranty, the two sides negotiate the site & method of maintenance. Buyer pays the expense.
2.Consumable items are not guaranteed.
