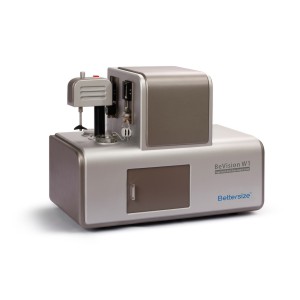

BeVision W1 is a high resolution dynamic image particle size and shape analysis system. By using sheath flow technology, BeVision W1 can capture each individual particle and deliver accurate and reliable particle images. BeVision W1 is the best solution for scientific research and quality control as well, when particle size and shape analysis is required.

Features
- Analysis: particle size distribution, maximum particle size, content for a specific interval, aspect ratio, circularity and radius-thickness ratio.
-Sheath flow technology ensures that each individual particle passes through the focal plane of the cell sequentially, eliminates particle overlapping and defocus issues.
- Intelligent software can identify 10000 particles per minute. Automatic recognition of agglomerated powder further improve the accuracy of analysis.

Parameters

-Measurement Range: 4-400 µm
-Repeatability Error: ≤1%
-Accuracy Error: ≤1%
-Particle Recognition Speed: ≥10000 particles/min
-Imported High Speed CCD: 120 frm/ s
-Analytical Items:
(1) particle size: including particle size distribution, typical data, maximum particle size,particle contents for a specific interval, particle contents above or below certain particle size ;

(2) particle shape : aspect ratio, circularity, particle images ;

(3) particle counting: measure the number of particles in a certain volume of liquid.
-Export Items: including the original parameter(such as sample information, testing information,etc.), analytical data ( including the particle size distribution, aspect ratio, circularity, and typical data, etc), distribution graphics ( such as interval distribution histogram, cumulative distribution curves, etc.)
-Voltage: AC 220 V, 50/60 Hz
-Dimension, Weight: 610 mm x 300 mm x 450 mm, 22 kg

Packing:

1. Use thickened cartons;
2. Thick foam board and buffer air bags are used inside of the carton to protect the instrument.
3. Use wooden cases made by the plywood outside the carton to further protect the instruments;
4. After the product is packed, we will carry out the package drop test to further ensure the safety of the instrument for long distance transportation.

Our Services:

Within One Year Warranty:
1.Free spare parts.
2.Send engineer to maintain (User pay the round-trip tickets).
3.Send back to maintain (Both sides share the freight fee).
Beyond One Year:
1. If there is any breakdown resulting from misuse or out of warranty, the two sides should  negotiate dor the site & method of maintenance. Buyer pays the expense.
2.Consumable items are not guaranteed.
