Laboratory Furniture
Wood Lab Furniture with Frame

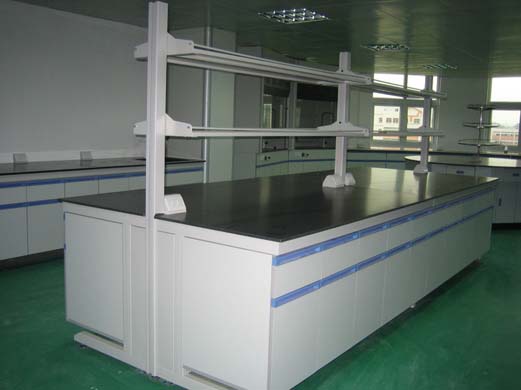

JH-WF001 Wood centre bench with steel frame
Specification:
Product name: Wood wall bench with steel frame
Type: JH-WF001
A. Metal frame:
1. Material for upright frame: it's made of 60x40x1.5mm steel pipe by welding, it's with epoxy resin powder after acid-washing and phosphorization.
2. Connection wing: solid plastic parts or welded steel parts on C-frame itself. It depends on customer's requirement.
3. Ajustable feet: Using M10 screws(treated by galvanization) with adjustable height not less than 10mm.
B. Worktop: 16mm phenolic resin worktop or 19mm epoxy resin worktop which are resistant for chemicals and high temperature. The worktops can be washed easily. The worktop can bear the weight about 200-300kg. The gap height between worktops≤2mm.
C. Cabinet:
1. Door: The material is E1 standard 18mm chipboard, MDF with melamine or plywood with HPL with 2mm PVC water proof edgings.
2. Side panel and layer panel: The material is E1 standard 18mm chipboard,MDF with melamine or plywood with 2mm PVC water proof edgings.
3. Back panel: The material is E1 standard 18mm chipboard, MDF with melamine or plywood with 2mm PVC water proof edgings. The back panel can be dissembled and it's convenient for installation and maintain of pipe and electricity cable.
4. Drawer: The material is E1 standard 18mm chipboard, MDF with melamine or 18mm plywood with PVC water proof edgings.
5. Drawer sliding rail: Using steel 3-joints weight bearing sliding rail without noise on both of drawer.
6. Handle: Using stainless steel U-type specialized handle in lab or long aluminum alloy grab handle.
7. Hinge: 304 stainless steel hydraulic hinge.
