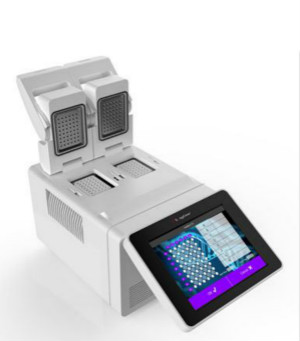

- T20(Dual-Block)
- Product Detail
- Company Profile
| Product Adventages |
| 1、2 Individual sample blocks allow 2 protocols running independently. |
| 2、10”TFT Full Color touch screen,with wide viewing angles. |
| 3、New generation Peltier technology ,allowing 1,000,000 run cycles. |
| 4、New generation Peltier technology ,with ramping rate more than 7.5℃/s. |
| 5、New lever-style heat lid to up the lid pressure automatically,ensuring even pressure during running of protocol. |
| Product Parameters | |
| Sample Block | 2blocks 48 wells |
| 0.2 ml PCR tube,strip with flat ＆dome cap | |
| Heating&Cooling Technology | New generation Peltier technology allow 1,000,000 cycles |
| Display | 10”Full Color Touch Screen with adjustable angle, and real-time graphical display |
| Language | English |
| USB flash drive Function | Unlimited storage of protocols with USB flash drive;Back-up user’s data |
| Communication Ports | USB 2.0 & LAN |
| TEMPERATURE | |
| Block Temp.Range | 0℃－105℃ |
| Max.Heating Rate | 7.5℃/s |
| Max.Cooling Rate | 6℃/s |
| Temp.Uniformity | ≤±0.2℃(at90℃) |
| Temp.Accuracy | ≤±0.1℃(at90℃) |
| Display Resolution | 0.1℃ |
| Ramping Rate Adjustable | 0.1－5℃/s |
| GRADIENT | |
| Gradient Accuracy | ≤±0.1℃ |
| Uniformity | Wells of Same Line Uniformity≤±0.2℃ |
| Gradient Range | 30℃－105℃ |
| Temp.Differential Range | 1℃－25℃ |
| Display of Gradient Temp. | Each individual block has 8 gradient Temp. |
| SOFTWARE | |
| Max.Number Of Programs | Max.15,000programs onboard,unlimited storage of protocols with USB flash drive |
| Max.Step | 30 Steps, multiple nesting cycles available |
| Max.Cycle | 100 Typical Cycles (multiple nesting allows 10,000 cycles) |
| Time Increment/decrement | 1－600 sec, available for Long PCR |
| Temp.Increment/decrement | 0.1－10℃, available for Touchdown PCR |
| Auto Pause ＆Auto Restart | Yes |
| Hold at4℃ | A below ambient Temp.incubation allow PCR products storage overnight |
| Program Wizard | Pre-program template make the editing very easy through modify several parameters |
| Running RePort | Provide full review of perviously run protocols |
| HEAT LID | |
| Lid Temp.Range | 30℃－112℃ |
| Open Method | Innovative TOP-OPEN technology, with even pressure of heat lid |
| Auto Shut-off | Lid will shut off automatically when the block Temp.falls below set Temp |
| OTHER FEATURES | |
| Power | Global switch power supply: 100V-240V, 50-60Hz |
| Consumption | 750W |
| Dimensions(L×W×H) | 375×270×277mm |
| Net Weight | 13KG |
-
Suzhou Alpha Biological Laboratory Equipment Co. , Ltd. was established in 2008, located in Suzhou Park Biological Nanometer Park (Biobay) a 5 building, room 301. The Management Team of the company is dedicated to the scientific instrument industry for 12 years.
With professional technical team and perfect after-sales service system, it has provided more than 300 laboratories with high-quality products and services, it covers 13 groups such as universities, medical institutions, testing centers, scientific research institutions and pharmaceutical enterprises.
Acting Laboratory equipment mainly includes vibration incubator, PCR instrument, Pipette, Bioreactor, fermentation tank, Pipette, ultra-low temperature refrigerator, medical refrigerator, liquid nitrogen tank, high-pressure sterilizer, ultra-pure water machine, balance, centrifuge, etc. . Manufacturers licensing including Chu Instruments, Langki, Zhongke Meiling, Mettler, Le Feng, Bo Lu, NEST, Tiangen, Aosheng and many other well-known brands. As well as providing excellent products, we also provide you with consumable reagents commonly used in biological laboratories, as well as services such as whole relocation of laboratories, third-party testing, metrology and calibration, second-hand instrument dispensing, etc. . The complete one-stop laboratory experience makes your choice more convenient, fast and flexible.
Alpha value-added services: free sample experience, free sample trial, free installation guidance, free technical guidance.
Alpha biology, help life science research! Let your experiment run smoothly without any worries!
