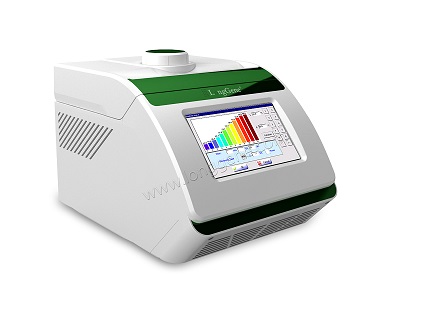

- A300 Fast Gradient Thermal Cycler
- Product Detail
- Company Profile
| Product Adventages |
| 1、New generation Peltier technology, with ramping rate at 6 ℃/sec. |
| 2、Core parts from famous supplier, ensure Temp. uniformity and accuracy. |
| 3、English interface. A wealth of software features to enjoy. |
| 4、Wide range of module options, easily interchangeable modules no tools required. |
| 5、15,000 on board protocol storage and unlimited storage by flash drive. |
| 6、Global universal switch power （85V-265V, 50-60Hz）. |
| 7、Innovative design, multiple patent protection. |
| Product Parameters | |
| Optional Module | 96 Module:96wells×0.2ml |
| 9677Module:96wells×0.2ml+77wells×0.5ml | |
| Multi－purpose Module:9677Module+In-situ Adapter | |
| 384Module:384wells | |
| In-situ Module: Flat-surface block | |
| Heating＆Cooling Technology | New generation Peltier technology allow 1,000,000 cycles |
| Display | 7’’Color Touch Screen, real-time graphical display |
| Language | English |
| USB flash drive Function | Unlimited storage of protocols with USB flash drive |
| Communication Ports | 2 USB2.0 &1 LAN |
| Venting System | Front air in ＆back air out, two cyclers can be placed side by side |
| TEMPERATURE | |
| Block Temp. Rang | 0℃－105℃ |
| Max.Heating Rate | 6℃/s |
| Max.Cooling Rate | 5℃/s |
| Temp.Uniformity | ≤±0.2℃ |
| Temp.Accuracy | ≤±0.1℃ |
| Display Resolution | 0.1℃ |
| Ramping Rate Adjustable | 0.1－4℃/s |
| GRADIENT | |
| Gradient Accuracy | ≤±0.1℃ |
| Column Uniformity | ≤±0.2℃ |
| Gradient Range | 30℃－105℃ |
| Temp.Differential Range | 1℃ -40℃ |
| Gradient Capability | 12 Column |
| HEAT LID | |
| Height Of Heat Lid | Steplessly adjustable lid, accommodates PCR tubes, strips ＆plates |
| Lid Feature | Innovative“TOP-OPEN “technology,protection from over-pressure |
| Heat Lid Temp.Range | 30℃－112℃ |
| Auto Shut-off | Lid will shut off automatically when the block Temp.falls below set Temp |
| SOFTWARE | |
| Max.Number Of Programs | Max.15, 000 programs onboard, unlimited storage of protocols with USB flash drive |
| Max.Step | 30 Steps, multiple nesting cycles available |
| Max.Cycle | 100 Typical Cycles,max.10,000nesting cycles |
| Time.Increment/decrement | 1-600 sec, available for Long PCR |
| Temp.Increment/decrement | 0.1-10℃, available for Touchdown PCR |
| Auto Pause/ Auto Restart | Yes |
| Multi-user Log In | With Password-based authentication to protect personal protocols |
| Tm Calculator | Automatically calculates the melting ＆annealing Temp.Of a pair of primers |
| Hold at 4℃ | A below ambient temp. incubation allow PCR products storage overnight |
| Program Wizard | Pre-program templete make the editing very easy through modify several parameters |
| Running Report | Provide detailed reports of previously run protocols |
| PC Connection | Remote PC control to manage multiple units across the LAN network |
| OTHER FEATURES | |
| Power | Global switch power supply:85V-265V,50-60Hz |
| Consumption | 600w |
| Dimensions(L×W×H) | 362×256×255mm |
| Net Weight | 7.3KG |
-
Suzhou Alpha Biological Laboratory Equipment Co. , Ltd. was established in 2008, located in Suzhou Park Biological Nanometer Park (Biobay) a 5 building, room 301. The Management Team of the company is dedicated to the scientific instrument industry for 12 years.
With professional technical team and perfect after-sales service system, it has provided more than 300 laboratories with high-quality products and services, it covers 13 groups such as universities, medical institutions, testing centers, scientific research institutions and pharmaceutical enterprises.
Acting Laboratory equipment mainly includes vibration incubator, PCR instrument, Pipette, Bioreactor, fermentation tank, Pipette, ultra-low temperature refrigerator, medical refrigerator, liquid nitrogen tank, high-pressure sterilizer, ultra-pure water machine, balance, centrifuge, etc. . Manufacturers licensing including Chu Instruments, Langki, Zhongke Meiling, Mettler, Le Feng, Bo Lu, NEST, Tiangen, Aosheng and many other well-known brands. As well as providing excellent products, we also provide you with consumable reagents commonly used in biological laboratories, as well as services such as whole relocation of laboratories, third-party testing, metrology and calibration, second-hand instrument dispensing, etc. . The complete one-stop laboratory experience makes your choice more convenient, fast and flexible.
Alpha value-added services: free sample experience, free sample trial, free installation guidance, free technical guidance.
Alpha biology, help life science research! Let your experiment run smoothly without any worries!
