if need price or more spec.,please email to info@faradlab.com

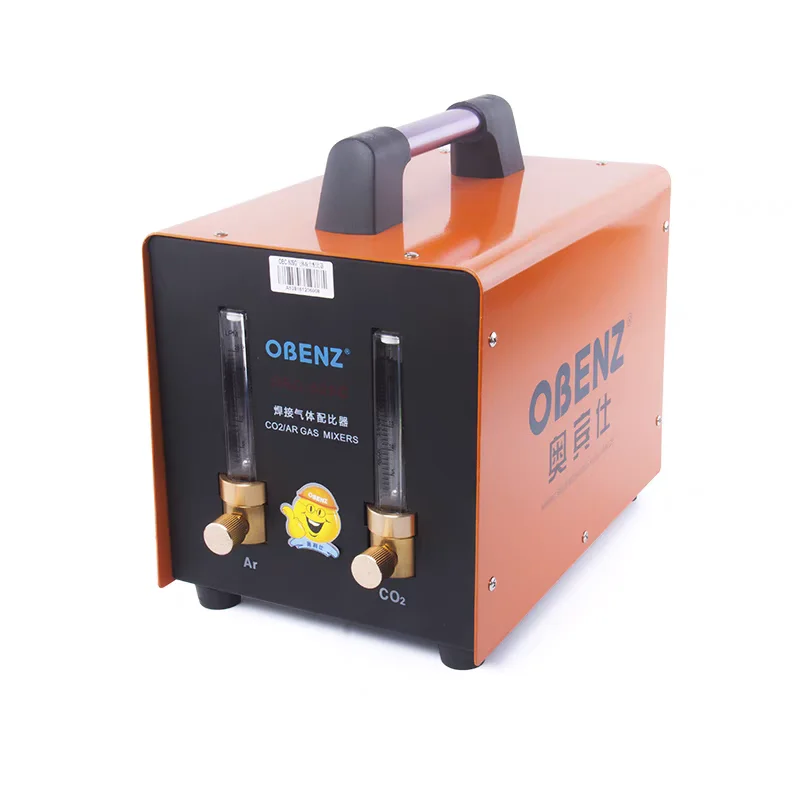

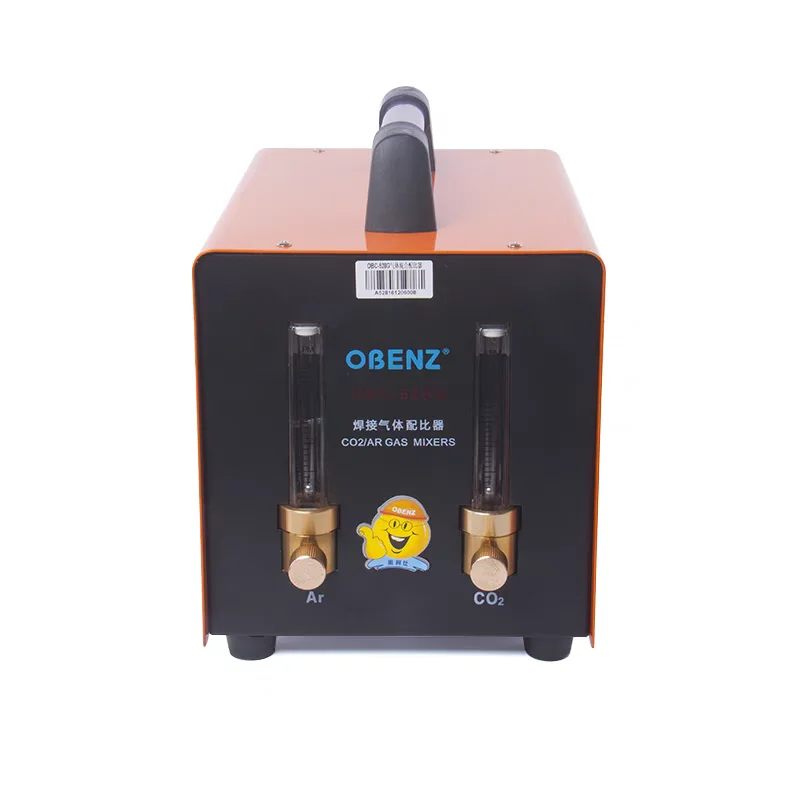

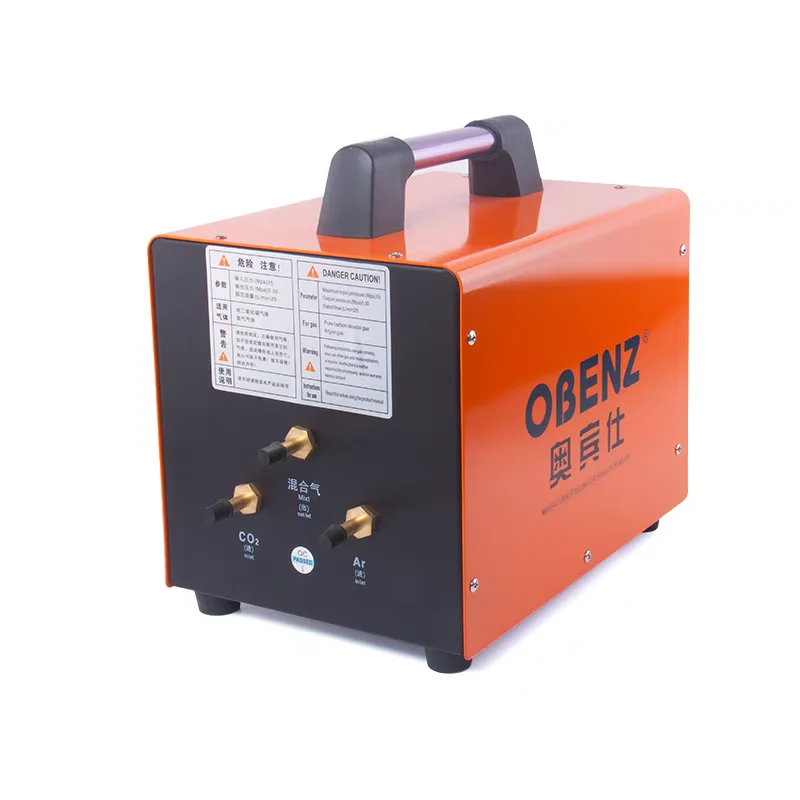

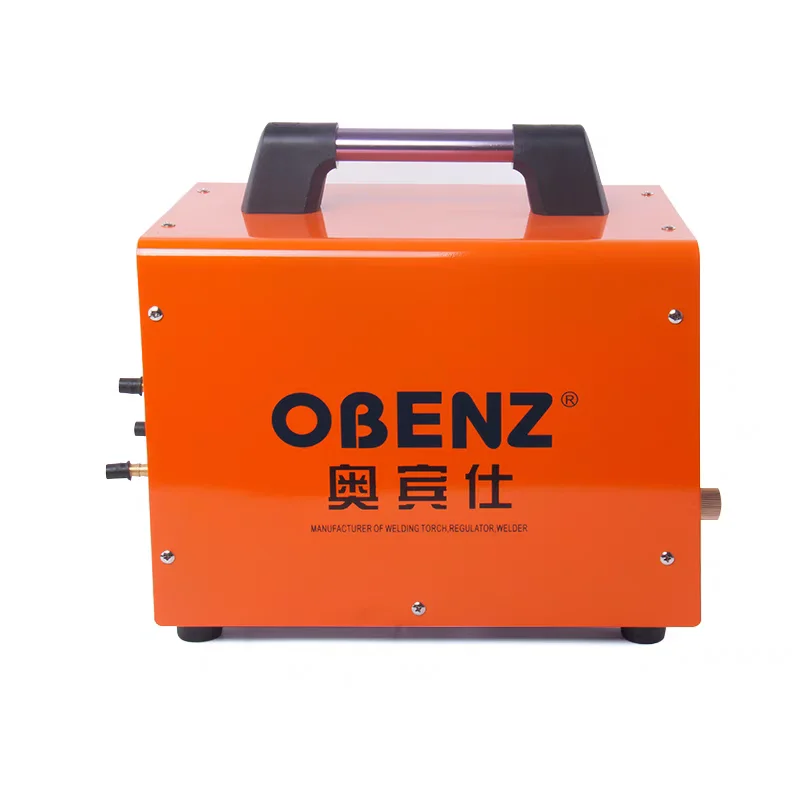

Argon carbon dioxide gas shielded gas mixer

Argon carbon dioxide gas shielded gas mixer is a device used to mix argon and carbon dioxide gases during the gas shielded welding process.The main function of a gas mixer is to mix argon and carbon dioxide gases in a predetermined ratio to provide a gas mixture suitable for gas shielded welding.Argon carbon dioxide gas shielded welding is widely used in the welding of various metal materials, especially in situations where high-quality welds are required. The gas mixer ensures the stability and consistency of the protective gas during the welding process, thereby ensuring the quality and integrity of the weld seam.

Gas mixers typically have adjustable mixing ratios to meet different welding needs. For example, some gas mixers can mix gases ranging from 50% to 100% of carbon dioxide (CO2), while the rest are mixtures of argon (Ar). In terms of accuracy, gas mixers usually have high proportional accuracy to ensure the accuracy of the mixed gas. For example, certain models of gas mixers have a mixing ratio accuracy of ± 1.0% to ± 1.5%. In terms of input and output pressure, gas mixers usually have the ability to adapt to a certain range of input and output pressures. For example, the input pressure is usually between 0.4 MPa and 0.6 MPa, while the output pressure varies depending on the specific model and application.

FEATURES AT A GLANCE

COMPACT DIMENSIONS

ACCURATE PROPORTION

SAFETY FRAME

SIMPLE CONTROL

SEASY MAINTENANCE

VERSATILITY

ACCURATE FLOW METER

00:00

00:46

PRODUCT SPECIFICATIONS

Inlet pressure	0.4-0.6Mpa
Suitable gas	argon&CO2
Proportion accuracy	±2%
