Nano-400A Ultra-micro Nucleic Acid Analyzer Micro Spectropgotometer

Product Description

Nano-400A ultra-micro nucleic acid analyzer is an instrument used to detect the concentration and purity of DNA and RNA. The sample size required for each measurement is only 1 to 2 μl. User can directly add the sample point to the template without colorizing cup or capillary accessories. After the measurement, you can choose to wipe the sample directly or use a pipettor to recover the sample. All steps are simple and fast.

•Nano-400A is a basic micro-volume UV spectrophotometer designed (only 3 types of wavelength: 260 nm, 280 nm and 365 nm) for the measurement of nucleic acids and proteins

•Android system operation, 7 inch touch screen no computer, APP software, simple interface, easy to use

•LED light source long-life components

•To detect the concentration of bacteria and microorganism are more convenient with the OD600 function

•Measures nucleic acid concentration at 260 nm and purity using the ratio 260/280

•Measure purified protein concentration at 280 nm

•The data can be printed with built-in printer, the data can output via SD-RAM card and USB memory

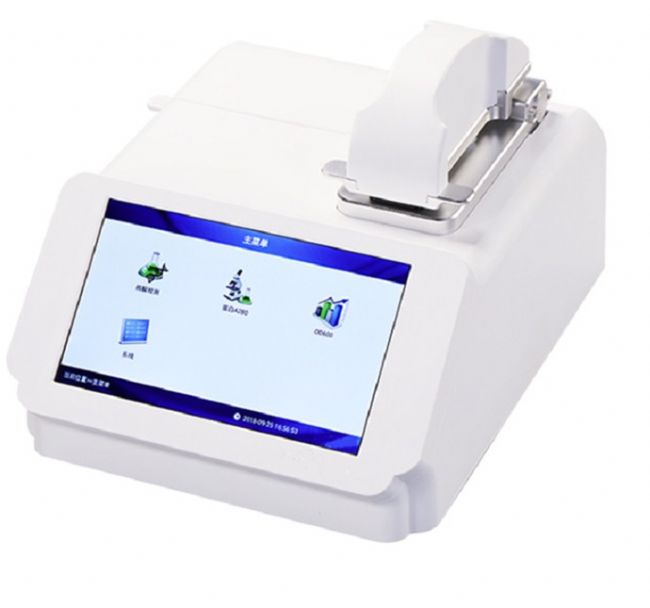

Product Image

Technical Parameters

			Model
			Nano-400A

			Wavelength range
			260 nm, 280 nm

			Minimum sample size
			1-2.0 μl

			Path length
			0.5 mm

			Light source
			LED

			Detector type
			UV-sillion photocell

			Spectral resolution
			≤8 nm

			Absorbance precision
			0.005Abs

			Absorbance accuracy
			2 %（7.332Abs at 260 nm)

			Absorbance range
			0.2 - 50 A

			Detects nucleic acid up to
			 10-2500 ng/μl（dsDNA）

			Measurement time
			<6 S

			Data output
			USB

			Sample pedestal material
			Aluminum alloy and Quartz fiber

			Operating voltage
			Operating voltage

			Operating power
			25 W

			Standby power
			5 W

			Dimension (W×D×H) mm
			208×280×186

			Weight
			3.6kg

			Software compatibility
			Android system

			Light source
			LED

			Wavelength range
			600±8 nm

			Abosorbance range
			0-4 A

Model	Nano-400A
Wavelength range	260 nm, 280 nm
Minimum sample size	1-2.0 μl
Path length	0.5 mm
Light source	LED
Detector type	UV-sillion photocell
Spectral resolution	≤8 nm
Absorbance precision	0.005Abs
Absorbance accuracy	2 %（7.332Abs at 260 nm)
Absorbance range	0.2 - 50 A
Detects nucleic acid up to	10-2500 ng/μl（dsDNA）
Measurement time	<6 S
Data output	USB
Sample pedestal material	Aluminum alloy and Quartz fiber
Operating voltage	Operating voltage
Operating power	25 W
Standby power	5 W
Dimension (W×D×H) mm	208×280×186
Weight	3.6kg
Software compatibility	Android system
Light source	LED
Wavelength range	600±8 nm
Abosorbance range	0-4 A
