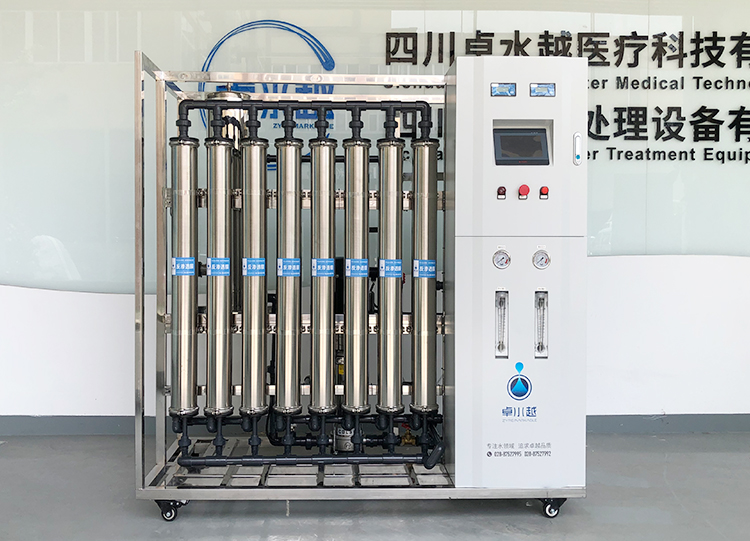

ZYRO Commercial Reverse Osmosis System

ZYRO water treatment system uses reverse osmosis technology with intellegent PLC touch screen operation to purify water. The production RO water can used to chemical, medical, commercial industry.

Model List of Commercial Reverse Osmosis System:

No.	Model	Water Yield (L/H)	Voltage/ Power (V/Kw)	Body Size *(LWH mm)*	Water Tank (L/Material)
1	ZYRO-250	250	380/1.2	14007001640	250/PE
2	ZYRO-500	500	380/1.3	14007001640	500/PE
3	ZYRO-1000	1000	380/1.4	14007001640	1000/PE
5	ZYRO-2000	2000	380/3.15	16008001600	2000/PE
6	ZYRO-3000	3000	380/5.6	180010001800	3000/PE
7	ZYRO-4000	4000	380/5.65	180010001800	4000/PE
8	ZYRO-5000	5000	380/9.15	180010002000	5000/PE

Technical Parameters of Commercial Reverse Osmosis System:

Model	ZYRO-2000L	Water yield		2m3/h @25℃
Production model	Single reverse osmosis system	Operation		Full automatic
Inlet water pressure	≥0.3Mpa	Raw water temperature		5℃—45℃
Total inlet water	≥4m3/h	Inlet water pipe		DN32
Inlet water index	City tap water , TDS≤500ppm	Desalination rate		≥ 99% @25℃
Water production index: conductivity ≤15µs/cm @25℃
Operation pressure	380V--50/60Hz	Power	1.6KW

Features

· High-precision filtration, nanometer pore size, the best pure water quality

· Manual/automatic dual control system can switch automatically

· It has safety devices such as power-on self-test, automatic shutdown protection when water is short of power and power failure, automatic shutdown of water when water comes in, shutdown when water is full, and no pressure protection.

· It has the functions of automatic flushing of RO membrane and automatic double flushing when the water tank is full, which can prolong the life of RO membrane

The process flow

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.

2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect

3. Active Carbon filter--adsorb color, free chloride, organic matter, harmful matter, ect.

4. Antiscalant--exchange "ions" of calcium and magnesium with the most common and easiest method.

5. Security filter-- 5um PP cotton filtrates micro-particles.

6. High pressure pump-- Provide pressure to RO membrane.

7. RO membrane -- 0.0001-0.001um; remove more than 99% particles, colloids, bacteria, eliminating endotoxin and high molecular organic matter.

8. UV lamp--disinfect pure water for drinking.
