Introduction:

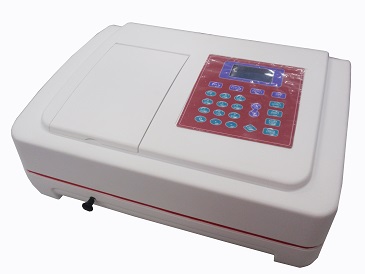

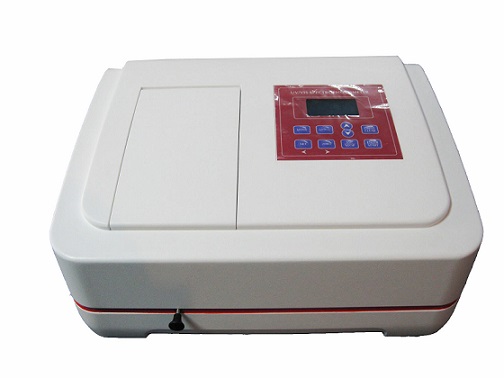

AE-S30-6V, AE-S30-6VS is single beam spectrophotometer that analyzes specimen materials in the visible spectral range. Its high precision and reliable performance made it ideal for applications in medicine, petrochemistry, agriculture, food industry, biochemistry, environmental protection and many other fields.
Features:
※ Single beam, 1200 lines/mm grating, Low stray light & High resolution;
※ Excellent stability and reliability;
※ Microprocessor control technology, Automatic calibration for 0%T and 100%T;
※ Selectable model for different requirements;
※ 3.5 digital LCD display, for easy reading and operation;
※ High VIS performance between 320 and 1000nm(AE-S30-6VS), 330 and 1000nm (AE-S30-6V).
※RS-232C communication(AE-S30-6VS)
※Data-processing software.
※Analog output.
Technical Specifications:
|
Model
|
AE-S30-6V
|
AE-S30-6VS
|
|
Display
|
3.5digital LCD
|
3.5digital LCD
|
|
Spectral slit width(nm)
|
6nm
|
6nm
|
|
Optical system
|
Littow type,single beam
|
Littow type,single beam
|
|
Wavelength range(nm)
|
330-1000nm
|
320-1000nm
|
|
Wavelength accuracy
|
±2nm
|
±2nm
|
|
Wavnlength repeatability
|
±1nm
|
±1nm
|
|
Photometric range
|
0-125.0%T,0-2.5A
|
0-125.0%T,0-2.5A,1-999C
|
|
Photometric accuracy
|
±1%T
|
±1%T
|
|
Stray light
|
≤0.3%T@340nm,400nm
|
≤0.3%T@340nm,400nm
|
|
Drift
|
≤0.003A/h(warm up)
|
≤0.003A/h(warm up)
|
|
Light source
|
Tungsten
|
Tungsten
|
|
Detector
|
Silicon photodiode
|
Silicon photodiode
|
|
Data output
|
Analog output
|
Analog output,RS-232
|
|
Standard sample holder
|
10*10mm cell,Φ12 tube
|
10*10mm cell, Φ12 tube
Or 4-10*10mm cell
|
|
Power requirement
|
85-264 volts
|
85-264 volts
|
|
Dimensions
|
12.5cmX10.5cmX5.1cm
|
12.5cmX10.5cmX5.1cm
|
|
Weight
|
4.5Kg
|
4.5kg
|
