4 Choice Insect Olfactometer

Application

·To study the relationship between insects and plant chemical constituents;

·Chemical ecology research;

·Research on insect behavior information;

·Cooperate with camera system to monitor insect behavior.

Brief introduction

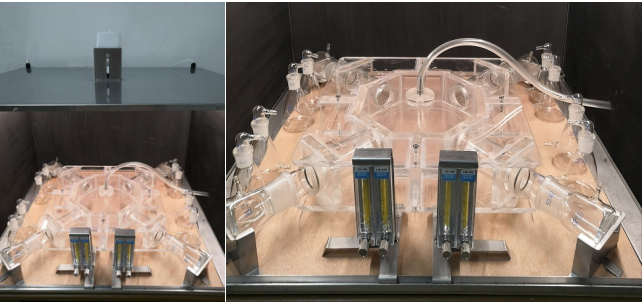

4 Choice Insect Olfactometer observation system is mainly composed of a special square box, an insect olfactometer and a camera system. The camera system can monitor some behavior characteristics of insects in the light or dark state without the influence of external sounds.

Characteristic

1. The size of the central activity room of the olfactometer can be customized according to different insect species and their activities;

2. Customized lamps are available to provide different lighting

3. The camera system can record insect behavior under light and dark conditions, and it can be remotely monitored by mobile phone

4. The gas flow can be controlled.

Technical specifications

Dimension	600mm * 600mm * 150mm, made of acrylic material (customizable)
Channel	4pc,the odor source enters from the four processing arms (customizable)
Min small diameter	40mm (customizable)
Flow meter	0.1~1L/min, used to regulate the air flow rate
The balance bottle	150ml, made of GG17 material, and connected with the ground mouth seal
Activated carbon bottle	150ml, made of GG17 material, with ground seal connection
Capture bottle	150ml, made of GG17, with grinding mouth sealed
Vacuum pump	AC220V, silent, oil-free, maintenance free
Camera system	1080P digital infrared high-definition webcam, infrared wavelength 850nm, PLA system, automatic switching day and night, and supporting mobile phone remote monitoring

Origin: China
