4-Choice Olfactometer/6-choice Olfactometer/Insect Olfactometer

Principle:

Each insect like the different taste of different types of gases, in the end of each channel, connect a different odor source, insects will creep like the smell at one end, from performance to know all sorts of insect olfactory.

Feature:

Use of imported completely transparent thicker Plexiglas and Teflon material,

Forming a sealing performance.

Can be customized more than one suction hole, or made to order multiple insect channel, designed to study insect olfactory odor.

1.The main body and upper cover are made of high-definition transparent acrylic material (Treflon material can be selected for the bottom plate),

Activity room Dia.300 and 4 channels;

2. The wormhole adopts superimposed self-priming design with specifications φ40mm, φ20mm;

3. Insect pear shaped collection bottles, 50ml and 100ml, 4 bottles each, effectively prevent insects from returning to the observation room;

4. 4 odor bottles 500ml, suitable for liquid solid odor source and air humidification.

5. Flow control: three channels can control flow independently, flowmeter: 10~100ml/min or customized

6. 4pcs 500ml drying towers equipped with 1kg activated carbon can effectively filter impurities in the air;

7. Oil free vacuum pump, voltage 220V, power ≥ 60W, no-load flow 20L/min, relative vacuum degree (Kpa) ≈ - 80; (or optional)

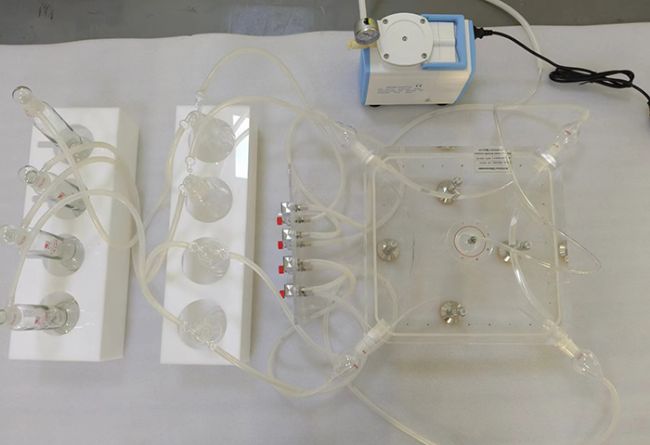

Configuration:

1pc activity room, 50ml, 100ml pear shaped bottles each 4pcs , 500ml odor bottles 4pcs, 500ml drying towers 4pcs,

flow meters with support 3pcs, activated carbon 1kg/bag, oil-free vacuum pump 1 Set, and 15m food grade connecting pipe

A complete set can ready to use.
