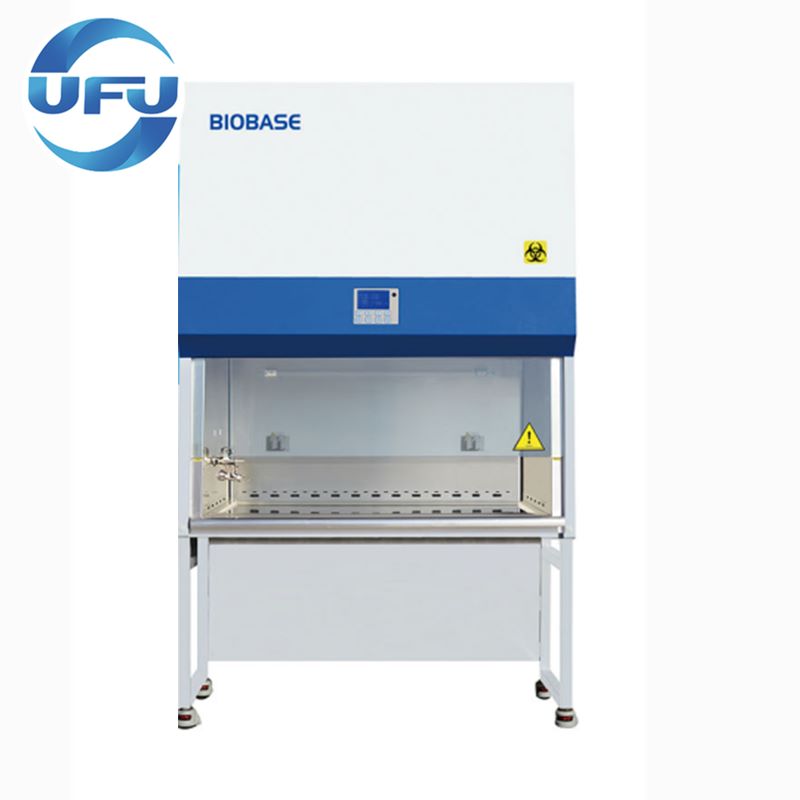

EN12469 Certified Biological Safety Cabinet 4'
Features:
LCD display
Large LCD display is easy to monitor all the safety parameters at a glance; and ergonomically sized control panel improves users interface.
Front window
Two-layer laminated toughened glass ≥ 5mm , anti UV
UV lamp (optional)
Emission of 253.7 nanometers for most efficient decontamination
Work zone
Three pieces 304 stainless steel work table
Remote control
Remote control for convenient operation
Waterproof socket
Advantage:
1. The transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.
2. The 10° sloped front allows an ergonomic, fatigue-free working posture.
3. The front window is motorized for convenient, one-hand operation. The window control is mounted on the front control panel.
4. When fully lowered the front window, it seals automatically against a closed-cell peripheral gasket to isolate the interior and prevent escape of contaminants during decontamination.
5. Front window can be closed manually in case of power failure.
|
Model |
11237BBC86 |
||||
|
External Size (W×D×H) |
1300*790mm*2310mm |
Internal Size (W×D×H) |
1200*600*770mm |
||
|
Work Surface Height |
750mm |
Max Opening |
480mm |
||
|
Tested Opening |
Safety height ≤200mm |
Noise |
EN12469: ≤60dB |
||
|
HEPA filter |
Two,99.999% efficiency at 0.3 um; filter life indicator |
Illumination |
≥1000lux |
||
|
Average airflow velocity |
Inflow: 0.5±0.025m/s (98.4fpm), Downflow: 0.36±0.025m/s (71fpm) |
||||
|
Airflow volume |
Inflow: 430m3/h(270cfm), Downflow: 720m3/h(430cfm) |
||||
|
Exhaust: 360m3/h(220cfm) |
|||||
|
UV lamp (Optional) |
30W germicidal UV lamp. Emission of 253.7 nanometers for most efficient decontamination;UV life indicator |
||||
|
Alarm |
Abnormal airflow velocity; Filter change; Front Window over height |
||||
|
Material |
Main body: Cold-rolled steel coated with anti-bacteria powder |
||||
|
Work surface: 304 Stainless steel, three pieces |
|||||
|
Side and front window: Two-layer laminated toughened glass |
|||||
|
Power Supply (220-240V, AC, 50Hz) Caster |
Cabinet consumption/Amp: 430W/2.1A; BTU/Hr : 1466 |
||||
|
Total load of 4 sockets : ≤500W; Socket amp fuse : 6.3A |
|||||
|
Standard Accessory |
waterproof sockets *4, Base stand, Remote control, Fluorescent lamp, Drain valve |
||||
|
Optional accessory |
Armrest, airflow tester, Formalin fumigation sterilizer, infrared sterilizer, |
||||
|
Gross weight |
300KG |
Package Size(W*D*H) |
1480*1000*1760mm |
||
-
