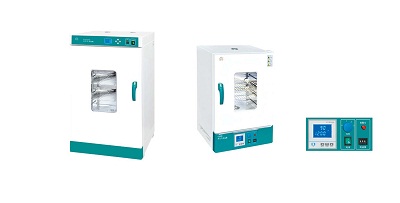

Uses:
This equipment is widely used for drying, curing, melting and heating in experiments of industrial enterprises, scientific research institutions, and health and medicine units etc.
Characteristics
1. Vertical type, cold rolling steel electrostatic spraying exterior.
2. Well coordinated bottom air blower and heater and vertical hot air circulation ensure the temperature evenness.
3. High quality mirror finished stainless steel interion foursquare semicircle transition; flexible positioning and removable shelf; airduct lateral plate and bottom heater covering are easy to assembly and disassembly for convenient cleaning.
4. PID micro-computer intelligent temperature controller with functions of timing and over-temperature protection. Precise in temperature control and easy to read.
5. Use the low noise fans.
5. Hew design door with wide double-glass observation window, adjustable airtight buckle lock, and heat resistant silicon rubber seal, which efficiently prevent heat loss.
Note: model WGL-625B features top blowing.
| Model |
WGL-30B |
WGL-45B |
WGL-65B |
WGL-125B |
WGL-230B |
WGL-625B |
| voltage |
220V50Hz |
380V/50Hz |
| Tem. Range (℃) |
RT+5～300℃ |
| Tem. Motion (℃) |
±1.0℃ |
| Tem. Resolution Ratio |
0.1℃ |
| Ambient tem. (℃) |
5-40℃ |
| Heating power (kw) |
0.8 |
1.2 |
1.6 |
2.3 |
3 |
5 |
| Inner Champer Size (mm) |
310×310×310 |
350×350×350 |
400×360×450 |
500×450×550 |
600×500×750 |
660×760×1250 |
| Exterior Size (mm) |
450×490×685 |
490×530×730 |
540×540×830 |
640×630×930 |
730×670×1220 |
890×880×1820 |
| Packing Size (mm) |
545×520×750 |
590×560×790 |
610×610×890 |
710×700×990 |
900×800×1300 |
1060×1080×1970 |
| Load per rack (Kg) |
15kg 2pcs |
25kg 2pcs |
25kg 3pcs |
| N.W.(Kg) |
33 |
37 |
44 |
60 |
94 |
90 |
| G.W.(Kg) |
37 |
43 |
49 |
66 |
120 |
160 |
| Timing range |
1-9999min |
