small mushroom Vacuum Freeze equipment

Specifications

experimental freeze dryer
1. for lab or pilot production ;
2. same control and working procedure as the production lyophilized
3. Excellent performance;

SJIA 0.2 to 1.2 square meter freeze dryer

Main application:

Fruit, vegetable, aquatic, meat, instant foodstuff, chemical stoneware condiment ect.

Capacity:

 4~15kg per 20hrs

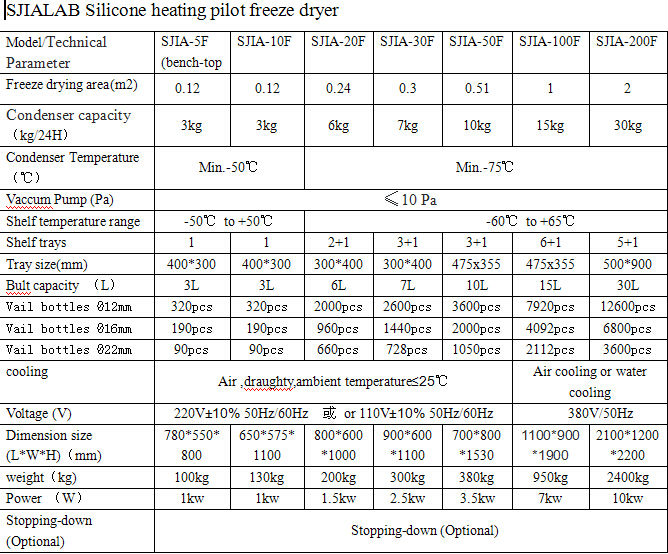

Main technical parameters

Drying area 0.12 to 0.5sqm

material of the shelves: stainless 316.

vacuum: <15Pa ,

heat exchange meduim :silicon oil;

shelves temperature : -50C to 70C;

cascaded system  to achieve lower temperature

PLC Control system.

Compressor: TECUMSEH, From France

optional: CIP ,SIP,Top stopper

freeze dryer for Pharmacy

Purpose:

SJIA series vaccum freeze dryer ( In situ) is suitable for laboratory samples of freeze drying test,

and a small amount of  production.The machine is with shelf sheating function,using PLC technology

which is accurate temperature control,human-computer interface using LCD screen with curves and data.

Technical characteristics:

1.pre-freeze drying processing is in situ,put the material into the drying cabinet, it is automatic for the process of freezing and dring.

2.The machine is cascade refrigeration technology,imported compressor which is low noise,large

cooling capacity and high capacity of water capture to reduce the time of freeze drying.

3.Silicon oil is intermediate medium in the shelves for heating to Ensure drying material uniformity,

temperature discrepany is      ≤1°C

4.The shelf temperature can be adjustable and control which is Easy for exploring of semi-work and production process

5.The square shelf is difficult for distortion, and easy for operation  and cleaning.

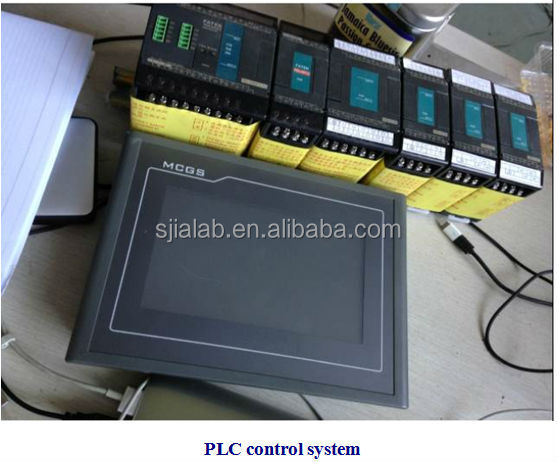

6.LCD display designed as touch screen, it adopt PLC control system, can display all

important curves and data,  human-computer interface can provide the user more information for relevant freeze drying process.

7.Cold trap and operation panel are made by stainless steel,corrosion-resistant and easy to clean

8.The inflation valve is optional,which can be filled with inert gas.

9.The cabinet door is with high transparent colorless organic glass, The material change process

 can be easily observed during the   operation through the transparent door.

10.The recorder and computer communication interface is optional
