- Alpha MINI Space 1000 multifunctional gel image analysis system
- Product Detail
- Company Profile
- Super Vision's innovative integrated ultra clear scientific research and optical system
- 12 inch embedded touch screen operating system
- Manual control sample platform
- Three wavelength LED transmission light source

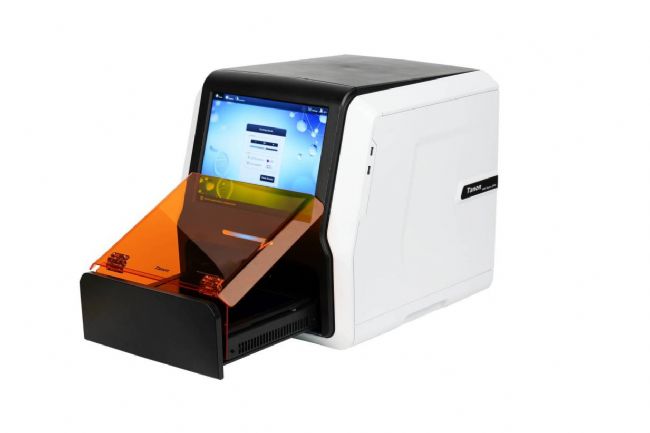

- Tanon MINI Space 1000 Imaging System is a new model of Gel Doc. It can provide efficient, simple, stable research tool for the sample detection and analysis of scientific researchers.
- Tanon MINI Space 1000 multifunctional gel image analysis system shall be applied to nucleic acid imaging, SDS-PAGE gel imaging, colony imaging, etc.
- Meet TanonTM nucleic acid dye Red, TanonTM nucleic acid dye Green, ethidium bromide (EB), SYBR ® Green, SYBR ® Gold, SYBR ® Safe, GelRedTM, GelStar ®, Qdots ®. Imaging with dyes such as Coomassie Brilliant Blue and Silver Staining.
- Applications: DNA/RNA/Protein gel image
- Product Model: Tanon MINI Space 1000
- Camera systerm: Super Vision Camera 1000
- Imaging Pixels: 5.06MP（1836*2756）
- Quantum Efficiency: 75%
- Signal-noise ratio: ≥72db
- Pixel density (gray levels): 0-65535
- Dynamic Range: >3.2 orders of magnitude
- Lens: 20 MP ultra high definition lens（physical resolution）
- LED excitation source: Trans-white,Trans-UVB, Trans-Blue
- Emission Fluorescence Filter: 590nm
- Transilluminator drawer: Manual drawer
- Image area: 14 x 21 cm
- Sample trays :Auto identification WhiteTray/UV Tray/Bule Tray
- Excise the bands: Auto-Safe identification UV/Blue shield
- Touch screen functionality: Multi-touch capable 12.0 " display
- Instrument size (L x W x H) :38 x 45 x 41cm
| Product features |
|
|
|
|
|
|
|
|
| Application direction |
|
|
|
|
|
|
| Technical Specifications |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Application case |
| DNA gel, Fam-DNA gel, Coomassie blue stain protein gel |
-
Suzhou Alpha Biological Laboratory Equipment Co. , Ltd. was established in 2008, located in Suzhou Park Biological Nanometer Park (Biobay) a 5 building, room 301. The Management Team of the company is dedicated to the scientific instrument industry for 12 years.
With professional technical team and perfect after-sales service system, it has provided more than 300 laboratories with high-quality products and services, it covers 13 groups such as universities, medical institutions, testing centers, scientific research institutions and pharmaceutical enterprises.
Acting Laboratory equipment mainly includes vibration incubator, PCR instrument, Pipette, Bioreactor, fermentation tank, Pipette, ultra-low temperature refrigerator, medical refrigerator, liquid nitrogen tank, high-pressure sterilizer, ultra-pure water machine, balance, centrifuge, etc. . Manufacturers licensing including Chu Instruments, Langki, Zhongke Meiling, Mettler, Le Feng, Bo Lu, NEST, Tiangen, Aosheng and many other well-known brands. As well as providing excellent products, we also provide you with consumable reagents commonly used in biological laboratories, as well as services such as whole relocation of laboratories, third-party testing, metrology and calibration, second-hand instrument dispensing, etc. . The complete one-stop laboratory experience makes your choice more convenient, fast and flexible.
Alpha value-added services: free sample experience, free sample trial, free installation guidance, free technical guidance.
Alpha biology, help life science research! Let your experiment run smoothly without any worries!
