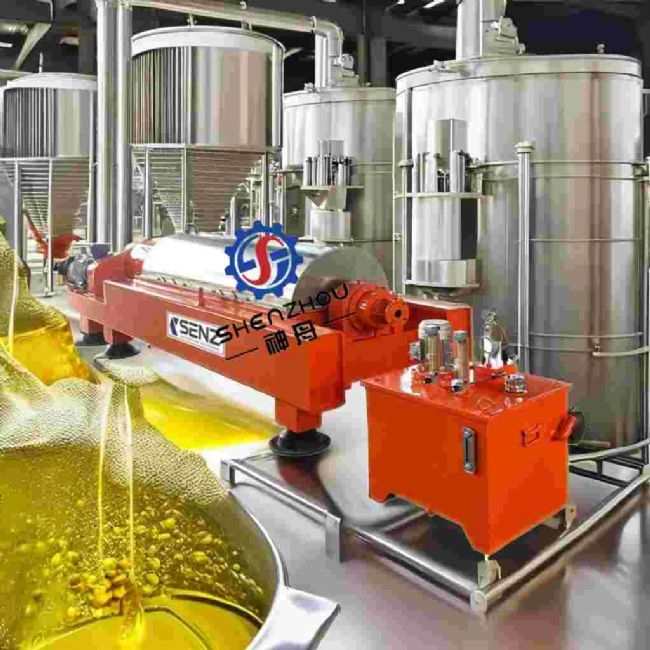

LWS420 Olive Oil Filtering Decanter Centrifuges is designed specially for olive oil extraction from the ready paste by 2-phase or 3-phase separation. Together with our polishing separator,customer can produce the extra virgin olive oil. 2 Phase decanter centrifuge is designed for olive oil extraction to avoid waste water pollution issues. 3 Phase decanter centrifuge is designed for olive oil extraction to get more drier olive pomace.

LWS Series Decanter Centrifuge(3-Phase)

It is used for dehydration, concentration, clarification, and solid particle separation of materials with density differences between solid and liquid.

Three-Phase Centrifuge Operating Principle

The centrifuge starts to rotate at full speed, and the slurry is added to the spiral inner cylinder through the feed pipe and then øows into the drum. Under the action of centrifugal force, the solid slag with a higher density settles on the drum wall, and is pushed towards the small end of the drum by the spiral conveyor and discharged from the slag outlet.
Oil and water form a concentric ring, and the light phase liquid (oil) overflows from the light phase liquid outlet, while the heavy phase liquid (water) øows into the pump chamber at the large end of the drum and is discharged by the centrifugal pump pressure. The thickness of different liquid rings is adjusted by the variable centripetal pump wheel.

Centripetal Pump

Centripetal pumps can be made of 304, 316L materials, or other materials.

There are 2 types of centripetal pumps: adjustable and non adjustable. The adjustable type can achieve non-stop adjustment of the depth of the drum liquid pool, and the centrifugal pump pressure discharge method is more suitable for situations where liquid is prone to volatilization.

Application

1. Food
A: flesh processing,aquatic products process and edible protein recovery;
B: Extract plant protein from soybean,oily seeds and leguminous plants;
C: Recovery of brewing leach liquor malt and yeast
D: Treatment and recovery of wine lees liquid;
E: Extract of instant coffee and tea;
F: Clarification of palm oil,olive oil and seed oil;
G: Extract juice from fruits ,berries and vegetables;
H: Recovery of refined pectin;
I: Clarification of grape juice and grape wine.

2. Environmental protection
Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic
particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.

3. Petroleum and chemical industry
A: Processing of kaolin and calcium carbonate,production of bentonite and titanium dioxide;
B: Exploration of petroleum oil,natural gas,crude oil refining and related industries,additive of lube oil and waste oil recovery;
C: Intermediate products and final products of organic chemistry industry;
D: Thermoplastic materials,includes PVC,polypropylene,polystyrene,synthetic rubber and fiber;
E: Inorganic chemical industry ,includes bleach,acid,silica products and fertilizers;
F: Treatment of spent wash and molasses fermentation residues;
G: Extraction of starch from wheat,corn ,cassava and potato;
H:Waste liquid recovery and recycling from above industries.
The parameters of separation performance

Product Name	3-Phase Decanter centrifuge
Material	SS304/316L Duplex
Drum Diameter	420mm
Voltage	380v/customized
Max Speed	3000 r/min
Separator factor	2620g
Capacity	25 m3/h
Weight	2500 kgs
Product Dimension	3320x1700x1130mm
HS Code	8421192000
