Decanter centrifuge from SHENZHOU Separator provide exceptional performance whenseparating solids from liquids, and make it possible to do so continuously,efficiently and controllably.
Reyes decanter centrifuges are designed to handle a wide range ofsolid particles with diameters from 5 mm to a few microns.Decanter centrifuge can also handle slurries with a solid content from as low as 0.1% w/w to more than 65% w/w.

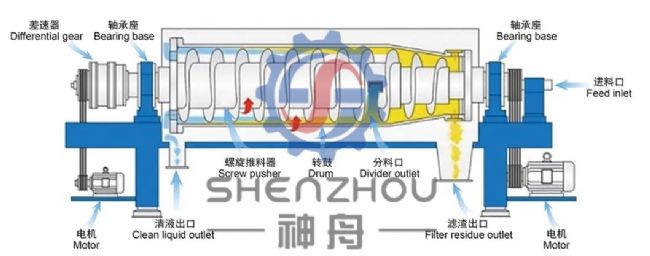

Working Principle
Decanter centrifuge used for solid-liquid separation of heterogeneous phase, which can separate liquid-solid and liquid-liquid-solid suspensions. When the material enters the high-speed rotating drum, due to different sizes of centrifugalforce, the solid particles in the suspension are affected by large centrifugal force and settle to the inner wall of the drum.The clear (liquid) phase in the suspension is affected by relatively small centrifugal force and settles to the inner side of the solid material. The screw conveyor with the same rotation direction as the drum is also rotating at high speed.A stable speed difference is generated by the differential. The solid particles settled on the inner wall of the drum are transported to the solid outlet of the drum by the screw conveyor, and the phase cleaning liquid flows out of the phase cleaning outlet of the drum.
|
Product Name
|
2-Phase Decanter centrifuge
|
|
Material
|
SS304/Duplex
|
|
Drum Diameter
|
450mm
|
|
Voltage
|
380v/customized
|
|
|
2700 r/min
|
|
Separator factor
|
2913g
|
|
Capacity
|
4-25 m3/h
|
| Weight | 2500 kgs |
| Product Dimension | 3320x1700x1130mm |
| HS Code | 8421192000 |
Mainly Application
1. Separating and dewatering the industrial and domestic water.
2. Wash, classification and dewatering for amylum.
3. Dewatering for soybean, wheat.
4. Dewatering for fish powder, fish meat.
5. Dewatering for lees.
6. Clarification for juice and dewatering for fruits.
7. Separation and purification for animal and vegetable oil.
8. Separation and purification for coal tar.
9. Classification and dewatering for kaolin and graphite.
10. Classification and dewatering for dyestuff and pigment.
11. Float wash of extractive coal and dewatering of coal mud.
12. Classification and dewatering for ore slurry.
2. Wash, classification and dewatering for amylum.
3. Dewatering for soybean, wheat.
4. Dewatering for fish powder, fish meat.
5. Dewatering for lees.
6. Clarification for juice and dewatering for fruits.
7. Separation and purification for animal and vegetable oil.
8. Separation and purification for coal tar.
9. Classification and dewatering for kaolin and graphite.
10. Classification and dewatering for dyestuff and pigment.
11. Float wash of extractive coal and dewatering of coal mud.
12. Classification and dewatering for ore slurry.
-
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.
