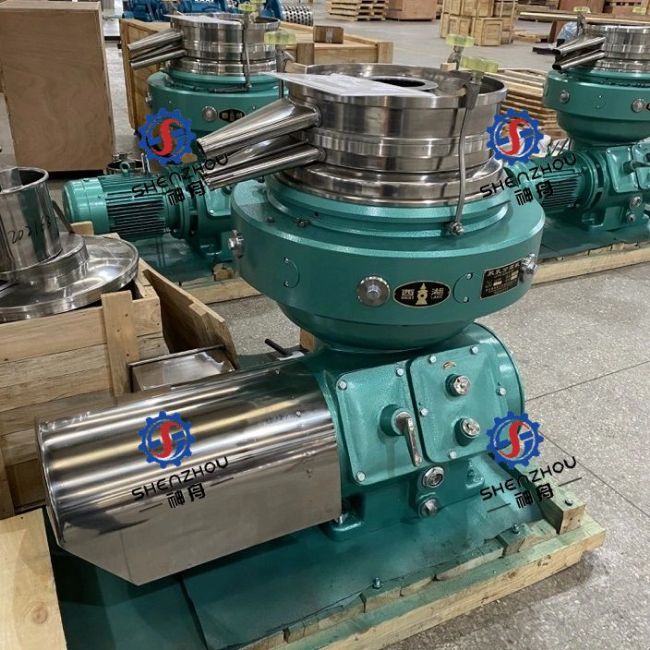

Latex separator is suitable for concentrating and purifying of the natural latex.It can separate the latex into the cream and skim, as well as eliminate the solid impurities st the same time. This model of separator is provided with the following advantages: inverter start-up, el.magnetic brake, short stoppin, and long effective separating time, large treatment capacity, good separating efficiency. It is really a excellent equipment for the latex production.

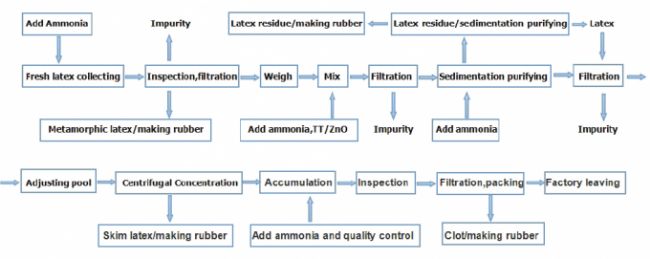

The natural latex is from rubber tree, milk white , solid content is 30%~40%, and the average diameter of solid is 1.06um. The fresh natural latex contain latex 27%~41.3%(m/m),water 44%~70%,protein 0.2%~4.5% ,natural resin 2%~5% ,saccharides 0.36%~4.2% and ash 0.4% . To facilitate transportation and processing, natural rubber latex should be concentrated to the solid content of 60% by adopting the method of centrifugal or evaporation. so it also known as concentrated latex.

Advantage

1. inverter start-up;

2. el.magnetic brake;

3. short stopping-and long effective separating time;

4. large treatment capacity;

5. good separating efficiency

Specification

Model	SZPD-400/600
Rated capacity (L/h)	400-600
Motor power (kw)	11.0
Net Weight (kg)	1100
Gross Weight (kg)	1550
Dimension (L×W×H)	12609301700
Dimension of package (L×W×H)	157014301900

How does Disc Separator work?

FEED AND DISCHARGE
Through an enclosed line system the latex will be fed into initial container of the separator;the liquid level
maintains constant by means of floating.Feeding rate can be adjusted by raising or lowing the floating.

FRAME,HOOD AND DRIVE
The frame of separator is equipped with magnetic brake,machine brake tachometer for control the speed of bowl and level inspection glass.

The separator is driven by motor installed by means of friction pad and power transferred to bowl through
centrifugal friction clutch.

All bearing and gears are flush lubrication used oil from oil groove on the frame.The hood is fixed on the
frame by four turning press unit,feeder unit with floating fixed on initial container of top of hood by
adjustable press unit.

MAGNETIC BRAKE
Magnetic brake that installed on upper section of frame consists of six magnetic coils.It can brake bowl in
short time(≤four mins). Acting of the brake indicated by pilot light,the bowl also can be broken with machine brake during power broken.

The acting of machine brake is upon horizontal axes.
