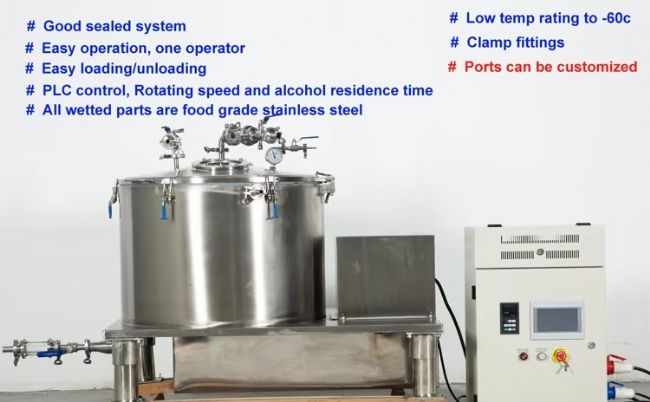

The centrifuge can be used to extract and filter centrifuges for HEMP and other plants. The series of centrifuges extract the active ingredients in plants through a built-in program, which is single-handed, easy to use and large in capacity.The Centrifuge Machine is top discharging, hermetic closure type equipment. The material is fed into the drum through the feeding pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and, after the machine is stopped, the material is discharged from the top. The centrifuge has such features as smooth running, easy & convenient operation as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc.

The Res-ptd series hemp filter centrifuge extraction system integrated ethanol extraction and centrifugal technique togetherr in one machine for fast extraction. The process can be carried out at eitherr room temperature or cryo temperature (for instance~40C). The jacketed vessel ensures a precious temperature control during the extraction process. The bi-directional agitation provides a comprehensive mix of the materials and the alcohol, maximizing the extraction efficiency. And the high speed spin-dry cycles remove approximately 97% of the alcohol.

Product Parameters

Model	PTD25	PTD45	PTD65	PTD85	PTD145
Bowl dia mm	300	450	450	600	600
Bowl volume L	25	45	65	85	145
Hemp biomass kg	8	14	20	25	45
Alcohol gallon	11	23	28	37	56
Rotation speed rpm	2000	1500	1500	1250	1250
Motor power KW	1.5	2.2	3	4	5.5
Weight kg	240	350	500	800	820
