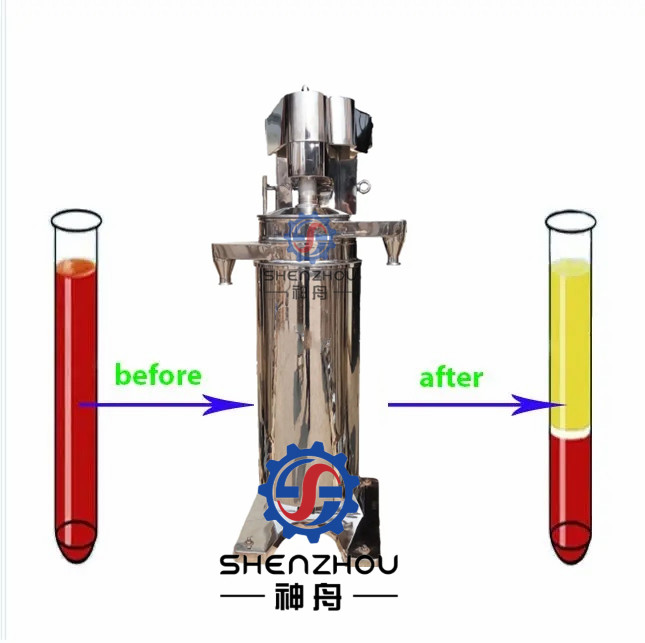

GFX105 Pig Blood Plasma Tubular Centrifugal Machine

Blood tubular centrifuge:

As blood is used more and more widely, the industries involved have expanded from a single food industry to feed, biological products and other industries. The new generation of blood separator designed and developed by our company is widely used in the separation of blood plasma and blood cells from human, pig, cow, sheep, chicken and other blood.

The centrifuge has high performance of separate factor, high capacity, and account for small area and easy to handle, it has t types, one is GQ two phase that can separate solid from the liquid, another is GF series, which can separate the water, solid from the oil.

GF model: Liquid with big density forms the outer liquid circle, while liquid with small density forms the inner circle. Then liquid will flow out of the upper outlet accordingly, and those little solid will be deposited on the drum wall, and be removed by manual after machine stops.

GQ model: Solid particles with big density are gradually deposited on the drum's inner wall, and forms sediment layer, after machine is stopped, is removed by manual. While the clarified liquid flows out through the outlet on the upper of the drum.

Product Paramenters

Type	GFX105	GFX112
Diameter (mm)	105	112
Bowl Speed (r/min)	16300	15500
Bowl Volume (L)	6	7
Separating Factors (ω2.r/g)	15700	15000
Though output Capacity (L/h)	1200	1600
Motor Power (kw)	2~2.2	3
Weight (kg)	450	650
Dimension(mm) L×W×H	840×450×1600	900×550×1700

Application:

Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs plants extracts, various medicine liquor, liquid medicine, oral liquid, the extraction of paint, dye, as well as various proteins, alga, fruit gels, and purification of rubber solution, coal tar, graphite, saponin, pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap, etc.
