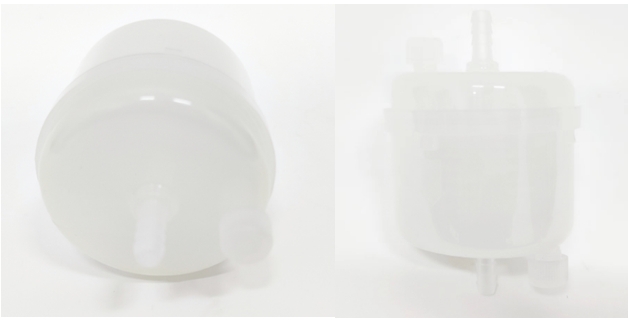

- PES high flow rate, low protein adsorption bag filter
The bag filter is composed of highly asymmetric PES filtration membranes, which can provide stable and reliable filtration performance for sterilization and particle removal. The low protein and preservative adsorption rate of PES filtration membranes also ensure maximum retention of active ingredients.
Product features
Wide chemical compatibility
High particle retention efficiency
Low filtration cost (high flux)
Optional detachable bell cover accessories - prevent splashing and contamination
Application:
Control of impurities in chromatographic and buffer solutions
For liquids such as buffer solution, biological solution, tissue culture solution, etc
Perform pre filtering
Reduce the biological load of products before aseptic filling process
| Filter material | Filter membrane | PES |
| Support/Shell/Breather/Air Cap | PP | |
| Clock cover | MS+PP | |
| Filtering accuracy | 0.22μm/0.45μm/0.2μm+0.8μm | |
| Filter area | 250-300cm2 | |
| Import and export | 1/4 "thread | 1/4 "Pagoda Interface |
| Filter size | Length: 94mm | Length: 166mm |
| Diameter: 60mm | Diameter: 60mm | |
| Operating conditions | Maximum operating pressure | 0.35Mpa |
| Maximum operating temperature | 80 ℃ | |
| Sterilization method | High temperature and high pressure sterilization at 121 ℃ for 30 minutes, EO | |
| Biocompatibility | Compliant with USP<88> | |
| biosafety | endotoxin | Less than 0.25EU/mL |
Ordering information:
| Art. | Aperture | Import/Export | Sterilization or not | specifications | packing |
| C30H2PES022N | 0.22μm | 6mm hose interface | Non sterile | 1 piece/box | Independent packaging |
| C30H2PES022S | 0.22μm | 6mm hose interface | sterilization | 1 piece/box | Independent packaging |
| C30H2PES045N | 0.45μm | 6mm hose interface | Non sterile | 1 piece/box | Independent packaging |
| C30H2PES045S | 0.45μm | 6mm hose interface | sterilization | 1 piece/box | Independent packaging |
| C30H2PES022080DN | 0.22μm+0.8μm | 6mm hose interface | Non sterile | 1 piece/box | Independent packaging |
| C30H2PES022080DS | 0.22μm+0.8μm | 6mm hose interface | sterilization | 1 piece/box | Independent packaging |
| C30N2PES022N | 0.22μm | 6mm threaded interface | Non sterile | 1 piece/box | Independent packaging |
| C30N2PES022S | 0.22μm | 6mm threaded interface | sterilization | 1 piece/box | Independent packaging |
| C30N2PES045N | 0.45μm | 6mm threaded interface | Non sterile | 1 piece/box | Independent packaging |
| C30N2PES045S | 0.45μm | 6mm threaded interface | sterilization | 1 piece/box | Independent packaging |
| C30N2PES022080DN | 0.22μm+0.8μm | 6mm threaded interface | Non sterile | 1 piece/box | Independent packaging |
| C30N2PES022080DS | 0.22μm+0.8μm | 6mm threaded interface | sterilization | 1 piece/box | Independent packaging |
Main filtration products - Bag filter cartridge products
Using PP material as the shell, the（ φ 56 or φ 68) The filter element is welded to the outlet housing（ φ A type of filter element on 72/89 and welded together with the end caps on both sides.
| Bag filter cartridge MedCap- UTC | Size code | Cystic outer diameter /mm | Total length of capsule /mm | Filter diameter /mm | Effective filtration area /cm² | interface |
| C80 | Ø72 | 89-120 | Ø56 | 500 | 1/8”NPT | |
| 1/4”NPT | ||||||
| 3/8”NPT | ||||||
| 1/2”NPT | ||||||
| 1/8" Hosebarb | ||||||
| 1/4" Hosebarb | ||||||
| 3/8" Hosebarb | ||||||
| 1/4"-1/2" | ||||||
| Stepped | ||||||
| Hosebarb | ||||||
| C150 | Ø72 | 114-143 | Ø56 | 1000 | 1/4"-3/8 | |
| C200 | Ø72 | / | Ø56 | 1500 | Stepped | |
| C300 | Ø72 | 172-202 | Ø56 | 2100 | Hosebarb | |
| C605 | Ø89 | 1.5"TC款287 | Ø68 | 3000 | 1 1/2" Tri- clamp&1" Tri- | |
| C610 | Ø89 | 1.5"TC款330 | Ø68 | 6000 | Clamp | |
| C620 | Ø89 | 1.5"TC款567 | Ø68 | 12000 | 1/2" Tri-clamp | |
| C630 | Ø89 | / | Ø68 | 18000 |
| ordering information | ||||||
| C80 | N2 | PESB | 10 | |||
| size | Import/Export | Filter material | accuracy | Sterility | ||
| FllterPod SPB | C80 C150 C300 |
N2 1/4.NPT | PESB | 010 0.10μm | Blank unsterilized Ggamma radiation |
|
| N3 3/8NPT | 020 0.20μm | |||||
| N4 1/2-NPT | 045 0.45μm | |||||
| NF2 1/4*FNP | C10 0.10+0.45μm | |||||
| NF3 3/8.FNPT | C20 0.20+0.45μm | |||||
| NF4 1/2"FNPT | D45 0.45+0.65μm | |||||
| H2M 1/4”Multiple Hosebarb | ||||||
| H3M 3/8”Multiple Hosebarb | ||||||
| H3 3/8”Hosebarb | ||||||
| H4 1/2”Hosebarb | ||||||
| HC 1/4"-3/8"Stepped Hosebarb | ||||||
| TCA 1 1/2'Trl-clamp&1"Trl-clamp(50.5mm) | ||||||
| TCB 1/2"Trl-clamp&3/4"Trl-camp(25.4mm) | ||||||
| MedCap SPB | C605 C610 C620 C630 |
TCA 1 1/2'Trl-clamp | ||||
-
