Products Description

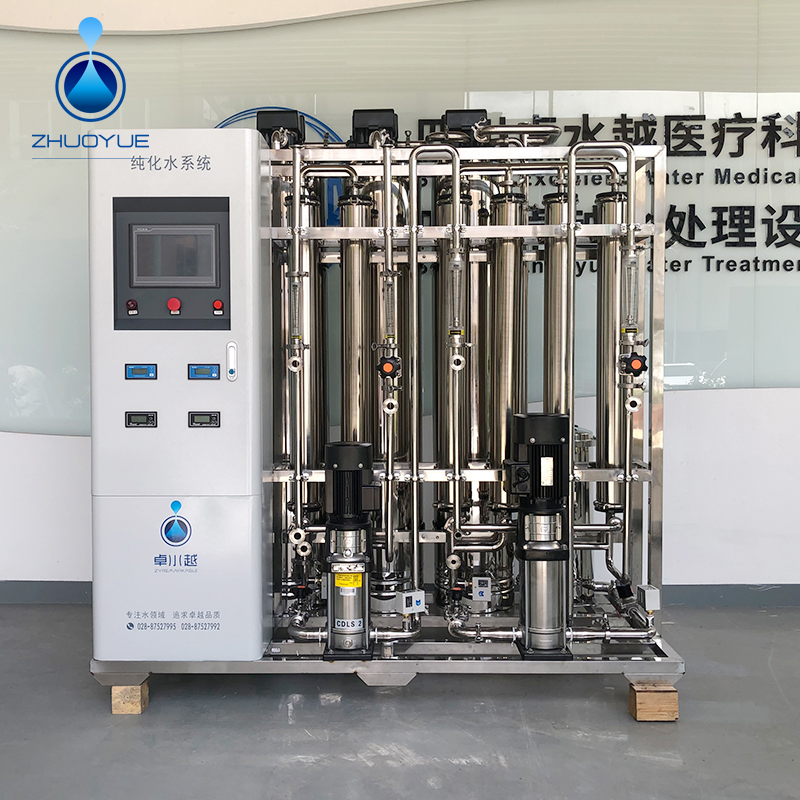

Purified water system of ZYCHS series preparation room

Product description of purified water system in preparation room

The hospital preparation room is the place where the hospital prepares preparations. Its main task is to prepare Pharmacopoeia preparations (including "ministerial standards" and "local standards") and prefabricated drugs prescribed by the hospital, such as mixtures, solutions, powders, ointments, tinctures, suspensions, suppositories, tablets, films, capsules, etc. In addition, the sterilization preparation room is responsible for large-scale infusion, injections and eye drops of various specifications. The hospital preparation room needs purified water that meets the GMP specifications of the Pharmacopoeia. The whole system is made of SUS304 or SUS316L all stainless steel. Before the water point, it must be equipped with UV or ozone sterilization or pasteurization system. New technologies such as pretreatment, reverse osmosis and EDI are adopted to design a complete set of purified water treatment process for the preparation room, which fully meets the requirements of GMP, so as to meet the purified water requirements of pharmaceutical and medical industries.

Technical parameters of purified water system in preparation room:

Product parameters

1. Water capacity: 0.25m3 /h ~ 10 m3/h (refer to the water consumption model of users); 2. Ion removal rate ≥ 99%; Removal rate of

endotoxin and bacteria: ≥ 99%; 3. Primary recovery rate: 60%-65%, secondary recovery rate ≥ 75% (adjustable); 4. Product water

quality: meet the purified water standard of Chinese Pharmacopoeia 2020; Conductivity of purified water ≤ 2 ~ 5.1us/cm;

Microorganism < 100cfu/ml Comply with the purified water for in vitro diagnostic reagents YY/T1244-2014 standard (add EDI Series);

Conductivity of purified water ≤ 1.0us/ cm@25 ℃ (conversion resistivity ≥ 1.0 m Ω cm@25 ℃）； 5. Water inlet requirements: municipal

water supply, water supply pressure: 0.2 ~ 0.4MPa; Inlet water temperature: 5 ~ 40 ℃; 6. Ambient temperature: 5-40 ℃, humidity ＜

85%RH, no dust and strong electromagnetic interference;

Model list

Model	Capacity （L/H）	Host voltage/power (V/Kw)	Product size (LWH mm)	Purified water tank (L / stainless steel)	Water quality
ZYCHS-250L	250	380 / 3.1	20008001600	250/ SUS304/316L	In line with the national pharmacopoeia purified water standard conductivity ≤ 2-5.1uS/cm
ZYCHS-500L	500	380 / 3.2	20008001600	500/ SUS304/316L
ZYCHS-1000L	1000	380 / 4.8	20008001600	1000/ SUS304/316L
ZYCHS-1500L	1500	380 / 4.9	20008001600	1500/ SUS304/316L
ZYCHS-2000L	2000	380 / 7.9	25008001700	2000/ SUS304/316L

The process flow

The technology process is divided into source water pretreatment system,reverse osmosis system and ultra-pure system.

1. Source water pretreatment system: PP fiber filter + AC filter + Softener

2. Reverse osmosis system: It has high removal rate more than 99% for high valent ions, colloids, bacteria and organic matter

(including endotoxin) with molecular weight greater than 300Dalton.

3. Ultra pure system: Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the

water , the replaced H + and OH- combined to produce H2O, ultra-purified column filling the United States Dow UPW-450 Ultra-pure

water for nuclear grade resin, the water resistance of up to 18.25 MΩ.cm.

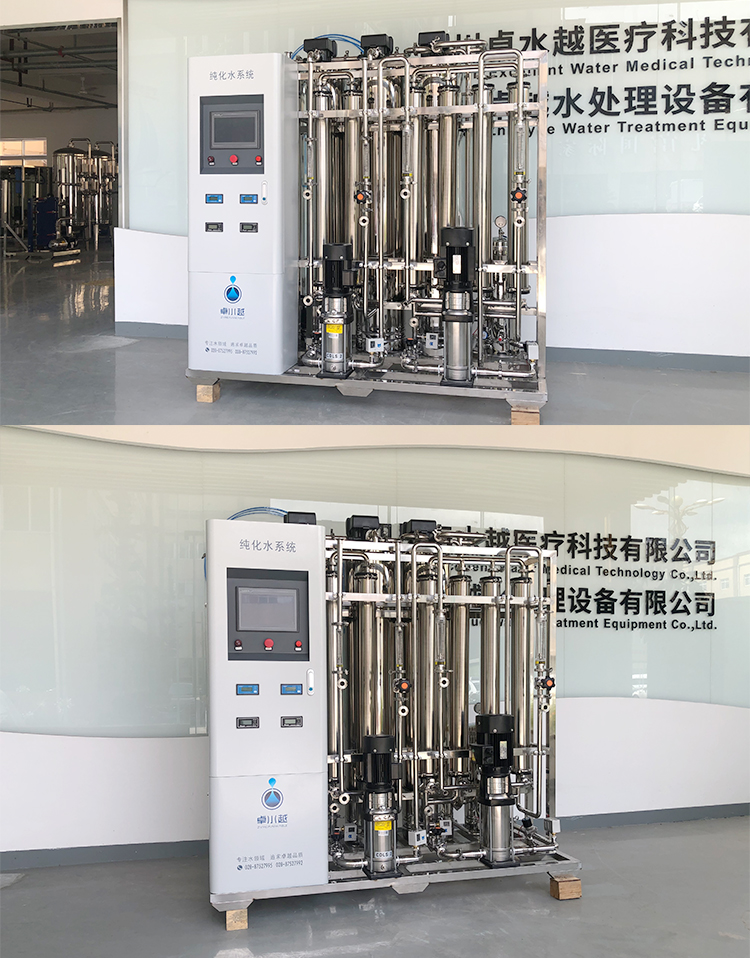

Product exhibition

Sichuan Zhuoyue Water Treatment Equipment Co.,ltd is a integrated water treatment manufacturer with scientific research, design, production, sales, installation,after-sales services in Chengdu City, Sichuan Province, China, specializing in the production of laboratory ultra-pure water machine, medical water machine, pure /ultra-pure water equipment,water softener and other related water treatment equipment. Our 1500㎡modern factory is located in Rongzhi Innovation Industrial Park at Pixian modern industrial road, While 300㎡Sales Department office is located in Jinfu International Building, Jinniu District. Nowadays, the number of company staff is up to 100 and more. And also a complete after-sales service network is set up all over the country.
