FlexFlow® ShearStress Device

Thank you for your interest in flexcell products

Bio Excellence international Tech Co.,Ltd has been acting as sole agent for the sale of flexcell products for more than ten years,Bio Excellence can provide free technical guidance for flexcell tension, compression, fluid shear products, user site installation as well as training, until the user can use them without limiting number of training times.If you have any questions, please do not hesitate to contact us.

A parallel plate laminar shear stress device that allows the user to observe signaling responses to fluid flow and/or apply strain (up to 4%) to cells before, during, or after applying a shear stress.

• Test cell alignment response to fluid flow
• Culture your cells on matrix bonded surfaces using StageFlexer® Membranes or Culture Slips®.
• Regulate shear stress from 0-35 dynes/cm² using a computer-controlled peristaltic pump

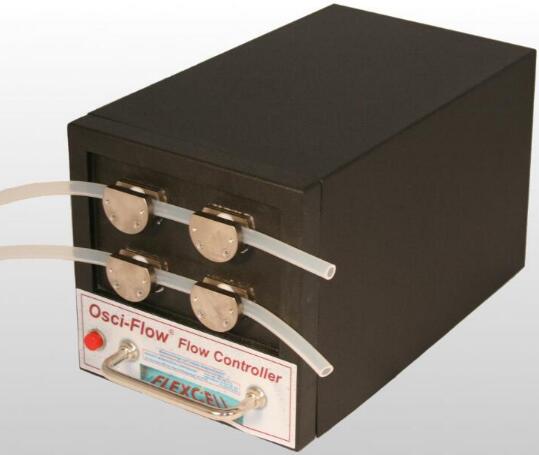

• Use with the Osci-Flow® Flow Controller to regulate the frequency of oscillation or pulsatile flow patterns

Uses a computer controlled peristaltic pump to regulate shear stress from 0-35 dynes/cm2 .  Strain cells using a Flexcell® Tension System before, during, or after applying shear stress.  Culture cells on matrix bonded surfaces (StageFlexer® membranes or Culture Slips®).  View cell responses to flow and/or strain in real-time with an upright microscope.

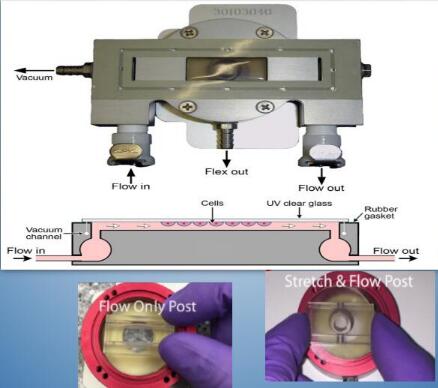

The FlexFlow® is a parallel plate laminar flow device designed to apply fluid shear stress and/or cyclic strain to cells in culture while providing a means for
viewing cell activity under a microscope in real time. The FlexFlow® fits on the stage of a standard upright microscope and holds both Flexcell® Culture Slips® and StageFlexer® membranes.

Integrate with the FX-6000T system, which can stretch the cells while providing fluid shear stress, and detect the real-time response of blood vessels and nodular tissue cells to fluid flow.

StageFlexer® Membranes

Flexible growth surfaces that are individually packaged membranes for the StageFlexer® or FlexFlow® dynamic culture products.

• 43mm clear silicone rubber membranes for direct viewing of cells
• Viscoelastic under mechanical loading
• Membranes are in a closed SpillGuard® culture dish to maintain sterility even after outer packaging is opened
• Covalently bound matrix surfaces: Untreated, Amino, Collagen (Type I or IV), Elastin, Pronectin® (RGD), and Laminin (YIGSR)
• Available in a pack of 6 or case of 36 culture slips

Culture Slips® Microscope Slides

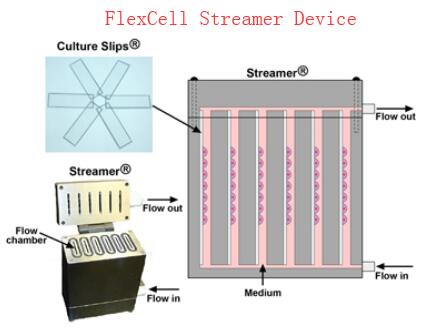

Works with the Streamer® and FlexFlow® systems. Each slip is matrix treated to promote cell attachment.

• Culture Slips® are available in two sizes: 75 mm x 25 mm x 1.0 mm (for Streamer® or FlexFlow®), 76 mm x 25 mm x 1 mm (for FlexFlow® only)
• Culture Slips® are rimmed with a 1.0 mm wide Teflon® border to help limit cell culture growth to the portion of the slip exposed to fluid flow
• Covalently bound matrix surfaces: Untreated, Amino, Collagen (Type I or IV), Elastin, Pronectin® (RGD), and Laminin (YIGSR)
• Available in a pack of 6 or case of 36 culture slips
