Product Overview:
1.Large backlighting LCD display that making parameters setting and viewing easily. Keyboard blocking prohibits miss operation.
2.Triple-eccentric drive is precisely counterbalanced to impart smooth, uniform motion to all flasks
regardless of their position on the platform.
3.Forced air circulation via low noise fan ensures a homogenous air mixture.
4.Audible and Visible Alarms alert the user and automatic power-off under abnormal conditions.
5.Automatic restart after power interrupt with Non-Volatile Memory keeps studies running
smoothly.
6.Stainless interior chamber with rounded corners easy to clean and protect bacteria breeding.
7.Insulating and tempered glass door provides good view of incubating state without opening lids.
8.High quality and low noise imported CFC free compressors ensure refrigeration effect and stable.
9.The EMC (Electromagnetic Interference) design makes machine more accurate and stable.
10.Open-Door Cutout Switch stops agitation when chamber is open providing a more favorable
work environment.
11.With ultraviolet sterilization function.
Specifications:
1.Servo-motor makes speed control precisely and ensures high-speed performance and stability.
2.Timing frost removing function, the timing range is 1to 89minutes and the defrost interval is
30-600 minutes adjustable, ensures machine working long time in low temperature
without ice block.
3.With adjustable support foot and roller for easy movement.
4.Special designed vent satisfy the oxygen need of sample.
5.Product can be updated to LCD Touch Screen that making parameters setting and viewing easily. Such as:
a.The setting temperature, speed, time and the real temperature, speed, remaining time are shown simultaneously.
b.Keyboard blocking prohibits miss operation.
c.Setting rotation direction is positive or reverse.
d.Setting circulation fan opens normally or automatically.
e.The data easily transfer through the USB interface.
6.The plastic molding clamps make it easily to put and take flasks with one hand.
Tech. Parameters:
|
Product Name
|

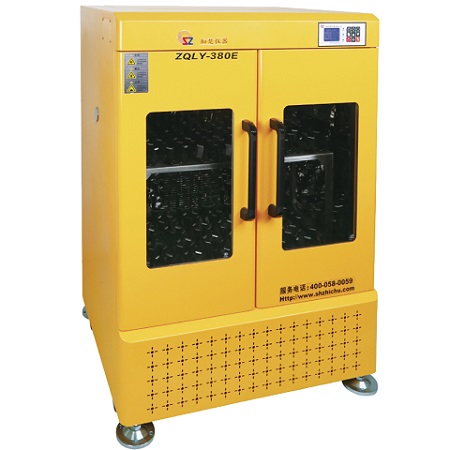

Large Capacity Floored Refrigerated Shaking Incubator
|
|
Model
|
ZQLY-380E
|
|
Shaking Range
|
10-300rpm
|
|
Shaking Control
|
±1rpm
|
|
Orbit (Diameter)
|
φ26mm(standard)φ50mm(optional)
|
|
Temp. Range
|
4~60℃(at 23℃~25℃)
|
|
Temp. Accuracy
|
±0.1℃
|
|
Temp. Uniformity
|
±1℃
|
|
Display
|
LCD
|
|
Air circulation
|
Forced air circulation
|
|
Parameter Control
|
P.I.D Microprocessor
|
|
Max. Capacity
(Stainless steel clamps)
|
250ml×50 or 500ml×32 or 1000ml×18 or 2000ml×10
|
|
Max. Capacity
(Plastic cement clamps)
|
250ml×50 or 500ml×32 or 1000ml×18 or 2000ml×10
|
|
Timer Range
|
0-999.9 hrs.
|
|
Platform Size
(L×W)
|
786mm×455mm
|
|
Power Source
|
AC220±10%(110V is optional) 50~60Hz
|
|
Overall Dimensions (L×W×H)
|
1162mm×780mm×1430mm
|
|
Weight
|
265kg
|
|
Noise Level
|
<55dB
|
