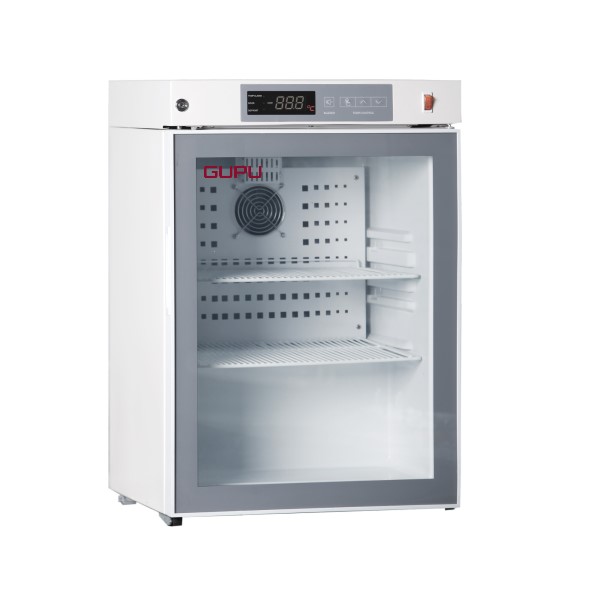

GUPU Small Capacity Single Glass Door Pharmacy/Medical Refrigerator 75L with ISO, CE
GUPU Small Capacity Single Glass Door Pharmacy/Medical Refrigerator 75L with ISO, CE
Place of Origin:
China
Brand:
GUPU
Model:
GPR-S75G GPR-S125G GPR-S230 GPR-S320 GPR-S410 GPR-D680 GPR-D1000 GPR-T1550
Supplier:
GUPU BIOTEC (XI'AN) CO. LTD.
Price:
Hits:
490
Updated:
5/21/2021
Related Products | Other Products | Related Suppliers
  • Product Detail
  • Company Profile
    Model GPR-S75G GPR-S125G GPR-S230 GPR-S320 GPR-S410 GPR-D680 GPR-D1000 GPR-T1550
    Size
    Capacity(L/cu.ft) 75\2.11 125\4.42 230\8.12 320\11.12 410\14.69 680\24 1000\35.31 1550\54.74
    Standard Shelf/drawer
    APS: Anti-corrosion Painted Steel
    SS: Stainless Steel    		 APS Shelves/2 APS Shelves/3 APS Shelves/4 APS Shelves/5 APS Shelves/5 APS Shelves/10 APS Shelves/10 SS Shelves/12
    Exterior Size(W*D*H)(mm) 480*450*535 500*503*1292 580*560*1785 640*582*1880 780*580*1920 1220*642*1885 1220*872*1885 1800*775*1965
    Interior Size(W*D*H)(mm) 400*415*447 418*390*761 500*420*1090 540*425*1380 685*429*1380 1100*454*1325 1100*684*1325 1680*640*1420
    Package Size(W*D*H)(mm) 555*505*610 575*580*1365 730*675*1915 710*655*1960 880*640*2100 1335*715*2050 1330*940*1970 1910*855*2155
    NT./GT.(kg) 22/24 53/575 63/65 92.5/100 120/133 158/188 207/237 170/190
    CBM 0.17 0.46 0.94 0.91 1.18 1.96 2.46 3.52
    Performance
    Temperature Range 2-8℃
    Temperature Accuracy 0.1℃
    Temperature Vibration ±3℃
    Climate/ Ambient Temperature SN (10-32℃)
    Noise(db) 50 47.5 46 50 50 52 53 55
    Refrigeration System
    Refrigerant R600a R600a R134a R600a R600a R600a R600a R134a
    Cooling Forced-air cooling
    Defrost Auto
    Compressor Brand/Qty CHINA BRAND/1 SECOP/1
    Insulation PURF
    Control System
    Temperature Controller Microprocessor
    Sensor NTC
    Display Digital LED display

    Power
    Voltage Frequency(V/Hz) 220V±10%, 50Hz/60Hz； 110V/60Hz
    Power Consumption(kWh/24h) 1.2 1.65 2.56 1.64 5.75 5.75 6.23 8
    Power(W) 87W 150W 254W 226W 175W 310 310W 1110W
    Current(A) 0.62A 0.8 1.15 1.03 1.26 1.7 1.75 3.8
    Construction
    Inside Material Anti-corrosion painted steel Stainless steel
    Outside Material Anti-corrosion painted steel Stainless steel
    Outer Door Glass
    (Low-E: Excellent insulation and good light transmission)    		 1/Double glazed insulated LOW-E toughened glass doors 2/Transparent glass door with sealing joint strip with automatic rebound.
    Heating film prevents frost    		 3/Double glazed
    insulated LOW-E toughened glass doors
    Foot or Caster Foot Foot Caster & Foot Caster & Foot Caster & Foot Caster Caster Caster
    Audible and Visual Alarms
    High/Low Temperature Standard
    Power failure Standard
    Thermostat failure Standard
    Door ajar Standard
    Accessories
    Lamp LED
    Power failure backup system(alarm) 8h
    Door Lock 1 1 1 1 1 2 2 3
    Test Hole QTY/diameter 1/25MM Optional Optional 1/25MM 1/25MM 1/25MM 1/25MM Optional
    USB port Optional /
    Temperature Recorder Optional
    Remote alarm port Optional
    RS232/485/ port Optional



    DESCRIPTION

    Application:

    The pharmacy refrigerators are suitable for refrigeration storage solution drug stores,pharmaceutical companies,hospitals,epidemic prevention centers and clinics.



    Features:

    * Double-layer glazed insulated LOW-E toughened glass door

    * Internal and external is anti-corrosion painted steel

    * Standard test hole 25mm

    * LED lamp



    Alarm  Alarm Triggering Condition
    High Temperature Temperature reaches the warm alarm limit
    Low Temperature Temperature reaches the low alarm limit
    Power Failure Equipment loses power
    Door Ajar Door open period exceeds 5 minutes



    bio-equip.cn
    RIGHT HERE IN CHINA

    GUPU BIOTEC (XI'AN) CO. LTD. is located in the ancient city of Xi’an, the vital national transportation hub, serving as a bridge between the eastern and western regions of China. Worldwide speaking, Xi’an Hi-tech Industries Development Zone, situated at the eastern end of the ancient Silk Road, is a bridgehead connecting China with Belt and Road countries and regions.

    Who We Are(图1)

    FOCUS IN THE FIELD

    GUPU BIOTEC CHINA is right here, committed to become a long-term one-stop-solution partner for customers worldwide with a growing range of reliable laboratory, analytical, life science, and medical instruments and equipment. The founders are engaged in the field of reliable quality laboratory and medical equipment R&D, marketing for more than 10 years.

    The pursuit of continuous innovation in technology, improvement in quality, and reliability in customer experience, combined with an experienced and motivated team has enabled us to build solid long-term relationships with our customers.
