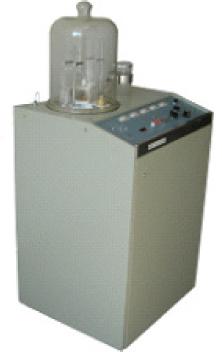

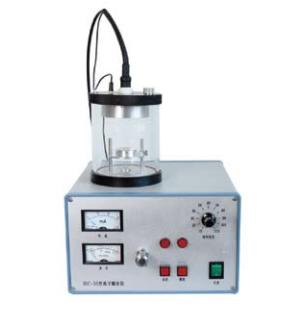

GVC-2000 magnetic sputtering coater
1. use single chip microcomputer and other microprocessors to control;
2. LCD display, the screen is not less than 5 inches;
3. The maximum sputtering current is not less than 45mA and the minimum sputtering current is not more than 5 mA;
4. The sputtering vacuum degree can be set arbitrarily, and the minimum adjustment amount is 0.1Pa；
5. The working parameters of no less than 5 kinds of targets can be stored;
6. The longest sputtering time is not less than 600 seconds;
7. Have current protection or vacuum protection function to ensure equipment safety when the current is too large and the vacuum degree is poor;
8. The limit vacuum is better than 1 Pa;
9. Real-time curve can be used to display sputtering current and vacuum degree.
