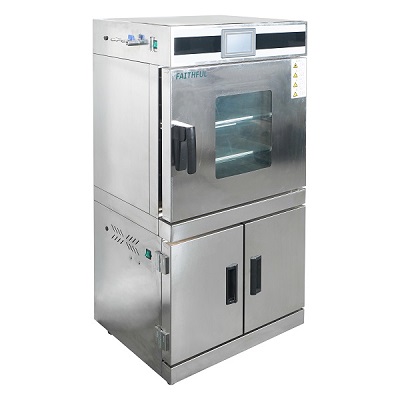

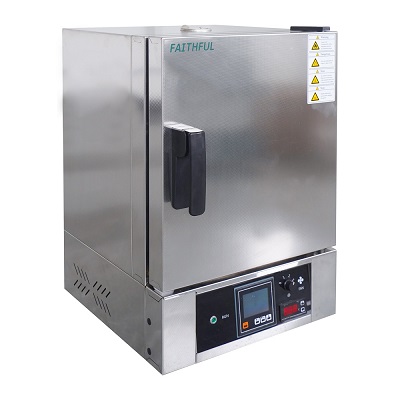

Forced Air Drying Oven
Characteristics:
1.Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
2.PID controller, with over-temperature protection function.
3.With fan switch,LED digital display,high temperature blast motor.
4.New anti-hot handle
WGLL-BE series have the following characteristics other than the above functions.
5.LCD temperature controller.
6.4 gears & 3 speed fan, adjustable for different requirements.
7.Over-temperature protection system.
8.Independent temperature limiter.
Main Technical Parameters:
|
Model
|
WGL-30B
|
WGL-45B
|
WGL-65B
|
WGL-85B
|
WGL-125B
|
WGL-230B
|
WGL-625B
|
|
|
WGLL-30BE
|
WGLL-45BE
|
WGLL-65BE
|
WGLL-85BE
|
WGLL-125BE
|
WGLL-230BE
|
WGLL-625BE
|
|
Cycle Mode
|
Forced Convection |
|
Function
|
Temp. Range
|
RT+10-300℃
|
|
|
Temp. Resolution Ratio
|
0.1℃
|
|
|
Temp. Motion
|
±1℃
|
|
|
Temp. Uniformity
|
±2.5%
|
|
Structure
|
Inner Chamber
|
Mirror Stainless Steel
|
|
|
Outer Shell
|
Cold rolling steel electrostatic spraying exterior
|
|
|
Insulation layer
|
High quality rock wool board(with CE)
|
|
|
Heater
|
Stainless steel heater
|
|
|
Power rating
|
0.8kW
|
1.2kW
|
1.6kW
|
2.0kW
|
2.3kW
|
3.0kW
|
5.0kW
|
|
|
Exhaust hole
|
φ28mmtop(with function of test hole)
|
Rear exhaust
|
Top double exhaust
|
|
Controller
|
Temp. control mode
|
Two temperature section PID intelligent
|
|
|
Temp. setting mode
|
Touch button setting
|
|
|
Temp. display mode
|
B model: Measuring temperature: display on the four digital tubes upper row, setting temperature: display on the lower row
|
|
|
|
BE model: Measuring temperature display on upper LCD screen， setting temperature display on the lower row
|
|
|
Timer
|
0-9999min(with timing wait function)
|
|
|
Operation function
|
Fixed temperature operation, timing function, auto stop.
|
|
|
Additional function
|
B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
|
|
|
|
BE model: Mechanical independent temperature limiter, 3-grade adjustable speed fan (230BE without fan speed adjustor),sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
|
|
|
Sensor
|
pt100
|
|
Specification
|
Inner Chamber size(W*L*H)(mm)
|
310*310*310
|
350*350*350
|
400*360*450
|
450*420*450
|
500*450*550
|
600*500*750
|
660*760*1250
|
|
|
Exterior size (W*L*H)(mm)
|
450*500*690
|
490*540*730
|
540*550*830
|
590*610*830
|
640*640*930
|
730*680*1250
|
890*925*1830
|
|
|
Packing size (W*L*H)(mm)
|
550*585*845
|
590*625*885
|
640*635*985
|
690*695*985
|
740*725*1085
|
860*790*1400
|
1000*1080*2000
|
|
|
Volume
|
30L
|
45L
|
65L
|
85L
|
125L
|
230L
|
625L
|
|
|
Shelf number
|
6
|
7
|
9
|
8
|
13
|
17
|
7
|
|
|
Load per rack
|
15kg
|
|
|
Shelf space
|
35mm
|
150mm
|
|
|
Power rating (50/60HZ)
|
AC220V/3.6A
|
AC220V/5.5A
|
AC220V/7.2A
|
AC220V/9.0A
|
AC220V/10.5A
|
AC220V/13.6A
|
AC380V/7.6A
|
|
|
NW/GW (kg）
|
33/37
|
37/43
|
44/49
|
50/56
|
60/66
|
94/120
|
120/160
|
|
Accessory
|
Shelf
|
2
|
|
|
Shelf frame
|
4
|
|
optional accessories
|
B model: Shelf; BE model: Shelf,RS485 interface, printer, program temperature control device, remote control, wireless SMS alarm, USB data storage
|
