100L Jacketed Glass Reactor price
100L Jacketed Glass Reactor price
Place of Origin:
China
Model:
TOPT-100L
Price:
USD5000
Hits:
35
Updated:
11/12/2019
  • Product Detail
  • Company Profile

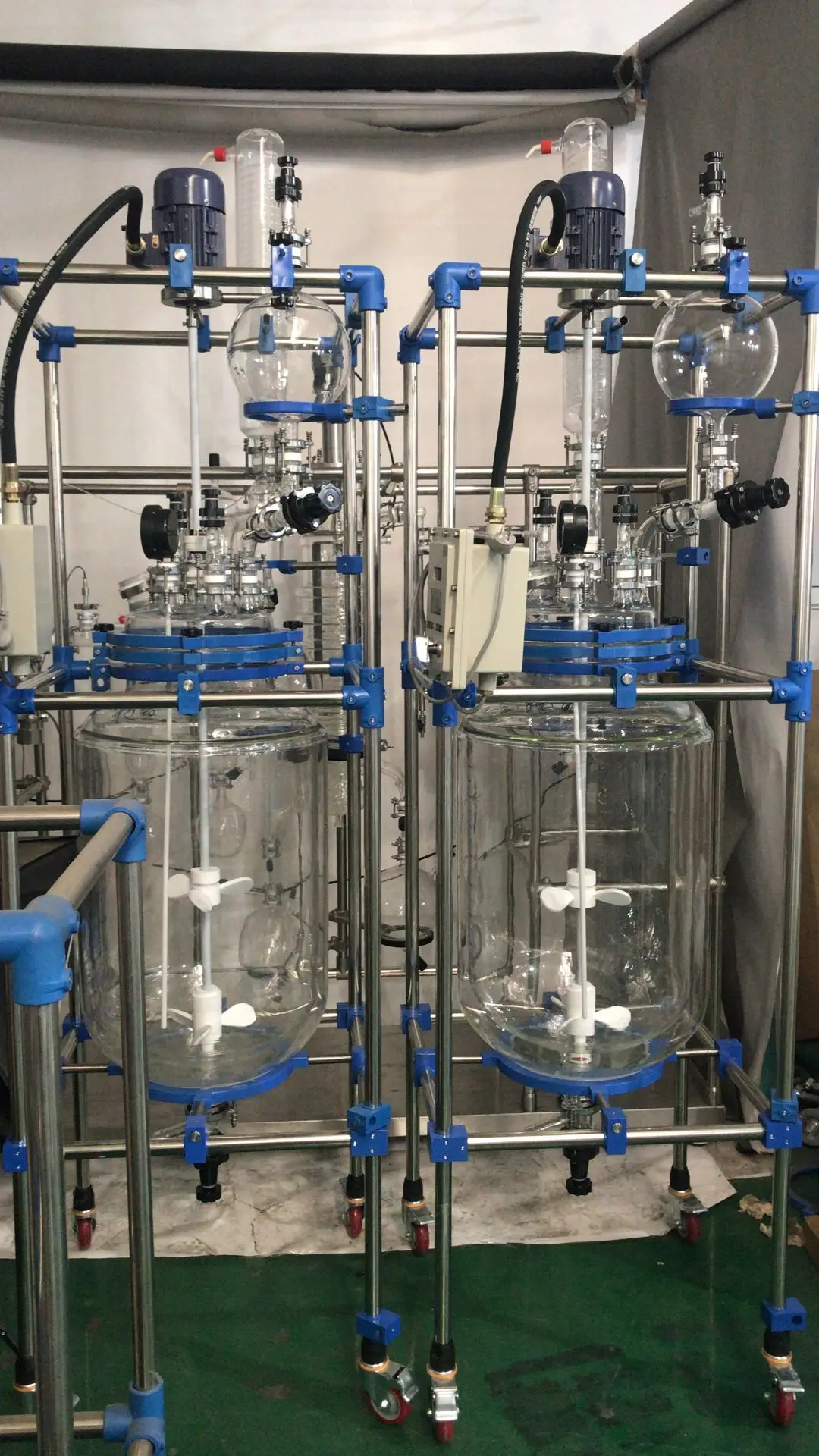

    100L Jacketed Glass Reactor



    Product Description Of 100L Jacketed Glass Reactor



    The double-layer glass reactor is a double-layer glass design. The inner layer of the double-layer glass

     reactor / double-layer glass reactor is placed in the reaction solvent to make the stirring reaction.

    100L Jacketed Glass Reactor



    Technology Parameters Of 100L Jacketed Glass Reactor





    Technology

    parameters

    TOPT-50L

    TOPT-80L

    TOPT-100L

    Stir medium flange

    50

    50

    60

    Liquid material inflow

    34# 1L

    5L 24#

    5L  24#

    Condenser

    34#

    DN40 ball mouth

    DN40  ball mouth

    Temp. measure

    DN15

    DN15

    DN15

    Multi function valve

    DN25

    DN25

    DN25

    Solid  charging

    port

    DN80

    DN80

    DN80

    Stirring paddle

    16mm double layer three blade paddle type

    16mm three layer three blade paddle type

    16mm three layer three blade paddle type

    Reactor lid flange(mm

    265

    340

    340

    Inner diameter of reactor   body(mm)

    365

    410

    460

    External diameter(mm)

    410

    460

    500

    Reactor body   height(mm)

    850

    950

    950

    Power

    (w)

    140

    250

    250

    Rotate speed

    (rpm)

    50-600

    50-600

    50-600







    Product Advantage Of 100L Jacketed Glass Reactor





    1.High quality High borosilicate glass 3.3.Our glass material is with even thickness and there

     is no foam in it.



    2.Stirring seal plug adopts ”mechanical seal, dynamic ring and the static ring buckle Principle”.



    3.Our motor is with stable function.



    4.Our speed regulator is with frequency adjustment.



    5.We use stainless steel screws for all screws, and galvanized screws for other factories.



    6.The whole support frame is with stainless steel (thickness less than 1.5mm).




    7.Stirrer is with full coated PTFE. Most other suppliers is half coated PTFE to save cost.



    8.All our seal material is high quality PTFE.



    9.Bottom discharge is with perfect design and high quality material to ensure no liquid leakage.

    bio-equip.cn
    Toption Company professional Lab solution provider ,mainly manufacture for glass reactor, stainless steel reactor, photochemical reactor, rotary evaporator, short-path molecular distillation, labglassware, freeze dryer , spray dryer, ultrasonic cleaner, ultrasonic homogenizer, and also deal kinds of oven & Incubator, Centrifuge, Autoclave, Shaker, Stirrer, Freezer,Fume Hood, Laminar Flow Cabinet, etc.
