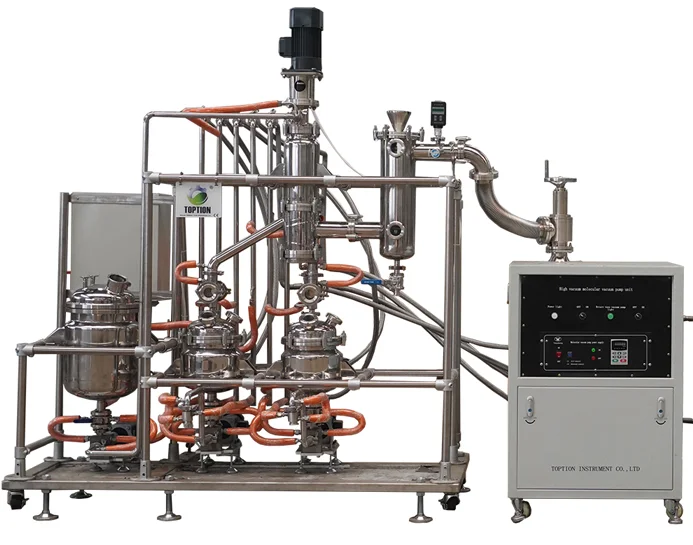

cbd oil extraction distillation serpentine evaporator two stages molecular distillation machine
cbd oil extraction distillation serpentine evaporator two stages molecular distillation machine
Place of Origin:
China
Brand:
Toption Group Co., ltd
Model:
MDS-10CE two stages molecular distillation machine
Price:
USD10000~20000
Hits:
1290
Updated:
11/24/2021
  • Product Detail
  • Company Profile



    cbd oil extraction distillation  serpentine evaporator two stages molecular distillation machine



    Introduction of Molecular Distillation/Short Path Distillation

    Molecular Distillation/Short Path Distillation is a comparatively new separation technology. It can separate liquid-liquid mixture under temperature that is far lower than boiling point by the difference of mean free path of molecules under high vacuum condition.

    The Technical Specification of  2 stage MDS-10C short path distillation:

    Type of molecular distillation

    MDS-10CE

    Maximum distillation temperature

    300 °C

    Minimal achievable operating pressure

    (depending on product)

    < 0.001mbar with rotary vane pump and oil diffusion vacuum pump.

    Throughput (depending on product)

    5~12kg/h

    Evaporation surface

    0.1 m²

    Surface of internal condenser

    0.1 5m²

    Wiped film system

    Scraper type film scraping rotor

    Maximum viscosity of product can be processed

    Under operating temperature:

    5000  centipoise.

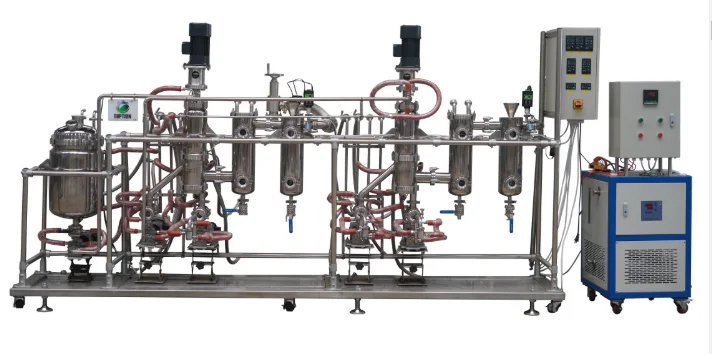

    Detail introduction of two stage MDS-10C short path molecular distillation

    1. Material feeding system:

    - Feed tank: 10L jacketed glass tank.

    High precision gear pump feeding (3-15L/H), jacket design, can be heated and achieve heat preservation by circulating heat conduction oil.



    2. Short path evaporator:

    Material (contact with products): S304 stainless steel.

    Evaporator surface: 0.1M2.





    Note: The end of the pipe mouth is also a jacket design, no heating dead Angle, make heat preservation be more comprehensive.

    3. Heavier component discharge system:

    -Continuously gear pump feeding (3-15L/H).

    4. Lighter component discharge system:

    Continuously gear pump feeding (3-15L/H).

    5. Heating & Cooling Unit:



    Note:

    1) Medium: not within the scope of supply.

    2) The system is equipped with all necessary connections (the heat insulation pipe is made of stainless steel) to connect molecular distillation equipment.

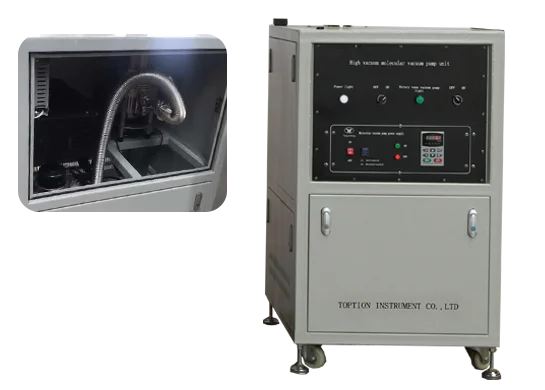

    6 Vacuum degree 0.05pa(0.0005Mbar), need to equipped with oil pump + molecular pump

    cbd oil extraction distillation  serpentine evaporator two stages molecular distillation machine

    More details of TOPTION molecular distillation

    cbd oil extraction distillation  serpentine evaporator two stages molecular distillation machine

    cbd oil extraction distillation  serpentine evaporator two stages molecular distillation machine



    Packaging & Shipping



    cbd oil extraction distillation  serpentine evaporator two stages molecular distillation machine

    Certifications

     ISO9001:2008 & CE quality certification, products' quality management system, for every delivery instrument, we have professional quality manager team to cheak, then sign product certification and warranty card. Protect your research and business safe.

    cbd oil extraction distillation  serpentine evaporator two stages molecular distillation machine

    bio-equip.cn
    Toption Company professional Lab solution provider ,mainly manufacture for glass reactor, stainless steel reactor, photochemical reactor, rotary evaporator, short-path molecular distillation, labglassware, freeze dryer , spray dryer, ultrasonic cleaner, ultrasonic homogenizer, and also deal kinds of oven & Incubator, Centrifuge, Autoclave, Shaker, Stirrer, Freezer,Fume Hood, Laminar Flow Cabinet, etc.
