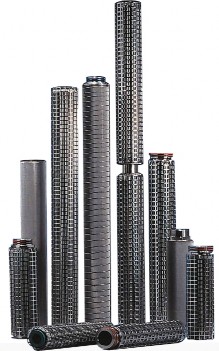

SupaMesh stainless steel filter cartridges are for use in a wide range of applications and industries, suitable for use in both liquids and gases.
All SupaMesh cartridges are manufactured from 316 stainless steel throughout. They are available in both plain cylindrical and pleated
configurations, using the very latest in high specification mesh or sintered metal fibre media. Each design provides a simple sleeve of filter medium supported by a central core. The pleated design provides over twice the effective filtration area of the cylindrical cartridge. The plain cylindrical sintered metal powder cartridges are self supporting.
In all designs, the construction method used is fully welded with no adhesives or glues used. This method of construction guarantees cartridge integrity, eliminating the risk of bypass and the presence of extractables derived from any bonding agents.
Features and Benefits
All 316 stainless steel construction for wide chemical resistance
Individually marked with full product code
Choice of precision woven wire, sintered metal fibre and sintered powder media
Wide range of ratings from 3µm through to 840µm
Fully welded construction for all grades
Full material traceability
Suitable for use from -150ºC to 300ºC
No adhesives or bonding agents use
Junior (56mm) and Standard (66mm) diameters
Industries and Applications
Pharmaceuticals • Steam, Solvents, Chemicals
Fine Chemicals • Polymers, Acids, Bases, Solvents
Cosmetics • Alcohol, Creams, Lotions, Waxes, Oil based solution
Water Treatment • Potable water, Resin trap
Automotive • Blanking wash oils, Mastic lines
Petrochemicals • Amine stream, Glycol solutions
Modular assembly up to 745mm (30”) long, 316 Stainless steel, welded for ultra clean assembly
Optional backwash cage for enhanced mechanical strength
SupaMesh cartridges are available with many standard industrial end cap configurations and seal materials, including the Junior size at 2.5 and
5” lengths. They are available with optional outer guards for reverse flow or backwashing to enhance their superior robust design.
The method of construction and materials used allow for use from –150ºC to +300ºC and up to 25 bar differential pressure in normal flow direction.
