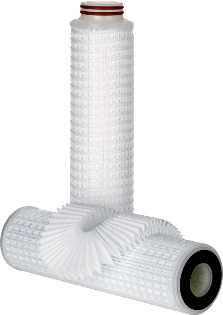

SupaPleat II high surface area pleated cartridges have been developed to suit industrial processes where high levels of efficiency and extremely low pressure loss are required. In-house developments have optimised the filter media to give higher levels of porosity, and state of the art manufacturing technologies give excellent build quality.

Three media options are offered as standard, the PP, GP and MP. The PP features the specific CRY

Cryptosporidium grade designed for Food and Beverage applications. All feature 100% polypropylene cage, core and end cap assembly.

Thermal welding processes seal all components, eliminating adhesives and extractables, and optimising cartridge integrity.

SupaPleat II PP cartridges feature:

Melt blown polypropylene media

Extended life version available

Wide chemical compatibility

Materials meet US FDA title 21 and USP Class VI requirements

Meets the requirements for food contact as detailed in European Regulation (EC) Number 1935/2004

CRY Cryptosporidium grade

SupaPleat II GP cartridges feature:

Glass microfibre media

Extremely high dirt holding capacity

SupaPleat II MP cartridges feature:

Nylon monofilament woven mesh media

High flow, low pressure loss

Absolute Rated Filter Media

Available from 0.5 to 400µm

Consistent reliable performance

Beta 5000 rating

Product Features

SupaPleat II filter cartridges are produced using an improved manufacturing process resulting in the following features:

One piece high strength all polypropylene support core up to 1017mm (40”)

High surface area, resulting in low clean ∆p and excellent dirt holding capacity

100% thermally welded construction for maximum integrity and strength

All polypropylene hardware

Optional high strength core for improved thermal stability at continuously elevated temperatures

Suitable for most sanitisation regimes including steaming, autoclaving, hot and most common sanitising agents.

(Note: Steaming, autoclaving and hot water sanitisation must use the Reinforced Polypropylene End Cap option)

Features and Benefits

Absolute removal ratings for consistent and reliable performance

PP - Wide chemical compatibility using 100% polypropylene to meet FDA requirements

XP - Extended life version for more challenging applications

GP - Glass microfibre media gives excellent dirt holding capacity

MP - nylon monofilament mesh offers selective retention with the ability to be cleaned

Thermal bonding process eliminates adhesives and ensures minimal extractables

Cryptosporidium grade (CRY) with typical 104 log reduction value for use in Food and Beverage applications

Batch traceability

ATEX compliant packaging as standard

All individual packing bags are anti static

See product validation guide for further details of test methods and rated efficiencies
