The SZX10 is specially designed for routine research. With a maximum numerical aperture (NA) of 0.2, producing a resolution of 600 line pairs per millimeter and a zoom ratio of 10:1, more information can be gained efficiently from samples. The range of objectives with outstanding working distances offers versatility, while the Galilean optical system provides a natural view and distortion-free observation. The innovative design ensures optimal visual comfort and ergonomic use. The SZX10 is suitable for oblique and bright field illumination, and compatibility with different imaging devices enables use with fluorescence and flexible imaging stations.

Versatile Stereo with Wide Zoom Ratio
Excellent Optical Performance with Natural View

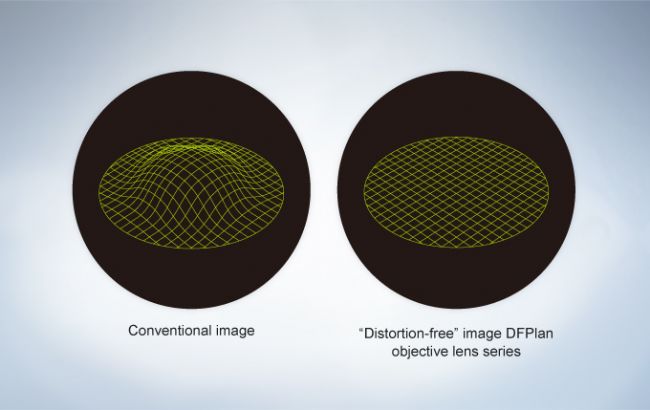

The SZX10 is designed to provide a completely natural view of the specimen with excellent stereo and color representation. The DFPlan series combines high-NA resolving power and working comfort with "distortion-free" optical design for exceptionally flat imaging, and includes a 2x objective lens with an NA of 0.2 for high-resolution imaging at 600 linepair per millimeter.

Wide 10:1 Zoom Ratio

The SZX10 covers a magnification range of 6.3x to 63x with its 1x objective, and offers up to 123x magnification with a 2x objective. Thanks to this wide-ranging 10:1 zoom ratio versatility, it's an ideal choice for life science applications that require low-magnification macro views for dissection and specimen manipulation, and ultra-sharp high-magnification views for close observation of cell structures.

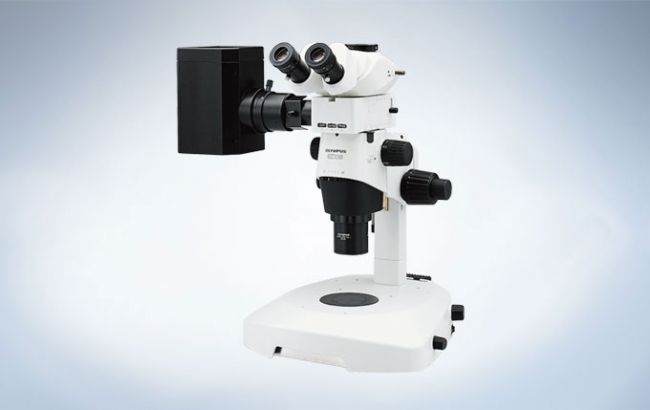

Simple Fluorescence Observation

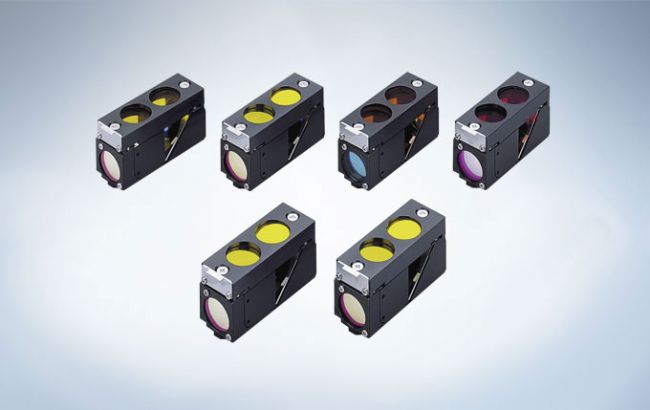

With the addition of a fluorescence unit, the SZX10 can also be used to observe expressed fluorescence proteins within an organism. The unit's high-performance fluorescence mirror component offers fast startup and high fluorescence detection efficiency for improved image quality.

Digital Imaging and Documentation

The SZX10 can also be equipped with a trinocular tube and Olympus DP series digital camera for high-resolution imaging and research documentation. DP series cameras offer the high sensitivity for a wide range of applications, including high-sensitivity fluorescence imaging, and can be easily controlled using Olympus cellSens software.

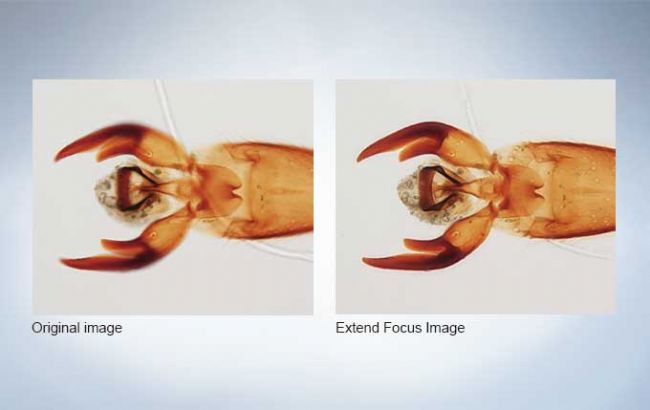

cellSens Extended Focus Imaging

Create a single in-focus image from successive image planes as the focus knob is turned using the Extended Focus Imaging (EFI) function. A motorized focus drive fully automates EFI acquisition. EFI composite images can also be created  directly from previously captured Z-stacks.

Ergonomic Design for Routine Research

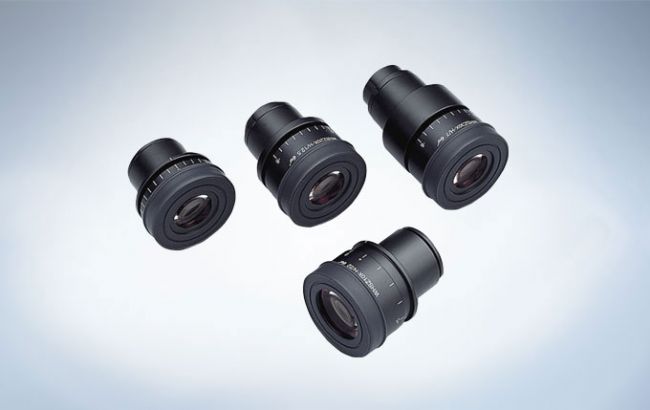

ComfortView Eyepieces for Reduced Eyestrain

The advanced ComfortView eyepieces enable a significantly larger range of eye movement for viewing the 3D image, making both short and long term use much more comfortable. This also makes it easier to form the stereo image, resulting in reduced occurrence of eyestrain. Also, superior optical coatings render true color images with fine detail.

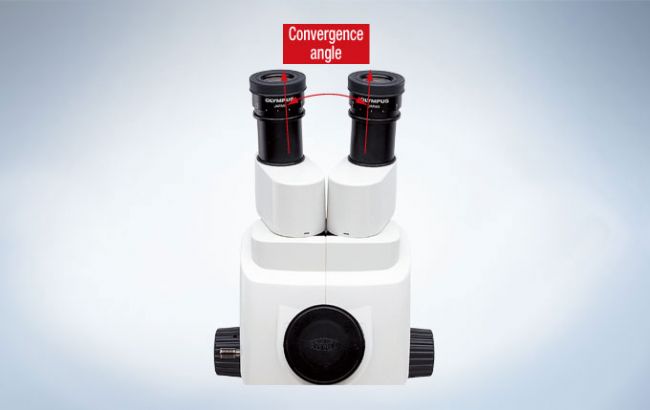

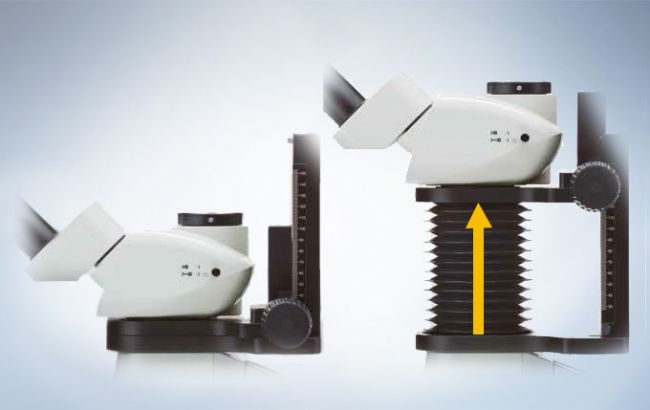

Ergonomic Observation Tube and Extendable Eyepoint Adjuster

The SZX2 series features observation tubes with an optimized convergence angle designed to enable users to make observations from a natural position that minimizes eye fatigue. This solution effectively eliminates eyestrain during long periods of observation.

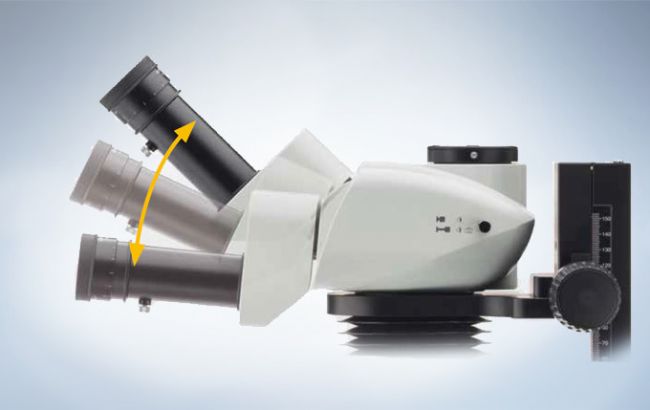

Our long tilting trinocular tube (SZX2-LTTR) improves the ergonomics of our stereo microscopes. This trinocular can be adjusted from 5 to 45 degrees to facilitate a more natural head and neck position while working. In addition, the eyepoint adjuster (SZX2-EEPA) enables users to raise or lower the eyepoint within a 120 mm range to accommodate users of different heights. The combination of these  reduce stress and fatigue by keeping users in a more natural posture while they’re working.

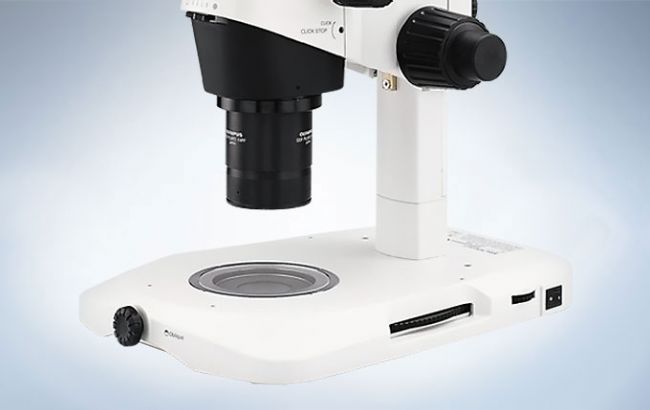

Ultra-Slim LED Base with Oblique Illumination

The LED base system provides fine control of transmitted illumination for bright and even images. The ultra-slim 40 mm base offers outstanding ergonomic stage height. A novel carousel facilitates selection and control of bright field and dark field illumination, and the long-life LEDs do not heat the stage or sample. The LED illumination system uses a fine shutter system of thin lamellae to produce ultra-precise and completely even oblique illumination.

Accessories for Every Purpose

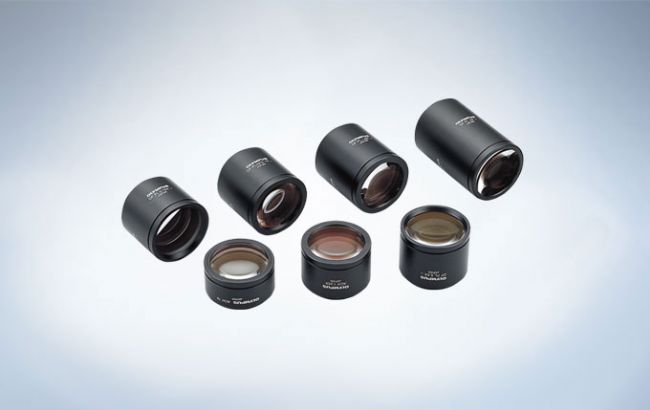

Choice of High-Performance Objectives

DFPL2x/DPFL1.5x /DFPL 0.75x /DFPL 0.5x
The DFPL series of objectives accurately reproduce specimen shapes with outstanding color fidelity.
DFPLAPO 1.25x /DFPLAP01x4
Apochromatically corrected to achieve the highest degree of performance. Excellent in resolving power, contrast, and image flatness with minimum distortion.
SZX-ACH1.25x /SZX-ACH1x
Provides well-balanced objectives that combines high resolving power with long working distance.

Choice of Optimum Illumination Bases

SZX2-ILLT
Ultra-slim transmitted-light solution for normal brightfield, enhanced contrast brightfield, darkfield and oblique illumination. At just 41 mm, the bright LED base is half the height of the normal bases and yet offers amazing flexibility, ergonomics and robustness for both experienced and first-time users.

SZX2-ILLK
Transmitted-light stand for brightfield and oblique illumination.
It has a built-inn 6 V/ 30 W halogen lamp and provides contrast enhanced images for transparent specimens.

SZX2-ILLD
Transmitted-light stand for brightfield and darkfield.
It has a built-inn 6 V/ 30 W halogen lamp and can be switched between brightfield and darkfield illumination; which reduces background noise and improve contrast to resolve even the finest details.

SZX2-ILLB
The high-level transmitted-light stand for brightfield and oblique illumination.
Its high and low contrast selection provides clear, effective contrast and illumination.
Light intensity and color temperature are easily adjusted on 6 V/ 30 W halogen lamp
Used with a high-magnification objective, it permits the observation of extremely small details on highly contrasted structures; which particularly effective for C. elegans, oocytes, embryos.

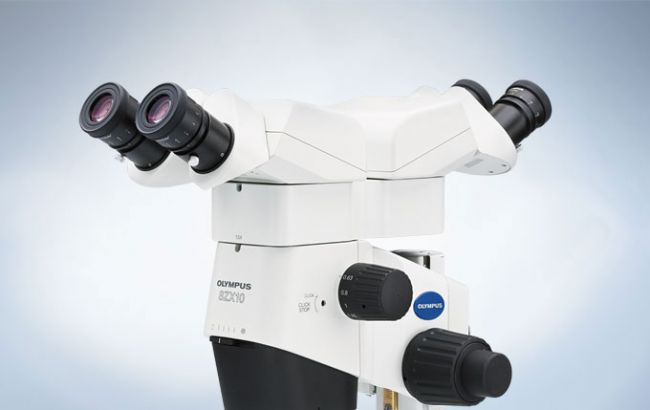

Discussion Tube

Face-to-face, discussion-style intermediate tube allows primary and secondary observers to sit opposite one another during specimen observation. The secondary observer can support primary observer more effectively in their tasks.
