The Olympus BX53-P polarizing microscope provides superb performance in polarized light applications using a combination of UIS2 infinity-corrected optics and a distinctive optical design. An extended line of compatible compensators make the BX53-P microscope versatile enough to handle observation and measuring applications in virtually any field.

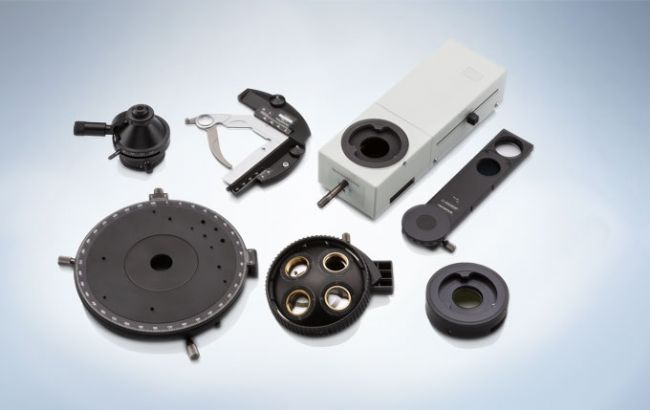

UIS2 Optics Provide Outstanding Expandability
Maximizing the advantages of infinity correction, the UIS2 optical system helps prevent the deterioration of optical microscope performance and eliminates magnification factors, even when polarizing elements, like analyzers, tint plates, or compensators, are introduced into the light path. The BX53-P microscope also accepts intermediate attachments available for BX3 series microscopes, as well as cameras and imaging systems.

Bertrand Lens for Conoscopic and Orthoscopic Observations

With a conoscopic observation attachment, switching between orthoscopic and conoscopic observation is simple. It is focusable for viewing of clear back focal plane interference patterns. The Bertrand lens is focusable for clear viewing back focal plane interference patterns. The field stop makes it possible to consistently obtain sharp conoscopic images.

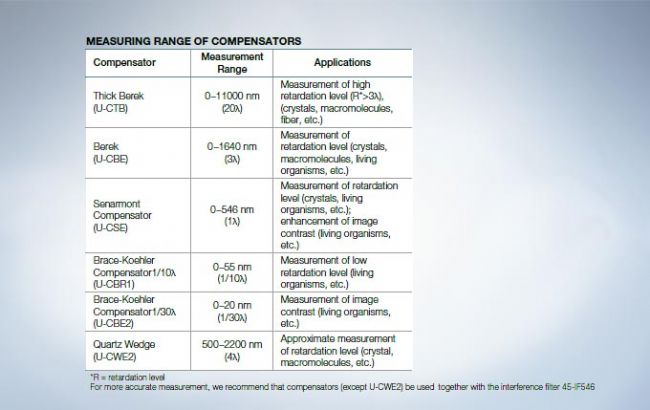

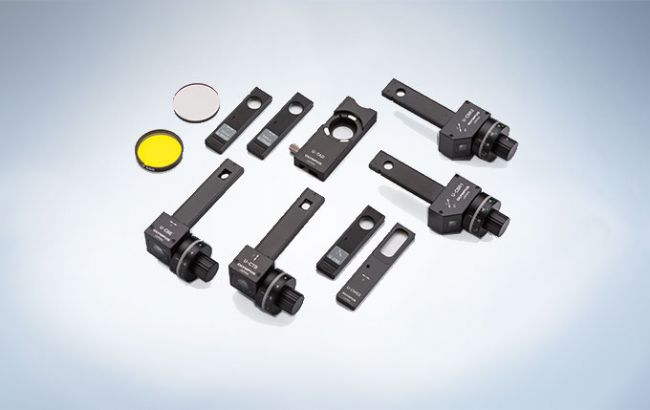

An Extensive Range of Compensators and Wave Plates
Six different compensators are available for measurements of birefringence in rock and mineral thin sections. Measurement retardation level ranges from 0 to 20λ. For easier measurement and high image contrast, Berek and Senarmont
compensators can be used, which change the retardation level in the entire field of view.

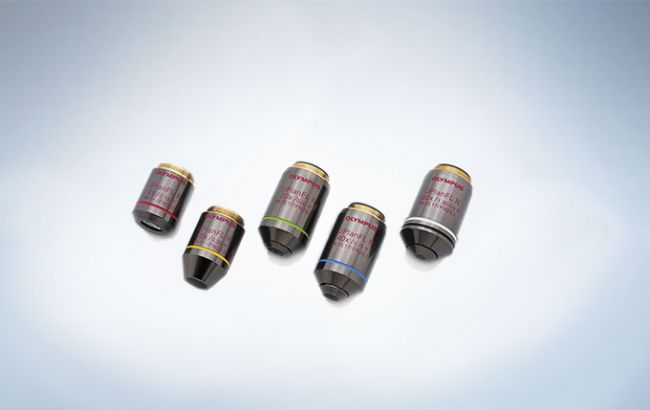

Minimal Strain Optics

Our polarized light objectives reduce internal strain to a minimum. This means a higher EF value, resulting in excellent image contrast.

Robust and Accurate Rotating Stage

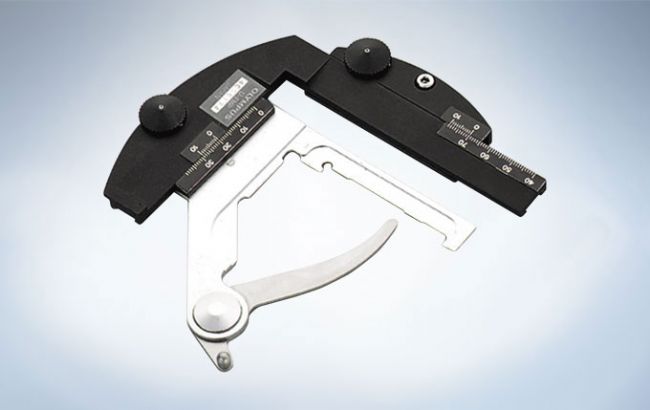

The rotating-centering mechanism attached to the rotary stage enables smooth rotation of a specimen. In addition, there is a click-stop mechanism at each 45 degrees for precise measurement. With the optional dual-mechanical stage, discreet X-Y movement is possible.
