Product Description
Applications

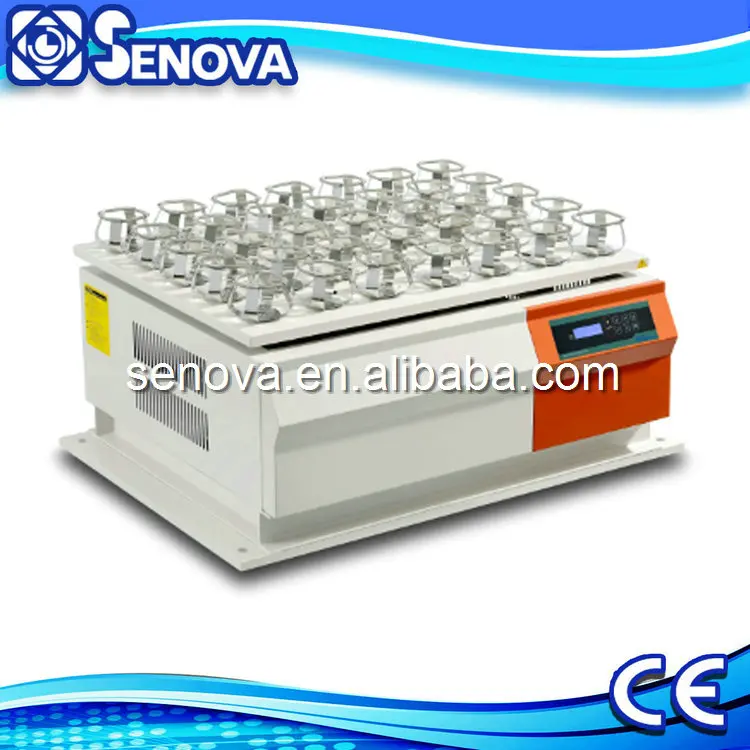

Floor Pharmaceutical Lab Bottle Rocking Shaker SFS-702 and SFS-704 is used in laboratory and pharmaceutical industry.
Main Features
- Single desk large capacity orbital flask shaker for pharmaceutical and chemical industry
- P.I.D. microprocessor control
- Powder coated steel construction with LCD display
- 8-segment adjustable programs for settings of different speed and time
- Automatic stop and start, timing, time display, power-off recovery and parameter memory
- Monitoring timer, independent over-speed acoustic and visual alarm, current leakage and over load protection
- Independent electricity leakage and over load protection without disrupting other equipments
- Single-shaft drive technology, quite and durable
- Key parts is made of precious chrome alloy, iron casting. World-class bearings
- Automatic memory of previous speed so as to accelerate the speed increasingly to the previous speed
- Slow-start circuit to prevent sudden start and liquid splash so as to ensure reagent safety
- Power-off protection for motor overheating and temperature out of control
- High precision frequency control system with accuracy +/-1rpm
- Large torque converter motor, maintenance-free for continuous working
Specifications
| Product |
Floor Pharmaceutical Lab Bottle Rocking Shaker |
| Model |
SFS-702 |
SFS-704 |
| Control |
P.I.D.(Environmental Scanning Microprocessor) |
| Display |
LCD |
| Program Control |
8 segments (adjustable by the user) |
| Safety Protection |
Automatic stop and start, timing, time display, power-off recovery, parameter memory |
| Auxiliary Function |
Monitoring timer, Independent over-speed acoustic/visual alarm,independent current leakage
and over-load protection
|
| Convection Mode |
Natural Convection |
| Oscillation Mode |
Revolution |
| Drive |
Single-shaft drive |
Multi-dimensional Drive |
| Working Environment |
Constant Room Temperature (Indoors) |
| Timing Range |
0-999.59 hr/Continuous |
| Speed Range(rpm) |
30-300 |
30-300 |
| Speed Accuracy |
±1rpm |
| Oscillation Amplitude |
∅50mm |
∅50mm |
| Tray Size(mm) |
840x620 |
1080x740 |
| Platformm Qty. |
1PC |
1PC |
| Net Weight |
200kg |
250kg |
|
Overall Dimensions
(DxWxH,mm)
|
900x650x480 |
1210x775x480 |
| Power |
150W |
280 |
| Power Supply |
AC 200-240V/50-60Hz. Optional: AC110V/60Hz |
Packing & Shipping
Shipment: By air courier, sea or air.
Standard package: Each unit is pack in a Plywood case with PET packing strip to protect the goods from external impact force during shipment.
Company Profile
With R&D and production base in Shanghai Premier Industry Zone as well as over 13 years of experience in international market for constant temperature laboratory equipment (thermal chamber including Floor Pharmaceutical Lab Bottle Rocking Shaker), Senova is the international sales center to serve our global distributors with both reliable products complying with international standard and after-sales service.
Photo: Factory Gate, Workshop and Office
Product Album
Senova constant temperature laboratory equipment
Exhibitions
We attend laboratory equipment exhibitions, shows and fairs both in China and outside China to meet our new and old customers worldwide.
Our Services
After-sales service
• Technical support for any enquiry for troubleshooting
• Quick supply of spare parts ensured
• Service training provided if necessary
Warranty and support
• 14-month standard warranty
• Prompt technical support and fast supply of spare parts from stock
• Maintaining stock for fast delivery of the goods for regular orders
• Opportunities for exclusive distributorship
• Enquiry forwarding
• New model and product launch
• Website download service of updated product information on brochures, price, etc.
• Special price support for big project
• Exclusive tender authorization offered upon request
• Provision of promotion material like product images and minimum brochures
• Demo units at special price
• Award discount policy
• Sales and service training
• Training material
• Electronic user & service manual
• Exhibitions cooperation
FAQ
1. Are you a factory or trading company ?
A : We are a factory with an international sales company specialized in support for global distributors. Please find our third-party factory audit (verfification) report shown above.
2 .Where is your company location ? How can we visit there ?
A :Our factory is in Shanghai, the most booming city in China , 20Km away from Shanghai Pudong International Airport. Welcome to visit us !
3. What certification do you have?
A : ISO 9001 and CE certificate.
