Hot selling Hand Wheel Vertical Autoclave Sterilizer BIOBASE

Product Description

Features:

Safety features

1. Over pressure, safety valve can automatically open to release pressure.

2. Over temperature, the system will power off automatically.

3. Door sensor. Sensor at door closing position, to check the door status. If door is open, operation will stop.

4. Anti-dry out function. If water level is too low, system will power off and error code displays on screen.

5. Over current, over voltage or electric leakage protection apparatus-air switch.

6. Door cover. The door is covered with safety shell made of thermal insulation material, which can protect operator

from burning by heat and looks nice.

Technical features:

1. Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs

automatically.

2. LED screen displays all steps of full process as well as error codes.

3. Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.

4. Adopting certain temperature (98~102℃) exhaust method and dynamic pulse exhaust method to completely

empty the cold air inside chamber for ensuring steam saturability.

5. Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.

6. Inner stainless steel water tank for water and steam to circulate inside. Steam does not exhaust during

sterilization, so as to keep the outside clean and dry.

7. Independent quick service window, easy for repairing and maintenance.

8. Water inlet filter to keep high water quality.

9. Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.

10. Optional printer for recording sterilization data.

Parameters:

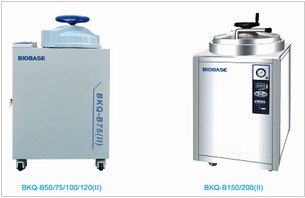

Model	BKQ-B50(II)	BKQ-B75(II)	BKQ-B100(II)	BKQ-B120(II)	BKQ-B150(II)	BKQ-B200(II)
Capacity	50L	75L	100L	120L	150L	200L
Chamber size(mm)	φ386×500	φ386×682	φ386×875	φ386×1055	φ500*760	φ500*1000
Chamber material	304 medical stainless steel
Max designed pressure	0.28Mpa
Max designed temp	150℃
Working pressure	0.175MPa				0.217MPa
Working temp.	105~136℃				50~134℃
Temp. accuracy	±0.1℃
Timing range	0~999min
Dynamic pulse exhaust times	0~9 times
Dynamic pulse exhaust temp.	105~134℃
Dissolution temp. range	60~100℃（programmable）
Temp. holding range	40~60℃（programmable）
Power supply	110/220V, 60/50Hz			220V, 50/60Hz	380V, 50Hz
Power consumption	4.4KW	4.7KW	5.2KW	5.2KW	6KW
SS basket	1 pc	2pcs	2pcs	3pcs	3 pcs		4pcs
External size(mm)	550x640x970	550x640x1070	550x640x1270	550x640x1370	7157201350		7157201550
Packing size(mm)	7657001150	7657001230	7567001450	7567001650	7608001500		7608001690
Gross weight	110kg	114kg	120kg	140kg	180kg		200kg

Introduction:

BIOBASE is a professional manufacturer of laboratory products since 1999.Our main products are Biosafety Cabinet(ClassI/II/III),Laminar Flow Cabinet,Fume Hood,BiochemistryAnalyzer,

Reagent,Autoclave and Incubator.We have more than 1000 employees and 20000 square meters production base.Our output per year reaches 10000 units.Pursuing the highest quality is the tenet of BIOBASE.We hope everyone will enjoy BIOBASE service to keep away from the infectious disease.

Certificates:

Company Exhibitions:

BIOBASE attend a lot of world famous exhibitions each year, such as Ameican FIME & Pittcon, Analytica, Analytica Latin America, Medica, AACC,Lab Asia, Arab Health, Arab Lab etc.

Production Line:

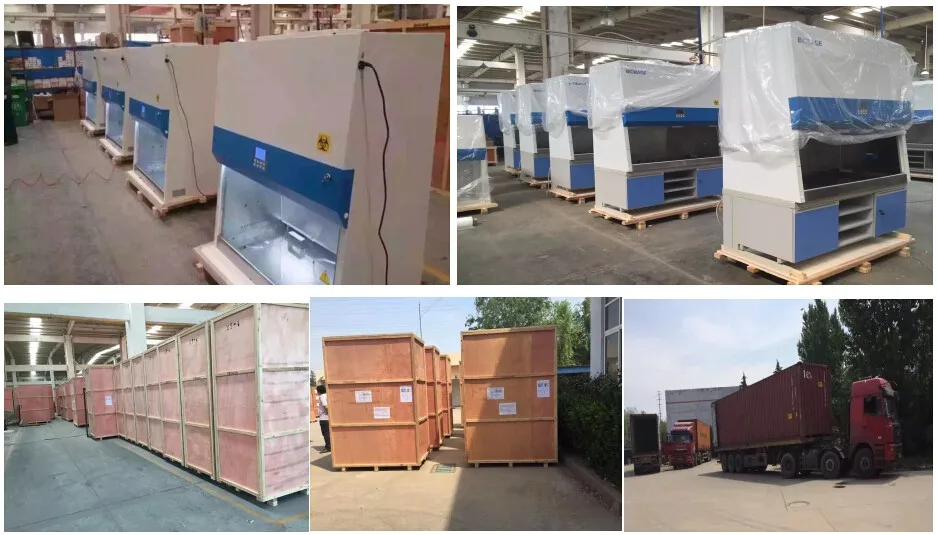

Packaging & Shipping
