Ideal for rapid checking of very large numbers of samples from PCR and cloning:

·Separates a maximum 1200 samples in as little as 15 minutes in 4 stacked horizontal gel trays

·Multichannel-compatible combs and gel plate configurations compatible with microplates and thermal cycler blocks ensure rapid loading of DNA minipreps and PCR products by 8-channel pipette

·Double-sided 1.5-mm-thick combs allow more sample volume to be loaded into each well

·Three gel tray options available in 8×6, 8×12 and 8x18cm (WxL) sizes for maximum flexibility

·Small footprint area reduces uptake of bench space within the laboratory

Product Description

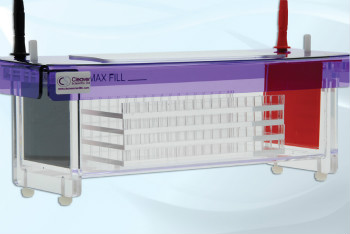

The MultiSUB-4 is a compact system capable of running a maximum 1200 samples simultaneously by stacking up to 4 horizontal gels. This achieves high sample throughput while maintaining the time and space saving advantages of a small, compact unit.

Each MultiSUB-4 is supplied with 4 gel trays and 8 combs as standard, while additional trays and combs may be purchased as required. Two double-sided comb and three tray length formats are also available. An optional flexicaster, either supplied separately or as a package with the MultiSUB-4, is also available that allows up to four 8×6, 8×12 and 8x18cm multiSUB-4 gel trays to be cast simultaneously outside the tank.

Variants:

CSL-MULTISUB4 – Multisub4, Multi-Level Gel Chamber, Includes 4x 18cm UV Trays, 8x 18/8 Sample 1.5mm Combs (Tape UV Trays To Seal)

CSL-MULTISUB4EXCAS – Multisub4, as above but with External Caster for 4 Gels
