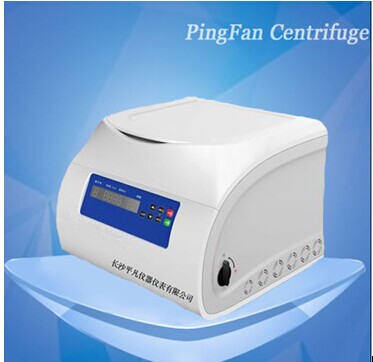

TG16-II PCR Centrifuges

Microprocessor control, digital display, free maintenance brushless motor or frequency, centrifugal force can be displayed.Door cover electronic and mechanical door lock linkage, stainless steel cavity, triple plate protection, low noise temperature.

Aircraft separation is good, smooth operation, safe and reliable. Can be widely used in biology, agricultural science and clinical research, especially for less sample, required a large centrifugal force experiments. In genetic engineering, protein nucleic acids can play a significant role in the study. Level and in structure and function of DNA, DNA enzyme reaction, gene fragments isolated embryo protein recovery experiments were applied.

Technical Data

Model	TG16-II
Max Speed	16000r/min
Max RCF	17800×g
Max Capacity	12×1.5/2ml
Speed Accuracy	±100r/min
Timer Range	0~99min
Motor	BrushlessMotor
Noise	≤65dB
Chamber Temp Rise	≤12°C
Power	AC 220V 50HZ 5A
Dimension	380×390×340 (L×W×H)mm
Weight	22kg

Optional Rotors:

Rotor No.	Description	Max. Speed	Max.RCF	Max.Capacity
No.1	Angle Rotor	16000	17800	12×1.5 ml
No.2	Angle Rotor	13000	17390	24×1.5 ml
No.3	Angle Rotor	12000	13700	12×10 ml
No.4	Angle Rotor	13000	17390	48×0.5 ml
No.5	Angle Rotor	13000	12850	8×5 ml
No.6	Angle Rotor	12000	13800	6×30ml
No.7	Angle Rotor	11000	12400	6×50ml
No.8	Angle Rotor	11000	14610	12×15 ml
No.9	Angle Rotor	12000	8438	12×7/24×1.5ml
No.10	Angle Rotor	13000	11400	10×5ml
No.11	PCR Stripe Rotor	12000	15350	6×8ml
No.12	Vertical Rotor	14000	16400	60×1.5/2ml

CHANGSHA PINGFAN INSTRUMENT AND METER CO., LTD, located at Changsha Wangchengpo Development Area, is a high-tech stock company modified from a state-run large-scale enterprise. It is the first enterprise of the same trade to get a certificate from China Quality Certification Center. With a history of nearly 30 years' professional design and manufacture of centrifugal machinery, Foreign trade sales have breakthrough million ，our company has accumulated rich assets for research and development with constant introduction and absorption of the latest techniques both home and abroad. Our company is the first to launch the new models of intelligent centrifuges, autobalancing centrifuges, super-capacity centrifuges, milk centrifuges, microspin filtering centrifuges, and blood thaw machinery. Our products are extensively applied in high education, agriculture, biochemical research, biochemical test, blood stations and blood banks, bioproducts, life science, genetic engineering, radioimmunology, environment protection, safe food, penal investigation and other fields. Our centrifuges are characterized by brushless motors with capacity of frequency conversion, inkling control by computers, users-friendly design of press buttons, and special combinations to reduce vibration. Every functional index of our products has reached the leading level of our country.
