Horizontal pressure steam sterilizer
Horizontal pressure steam sterilizer
Place of Origin:
Meditry Instrument Co.Ltd.
  • Product Detail
  • Company Profile

    Horizontal pressure steam sterilizer

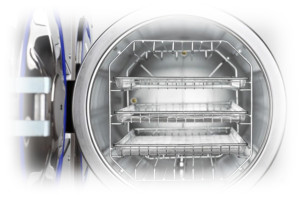

    This horizontal pressure sterilizer adopts the gravity displacement method to remove the cold air in the inner chamber, so that the cold air content of the steam in the inner chamber is less, and the sterilization is more reliable. At the same time, during the sterilization process of the equipment, the control system automatically adjusts the steam intake and exhaust steam according to the temperature of the inner room. It is mainly used in hospital supply rooms, operating rooms, pharmaceutical factories and scientific research laboratories and other units to sterilize medical and experimental cloth items, surgical instruments and utensils.
    1.Microcomputer controls the sterilization process, you do not need to manually monitor the sterilization process, and it is easy to operate.
    2. The whole sterilizer is made of stainless steel, which is easy to clean, anti-rust and durable. It has an airtight double-walled chamber. The large-capacity circular chamber provides enough space for sterilization.
    3. Automatic locking device for pressure safety door. When the pressure in the sterilization chamber is greater than 0.027MPa, the interlocking device will automatically start and the door cannot be opened
    4.Safety:Over pressure、over temperature protection device、auto pressure releas、lack water  protection、Over-current protection
    5. Jacket preheating (dual-cavity design), maintain temperature balance, with perfect drying function. And has the best sterilization function.
    6. With printer
    Technical parameter

    No Name MDW-150YDB MDW-200YDB MDW-280YDB
    1 Capacity 150L 200L 280L
    2 Dimension φ440×1000mm φ515×1000mm φ600×1000mm
    3 pressure 0.22MPa
    4 temperature 134℃
    5 Heat evenness ≤±2℃
    6 Adjustment of temperature 40~134℃
    7 Material 304 stainless steel
    8 Display LED display
    9 Timer range 1min~99min
    10 Dry timer range 1min~99min
    11 Safety Over pressure、over temperature protection device、auto pressure releas、lack water  protection、Overcurrent protection
    12 Power 9kw/380V 50Hz 12kw/380V 50Hz
    13 Exterior dimension 1400×650×1600 1400×750×1700 1520×910×1900
    14 Packing dimension 1560×860×1820 1560×910×1880 1680×1080×2100
    15 Net /Gross weight 430/340kg 436/350kg 570/462Kg
    We, Meditry Instrument Co., Ltd. is a supplier of quality scientific & laboratory instruments and is committed to supplying quality products and services to hospitals, universities, research institutes on life science/medical/agriculture/fisheries, quarantine agency, pharmaceutical companies through a dealer and distributor network worldwide. Its products include medical low temperature freezers, autoclaves, laboratory centrifuges, incubators, ovens, furnace, water baths, rotary evaporator, incubator shaker, spectrophotometer, orbital shakers, vortex mixers, magnetic stirrers, etc. We strive to offer customers a range of reliable products with the most competitive price. Furthermore, our prompt reaction and finest service are always our best support to customers.
    With years’ experience in business, Meditry Instrument Co., Ltd. has established a long-term business relationship with some reputed ISO9001: 2000-certified Chinese manufacturers in scientific & laboratory line. Based on it, the company is able to obtain the reliable products with competitive prices and help those small to medium-sized companies to purchase reliable scientific & laboratory products at considerable savings.
    We welcome all enterprises, domestic and foreign, to contact us for a mutually beneficial and fruitful cooperation.
