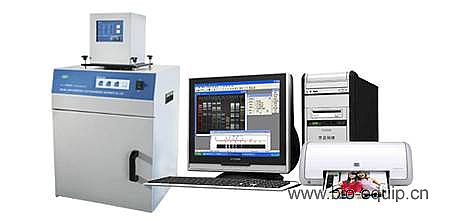

JY series Gel Imaging System is used to observe, take photos and analyze gel stripes after electrophoresis. Dim gel stripes than can't be judged by eyes are got in the light of CCD with high resolution and zoom lens. It follows filtering mirror to effectively filter the noise and optimumly control EB and leaking ultraviolet ray. Even it can magnify the gel result, store, mark, program, put the experimental reports in order, print and upload, reduce the operation process of users and get the result which is superior to common Thermal Cycler and the box to observe film.
Functions
Used to inspect, take photos, store and analyze the pictures of gel
Darkroom used for gel imaging, drawer –style platform is convenientto set, cut gel
Light sources：312nm, 254,365nm and white light
Viewing surface size:20cm×20cm
CCD(3million pixel),with filtering light mirror specialized in gel
With aperture(F1.2, 8-48mm), zoom camera lens with electric power
Using the Mouse to control such operation as aperture, zoom, focus,white balance
Automatically switching off 15minutes later without operation
With interface of USB graphs and control interface of RS232
Dimension(L×W×H): 47×38×81cm
Weight: 26.3Kg
