High Quality Jacketed Glass Reactor(Double Walled, GG3.3)
High Quality Jacketed Glass Reactor(Double Walled, GG3.3)
Place of Origin:
China
Brand:
Xi’an Taikang Biotechnology Co.,Ltd.
Model:
TFD
Supplier:
Xi'an Taikang Biotechnology Co.,Ltd
Price:
$6000
Hits:
3031
Updated:
8/8/2024
Related Products | Other Products | Related Suppliers
  • Product Detail
  • Company Profile

     1.Jacketed glass reactor/double walled
    2.Stainless steel frame, GG3.3 glass
    3.1L-100L capacity
    4.With condenser
    5.ISO,CE

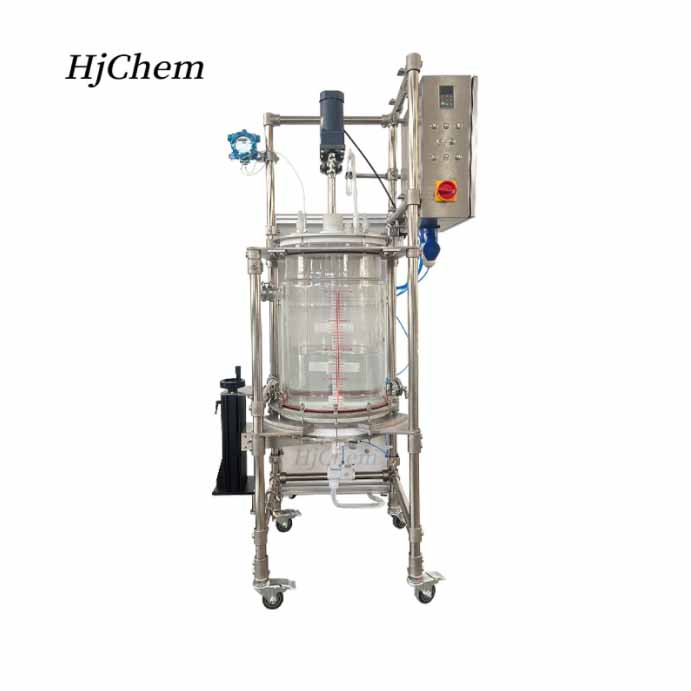

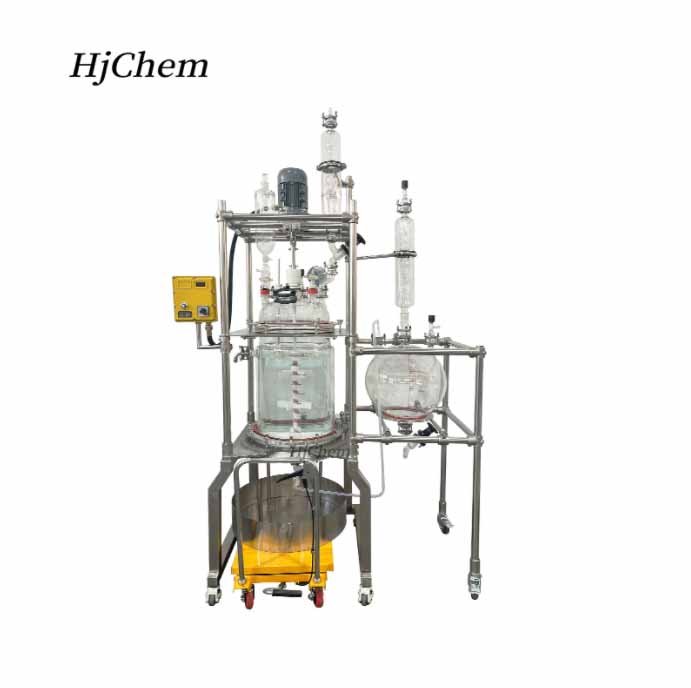

    High Quality Jacketed Glass Reactor/Double Walled



    Application:



    This glass reactor is a professional equipment for research and development. It is used for reactions under certain lights as photochemical catalyst in chemical synthesis, environmental and life science research, etc.



    The body of the reactor is similar to our jacket glass reactor and multifunctional glass reactor. So it can also be used for general chemical application for distillation, evaporation, extration, crystalization, refluxing, etc.



    Features:

    It is specially equipped with a mercury lamp and a 500W mercury lamp controller as standard configuration. The mercury lamp is in a jacketed layer which can keep the lamp cool when working by cooling liquids inside.



    Our product has a reasonable structure for easy operation and safe usage. The frame is made of stainless steel, the glass part is G3.3 glass. With a Teflon reactor cover on top, it performs better in corrrosion resistance.



    Technical Parameters:

    Model

    TFD-30L

    Rotation speed digital display

    Yes

    Capacity (L)

    30

    Frequency-converting

    Yes

    Flask necks

    6

    PTFE stirring rod

    Yes

    Stirring power (W)

    250

    Charging valve

    Yes

    Mixing torque

    (1300r/min)

    15000g.cm

    Thermometer tube

    Yes

    Rotation speed(rpm)

    100~1400

    Reflux condensing

    Yes

    Vacuum degree(Mpa)

    -0.098

    Discharging valve

    Yes

    Power (V)

    220

    Dropping system(1L)

    Yes

    Bottom discharging

    Yes

    Dimensions (mm)

    610*410*1900



    Parameters of the Glassware:

    Borosilicate  (Pyrex: G3.3)

    Chemical Composition (Weight%)

    SiO2

    80.7

    B2O5

    12.8

    Al2O3

    2.2

    CaO

    <0.6

    K2O  Na2O

    4.0

    Parameters

    Linear Expansivity

    a≤32*10^(-7)

    Thermal Shock Resistance (°C)

    270

    Softening (°C)

    820

    Anneal (°C)

    565

    Highest Temperature (°C)

    Continuous Use (°C)

    510



    Customization available for other kinds of lighting upon inquiry.

    bio-equip.cn
    Xi'an Tai Kang biotechnology established in 2004, we integrated development, production, sale and gained independent legal person qualifications for the integral whole comprehensive type company.our motto:Keep promise fame, heavy contract, provide high quality, the function excellent product.

    So Far, The company developed ten greatest serieses 40 kinds of products:Circulating the water type vacuum pump series, the low temperature pumps series circularly, Rotary evaporator series, vacuum dry box series, air drier series, Constant Temp Oil Bath/Water Bath series, Doubling pure water distillation instrument series, magnetic mixer series, vacuum freeze drier instrument series, Ultrasonic Purifer series, water bath series,Ultrosonic Extract Equipment Series, Incubator series, Sterilization Box Series, Shaker Series, Centrifuge Series,etc.. Those products mainly be used to Labrotary, Chemical Lab, Hospital, Chemical Industy, Minal industry,etc.the quality is high, competitive price .we mainly export to Europe, Asia, America,etc, and our products have covered of all provinces of china.

    The company absorbs an advanced technique at home and abroad, Developing a high-tech and new product active,we had a big competitive than any companies in line,.The company develops the stainless steel vacuum of the SBH-IIIA type of production to pump in 2002 211 engineering laboratories in the nation to reform in the engineering settle is medium mark and recommend a product, Shanghai replies university, Xian hands over greatly, northwest university, Xian unites university, the sun medicine section university, the foundation chemistry of the University of Zhejiang laboratory reformation in a row medium mark, in 2003 new area foundation chemistry set in the school Taipei First Boys School of the University of Zhejiang in a row medium mark.

    we will welcome to you for your procurement in all the world, and hope join in our team for common goal.
